Description

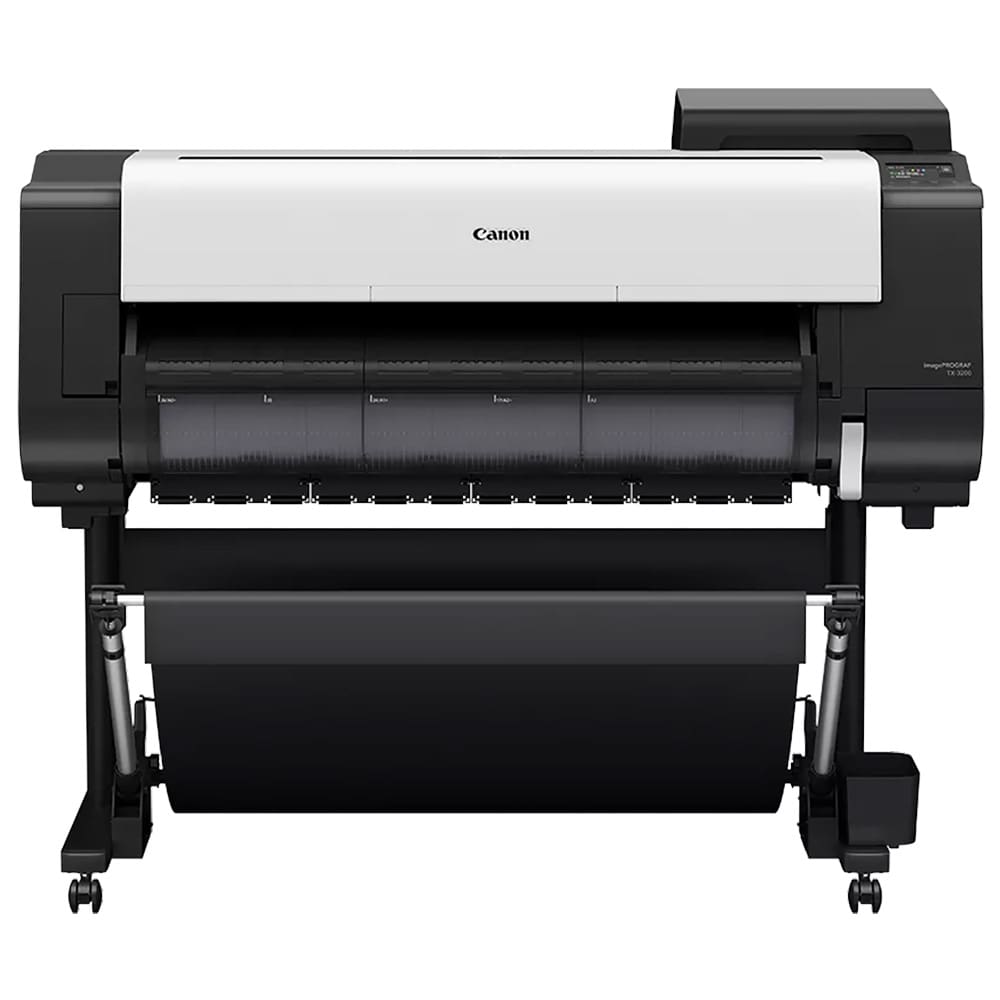

The Canon imagePROGRAF TX-3200 is a 36-inch, 5-color LUCIA TD pigment large format printer for CAD drawings, blueprints, AEC documentation, line drawings and posters. Canon rates it at up to 3.3 ANSI D prints per minute, and it includes a 500 GB encrypted hard drive, Gigabit Ethernet and Wi-Fi. DTG in Tampa, FL sells and supports it: call 813.889.0660 or 800.681.0024.
imagePROGRAF TX-3200
- 36″ Printer
- Up to 3.3 D-size pages per min*
- LUCIA TD 5-Color Pigment Ink System
- Optional Multifunction Roll Unit
- EPEAT Gold and Energy STAR registered
* 3.3 ANSI D prints/minute speed measured after first print in Fast Q5 mode, using plain paper. Print speed is based on internal testing. Print speed may vary depending on the number of copies selected, as well as on the settings for size, type, and orientation of paper.
Print with more confidence knowing Canon’s patented technology and advanced security features are on the job.
LUCIA TD Magenta Pigment Ink With updated magenta ink, the imagePROGRAF TX Series is designed to deliver outstanding red color reproduction suitable for a wide range of markets and applications when compared to previous models. The use of pigment ink for all colors helps to ensure prints are resistant to fading, making them ideal for poster output, but also provides water resistance for outdoor prints such as technical documents and line drawings.
Improved Line Clarity Image processing improvements and LUCIA TD ink help to enhance CAD drawings, blueprints, AEC documentation, and poster reproductions with a large color gamut and improved text and line quality when compared to the previous TX Series. This makes output more crisp, defined, and clear.
Color Calibration Now available in the imagePROGRAF TX Series, the ability to calibrate your printer helps ensure your output is color consistent over time and across multiple TX-3200/4200 devices.
Speed* At up to 3.3 D-size prints per minute and with quicker media loading by approximately 34 percent, these TX printers are faster than the previous models.
Ease of Use The imagePROGRAF TX Series has been built with production and efficiency in mind with a compact design, semi-translucent ink tank and media covers, an intuitive user interface screen, end-user installable printheads, maintenance cartridges, hot-swap ink tanks, and more! The user interface screen displays the ink and sub-ink tank levels, media indicator levels, and other setting prompts all on the home screen!
Intelligent Media Handling Once the media is loaded into the imagePROGRAF TX Series, the printer will automatically find the leading edge and feed the media. From there, the imagePROGRAF TX Series will automatically determine the media type, length, and width, which will be shown on the display panel.
Optional Multifunction Roll Unit The optional Multifunction Roll System can be used in two different ways. • Second media roll unit • Take-up reel
Security Features*** The imagePROGRAF TX Series large format printers come equipped with security features designed to help protect confidential information. Features include PIN Printing, selfencrypting hard drive, capabilities to disable the USB port, ethernet port, USB direct thumb drive, and more to help ensure peace of mind for the privacy of your documentation.
Environmentally Conscious Currently registered as EPEAT® Gold—a first in the imagePROGRAF TX Series— and as ENERGY STAR® certified, these large format printers are replacing EPS packaging materials with cardboard packaging and helping to reduce power consumption.
Canon TX-3200 specifications
| Print width | 36 in; roll and cut-sheet media from 6 to 36 in |
|---|---|
| Ink system | LUCIA TD pigment, 5 colors: Matte Black, Black, Cyan, Magenta, Yellow; tubing system with sub-tanks for continuous ink supply |
| Print speed | Up to 3.3 ANSI D prints per minute (Canon test: Fast Q5 mode, plain paper, measured after the first print) |
| Maximum resolution | 2400 x 1200 dpi |
| Print head and nozzles | PF-06; Matte Black 5,120 nozzles, other colors 2,560 nozzles each; 5 pl droplet |
| Replacement parts | PF-06 print head, MC-30 maintenance cartridge, CT-07 cutter blade and RU-32 multifunction roll system. |
| Ink tanks | Starter set: 160 mL Cyan, Yellow, Magenta and Black, 330 mL Matte Black. Replacement tanks: PFI-110/310/710 (Matte Black, Black, Cyan, Yellow) and PFI-111/311/711 (Magenta), 160/330/700 mL |
| Memory and storage | 2 GB RAM (128 GB virtual); 500 GB encrypted hard drive |
| Interfaces | Hi-Speed USB (B port), USB A port for thumb drive, Gigabit Ethernet, Wi-Fi 802.11 b/g/n |
| Media handling | One roll, front loading, front output; automatic horizontal rotary cutter; 2 in core with 3 in adapters; roll up to 6.7 in diameter; media 0.07 to 0.8 mm thick; optional Multifunction Roll System (RU-32) and TX Stacker or catch basket |
| Maximum print length | Roll 59 ft; cut sheet 63 in (varies by application, OS and RIP) |
| Print languages | SGRaster, HP-GL/2, HP RTL, PDF, JPEG, CALS G4 |
| Package size and weight | Main unit with stand and pallet: 64 x 35.6 x 40.7 in (W x D x H), approx. 337 lb |
| Efficiency | ENERGY STAR certified; EPEAT Gold |
| Warranty | Canon U.S.A. lists a 1-year warranty for the imagePROGRAF TX Series; the print head carries a separate Canon warranty |
Specifications as published by Canon U.S.A. (spec sheet and brochure; warranty per Canon’s U.S. warranty information), checked October 3, 2026. Specifications are subject to change without notice. PANTONE is a trademark of PANTONE LLC.
Who the Canon TX-3200 is for
The TX-3200 is for engineering, architecture, construction and other technical offices that print CAD drawings, blueprints and AEC documentation every day, and that also want color posters and signage from the same 36-inch printer. Add the optional multifunction roll system if you want a second roll or a take-up reel.
Canon TX-3200 FAQ
What is the Canon imagePROGRAF TX-3200 and what media widths does it print?
It is a 36-inch, 5-color LUCIA TD pigment printer with a PF-06 print head. Canon lists roll media from 6 to 36 inches wide and cut sheets up to 36 inches wide.
What ink does the TX-3200 use and where can I buy it?
It uses Canon pigment ink tanks in 160 mL, 330 mL and 700 mL sizes (PFI-110/310/710 for Matte Black, Black, Cyan and Yellow; PFI-111/311/711 for Magenta). You can shop Canon ink at DTG on our Canon ink page.
Is the TX-3200 good for CAD drawings and posters?
Yes. Canon positions the TX Series for CAD drawings, blueprints, AEC documentation, line drawings and posters, with a 0.1% line accuracy rating and a 0.02 mm minimum line weight on line-drawing media.
Does the TX-3200 come with a warranty, and are extended plans available?
Canon U.S.A. lists a 1-year warranty for the imagePROGRAF TX Series, and the print head has its own warranty. Extended Canon eCarePAK coverage options are listed on our warranties page, or call us and we will help you pick the right one.
How do I buy a TX-3200 or get support from DTG?
Call DTG (Digital Technology Group) in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online. We can help with ink, media and printer questions.
Newer Canon models
Canon’s newer generation of this series includes the imagePROGRAF TX-3300, imagePROGRAF TX-3310 MFP Z36, imagePROGRAF TX-4300, imagePROGRAF TX-4310 MFP Z36, imagePROGRAF TX-1300 MFP Z36.
