Sale!

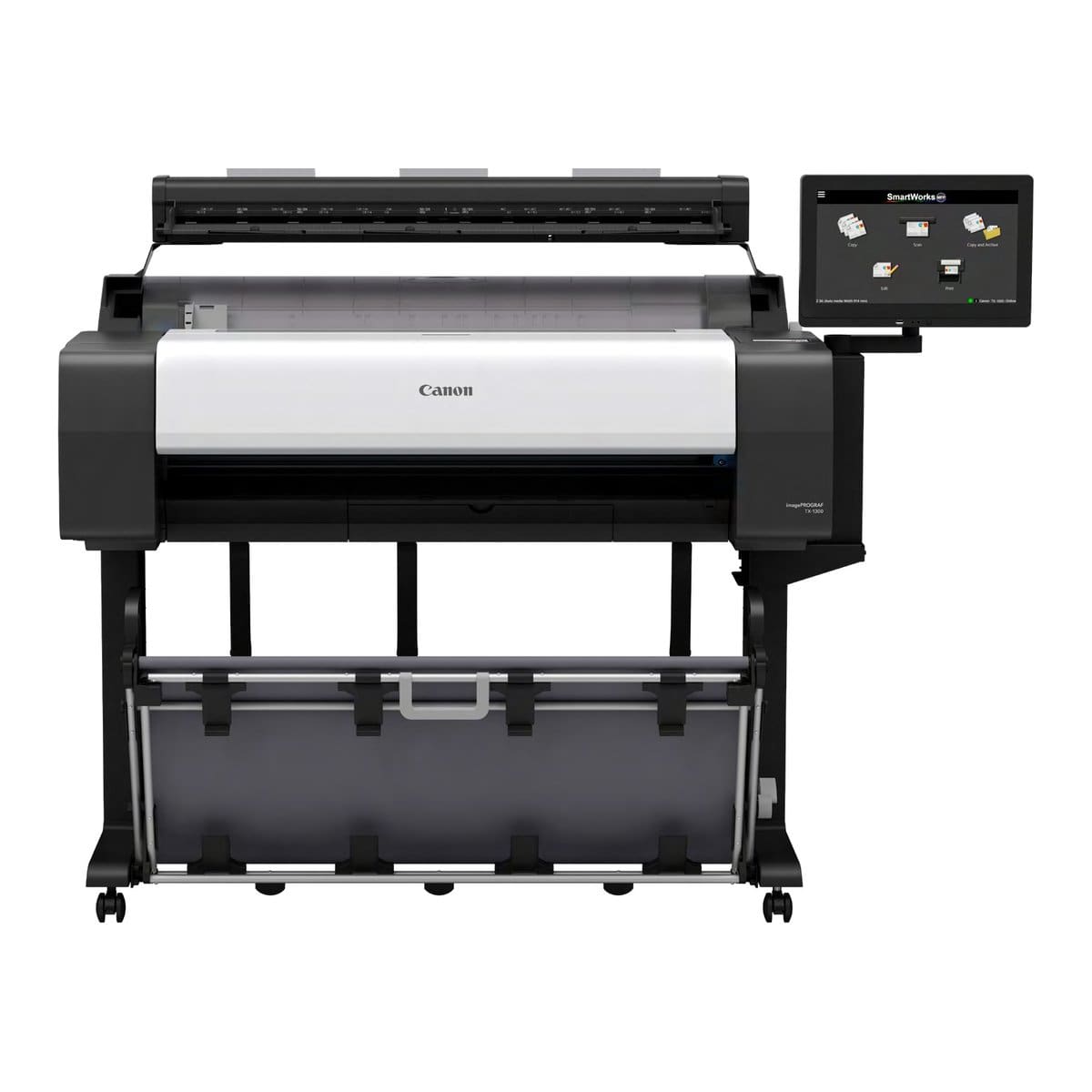

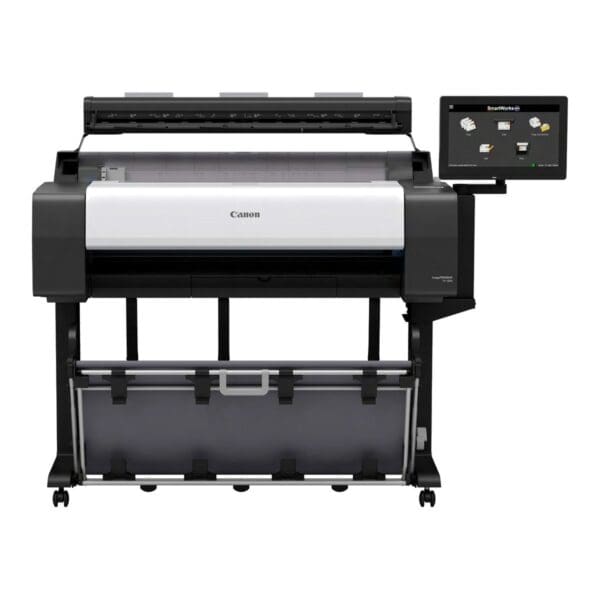

Canon imagePROGRAF TX-1300 MFP Z36 36″ Large Format Technical Printer

Original price was: $12,099.00.Current price is: $11,799.00. or finance as low as $235.98/monthApply Now

  • Up to 3.2 D-size (24″ x 36″) prints per minute (Canon, Fast Q5, plain paper)
  • 36-inch, 5-color LUCIA TD pigment ink with Canon’s new matte black
  • Z36 large-format scanner for scan, copy and file
  • Free toll-free tech support from DTG
  • Lease for as low as 1.99% through Canon Financial. Certain conditions apply.
What's Included?

In The Box

Printer, Stand with Flat Stacking Basket, Starter Ink Tanks BK/C/M/Y (90ml) MBK (130ml), 1 Printhead, Maintenance Cartridge (Installed), 2″ Roll Holder with 3″ Adapters, Installation Guide, User Registration Card, Printer Warranty Statement, Printhead Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, Safety and Environmental Information, iWR Service Terms Leaflet, USB port (High Speed), Power Cable and Screw, Gigabit Ethernet (Built-in); scanner box: Z36 Scanner with Power Cord, USB 3.0 Cable (2 m), 15.6″ System Controller, 3:1 Trident Power Cord, Power Supply, Mount for Printer and System Controller, (2) Paper Edge Guides, Document Return Guides, Calibration Target, Assembly and Startup Guide (per Canon U.S.A.)

Add to Wishlist
Add to Wishlist
SKU: 7669C012AA

Description

The Canon imagePROGRAF TX-1300 MFP Z36 prints up to 3.2 D-size (24″ x 36″) drawings per minute on plain paper, per Canon. It is a 36-inch, 5-color LUCIA TD pigment printer for CAD drawings, blueprints, GIS maps and posters. DTG in Tampa, FL sells, installs and supports it. Call DTG at 813.889.0660 or 800.681.0024.

How fast does the TX-1300 MFP Z36 print a D-size drawing?

Canon rates the TX-1300 MFP Z36 at up to 3.2 ANSI D prints per minute, measured after the first print in Fast Q5 mode on plain paper. Actual speed varies with copies, size, media type and orientation. Source: Canon U.S.A. TX-1300 MFP Z36 product page.

Scanning

Separate 36″ Z36 CIS scanner with 15.6″ touchscreen controller and SmartWorks MFP software: up to 13″ per second in monochrome and 3″ per second in 24-bit color at 200 dpi, color copy at 6″ per second, 1200 dpi maximum, media up to 38″ wide and up to 0.04″ (1.0 mm) thick.

TX-1300 MFP Z36 specifications

Print width 36″
D-size speed (Canon) Up to 3.2 D/min (Fast Q5, plain paper)
Ink 5-color LUCIA TD pigment: MBK, BK, C, M, Y
Starter ink 130 ml MBK and 90 ml BK/C/M/Y starter tanks
Replacement ink 130 ml or 300 ml tanks (PFI-120/121/123, PFI-320/321/323)
Printhead PF-06, 15,360 nozzles (MBK 5,120; others 2,560 each), 2400 x 1200 dpi
Media 8″ to 36″ roll and cut sheet, 0.07-0.8 mm thick
Max roll diameter 5.9″ (150 mm)
Storage 256 GB hard disk
Output stand with flat stacking basket included
Printer dimensions / weight 50.6″ x 34.8″ x 41.7″ with basket open; 149.9 lbs. (printer); Z36 scanner 42″ x 10″ x 7″, 17.3 lbs.
Configuration Printer with Z36 scanner, stand and flat stacking basket

Canon TX-1300 MFP Z36 FAQ

What ink does the TX-1300 MFP Z36 use?

It uses Canon’s 5-color LUCIA TD pigment ink (MBK, BK, C, M, Y). Out of the box you get 130 ml MBK and 90 ml BK/C/M/Y starter tanks. Replacement tanks: 130 ml or 300 ml tanks (PFI-120/121/123, PFI-320/321/323). You’ll find them on our Canon ink page.

What paper sizes and roll sizes does the TX-1300 MFP Z36 take?

Canon lists 8″ to 36″ roll and cut sheet, 0.07-0.8 mm thick, with rolls up to 5.9″ (150 mm) outside diameter.

Does the TX-1300 MFP Z36 come with a stand?

Yes. Per Canon, this configuration is the printer with Z36 scanner, stand and flat stacking basket.

Which print head does the TX-1300 MFP Z36 use?

It uses the PF-06 printhead: 15,360 nozzles (MBK 5,120; others 2,560 each), up to 2400 x 1200 dpi.

How do I buy a TX-1300 MFP Z36 or get help with one?

Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online. We’ll help you pick the right size, set it up, and keep you stocked on ink and paper.

Why buy the TX-1300 MFP Z36 from DTG

DTG is an authorized Canon imagePROGRAF dealer in Tampa, FL. We help you pick the right technical printer for your drawing volume, set it up, and support it with ink, media and service. Call DTG at 813.889.0660 or 800.681.0024.

Specifications from Canon U.S.A.: TX-1300 MFP Z36 spec sheet. Specifications subject to change by Canon.
