Sale!

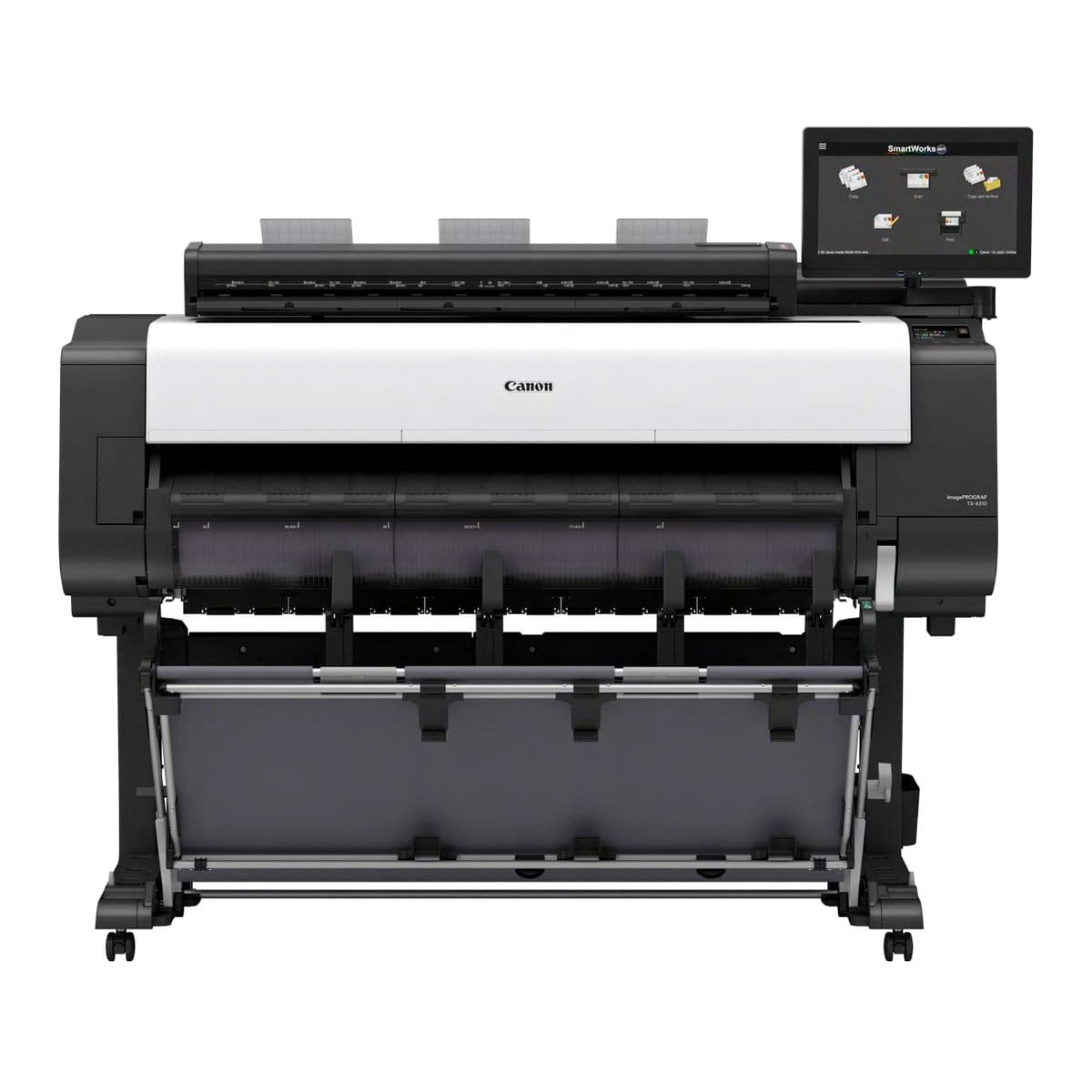

Canon imagePROGRAF TX-4310 MFP Z36 44″ Large Format Technical Printer

Original price was: $22,560.00.Current price is: $13,299.00. or finance as low as $265.98/monthApply Now

  • Up to 3.3 D-size (24″ x 36″) prints per minute (Canon, Fast Q5, plain paper)
  • 44-inch, 5-color LUCIA TD pigment ink with Canon’s new matte black
  • Z36 large-format scanner for scan, copy and file
  • Free toll-free tech support from DTG
  • Lease for as low as 1.99% through Canon Financial. Certain conditions apply.
What's Included?

In The Box

Main Unit, Z36 Scanner, 15.6″ System Controller, Stand, SS-41 Stacker, 1 Print Head, Starter Ink Tanks MBK/BK/C/M/Y (330ml), 1 Maintenance Cartridge (Installed), 2″ Roll Holder with 3″ Adapters, Installation Guide, User Registration Card, Printer Warranty Statement, Print Head Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, iWR Service Terms Leaflet, Safety and Environmental Information, USB port (High Speed), Power Cable & Screw, Gigabit Ethernet (Built-In) (per Canon U.S.A.)

Add to Wishlist
Add to Wishlist
SKU: 8510C013AA

Description

The Canon imagePROGRAF TX-4310 MFP Z36 prints up to 3.3 D-size (24″ x 36″) drawings per minute on plain paper, per Canon. It is a 44-inch, 5-color LUCIA TD pigment printer for CAD drawings, blueprints, GIS maps and posters. DTG in Tampa, FL sells, installs and supports it. Call DTG at 813.889.0660 or 800.681.0024.

How fast does the TX-4310 MFP Z36 print a D-size drawing?

Canon rates the TX-4310 MFP Z36 at up to 3.3 ANSI D prints per minute, measured after the first print in Fast Q5 mode on plain paper. Actual speed varies with copies, size, media type and orientation. Source: Canon U.S.A. TX-4310 MFP Z36 product page.

Scanning

Separate 36″ Z36 CIS scanner with 15.6″ touchscreen controller and SmartWorks MFP software: up to 13″ per second in monochrome and 3″ per second in 24-bit color at 200 dpi, color copy at 6″ per second, 1200 dpi maximum, media up to 38″ wide and up to 0.04″ (1.0 mm) thick.

TX-4310 MFP Z36 specifications

Print width 44″
D-size speed (Canon) Up to 3.3 D/min (Fast Q5, plain paper)
Ink 5-color LUCIA TD pigment: MBK, BK, C, M, Y
Starter ink 330 ml MBK/BK/C/M/Y starter tanks
Replacement ink 160, 330 or 700 ml tanks (PFI-110/111/113, PFI-310/311/313, PFI-710/711/713; Canon notes 700 ml is for service-authorized partners)
Printhead PF-06, 15,360 nozzles (MBK 5,120; others 2,560 each), 2400 x 1200 dpi
Media 6″ to 44″ roll and cut sheet, 0.07-0.8 mm thick
Max roll diameter 6.7″ (170 mm)
Storage 256 GB encrypted hard drive
Output SS-41 Stacker included; optional RU-44 Multifunction Roll System
Printer dimensions / weight 62.7″ x 44.2″ x 46.0″ with stacker closed; 273.4 lbs. (printer)
Configuration Printer with Z36 scanner, stand and SS-41 Stacker

Canon TX-4310 MFP Z36 FAQ

What ink does the TX-4310 MFP Z36 use?

It uses Canon’s 5-color LUCIA TD pigment ink (MBK, BK, C, M, Y). Out of the box you get 330 ml MBK/BK/C/M/Y starter tanks. Replacement tanks: 160, 330 or 700 ml tanks (PFI-110/111/113, PFI-310/311/313, PFI-710/711/713; Canon notes 700 ml is for service-authorized partners). You’ll find them on our Canon ink page.

What paper sizes and roll sizes does the TX-4310 MFP Z36 take?

Canon lists 6″ to 44″ roll and cut sheet, 0.07-0.8 mm thick, with rolls up to 6.7″ (170 mm) outside diameter.

Does the TX-4310 MFP Z36 come with a stand?

Yes. Per Canon, this configuration is the printer with Z36 scanner, stand and SS-41 Stacker.

Which print head does the TX-4310 MFP Z36 use?

It uses the PF-06 printhead: 15,360 nozzles (MBK 5,120; others 2,560 each), up to 2400 x 1200 dpi.

How do I buy a TX-4310 MFP Z36 or get help with one?

Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online. We’ll help you pick the right size, set it up, and keep you stocked on ink and paper.

Why buy the TX-4310 MFP Z36 from DTG

DTG is an authorized Canon imagePROGRAF dealer in Tampa, FL. We help you pick the right technical printer for your drawing volume, set it up, and support it with ink, media and service. Call DTG at 813.889.0660 or 800.681.0024.

Specifications from Canon U.S.A.: TX-4310 MFP Z36 spec sheet. Specifications subject to change by Canon.
