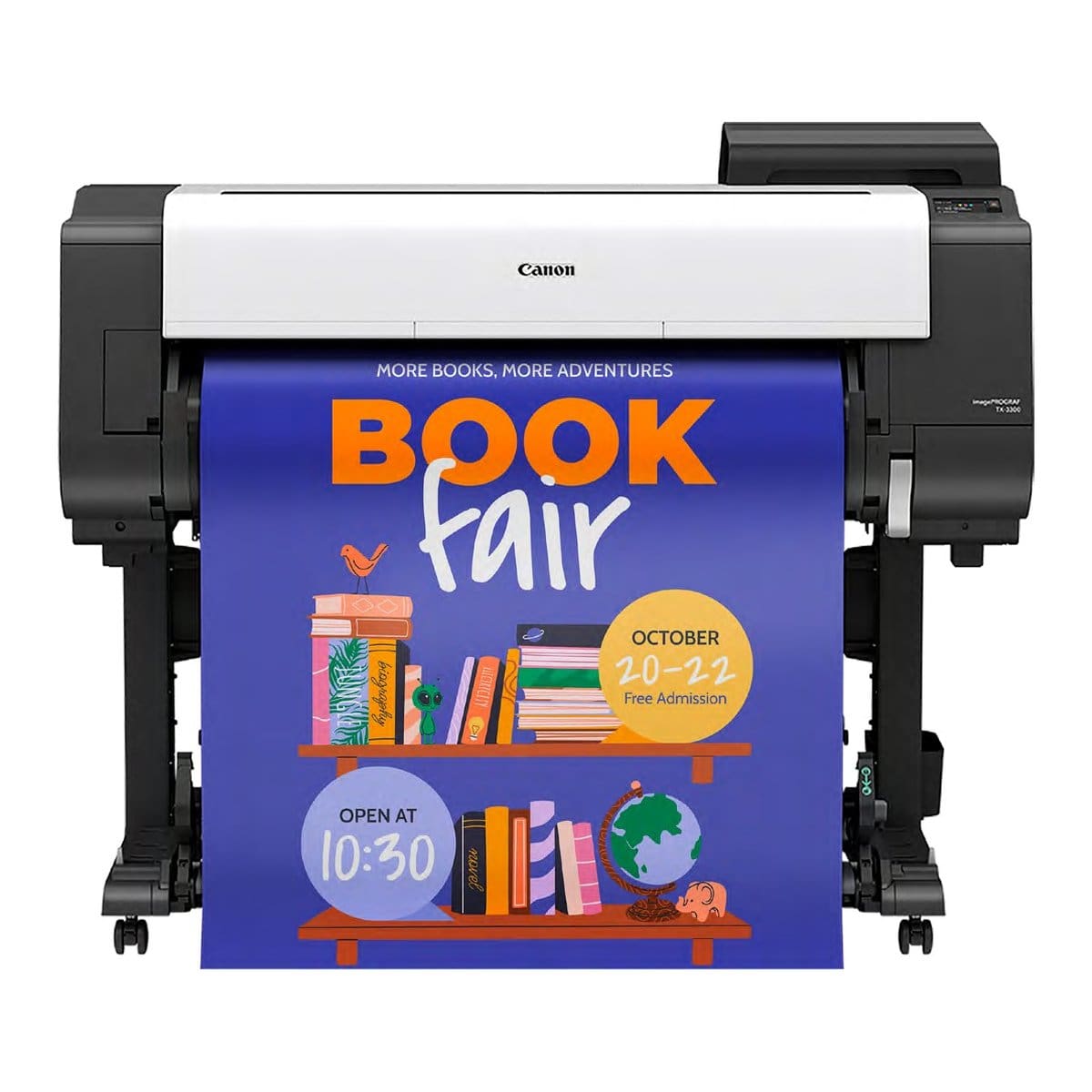

Canon imagePROGRAF TX-3300 36″ Large Format Technical Printer

Original price was: $12,248.00.Current price is: $7,240.00. or finance as low as $217.20/monthApply Now

  • Up to 3.3 D-size (24″ x 36″) prints per minute (Canon, Fast Q5, plain paper)
  • 36-inch, 5-color LUCIA TD pigment ink with Canon’s new matte black
  • TX Stacker included; optional RU-34 Multifunction Roll System
  • Free toll-free tech support from DTG
  • Lease for as low as 1.99% through Canon Financial. Certain conditions apply.
What's Included?

In The Box

Main Unit, Stand, TX Stacker SS-31, 1 Print Head, Starter Ink Tanks BK/C/M/Y (160ml) MBK (330ml), 1 Maintenance Cartridge (Installed), 2″ Roll Holder with 3″ Adapters, Installation Guide, User Registration Card, Printer Warranty Statement, Print Head Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, iWR Service Terms Leaflet, Safety and Environmental Information, USB port (High Speed), Power Cable & Screw, Gigabit Ethernet (Built-In) (per Canon U.S.A.)

Add to Wishlist
Add to Wishlist
SKU: 7572C011AA

Description

The Canon imagePROGRAF TX-3300 prints up to 3.3 D-size (24″ x 36″) drawings per minute on plain paper, per Canon. It is a 36-inch, 5-color LUCIA TD pigment printer for CAD drawings, blueprints, GIS maps and posters. DTG in Tampa, FL sells, installs and supports it. Call DTG at 813.889.0660 or 800.681.0024.

How fast does the TX-3300 print a D-size drawing?

Canon rates the TX-3300 at up to 3.3 ANSI D prints per minute, measured after the first print in Fast Q5 mode on plain paper. Actual speed varies with copies, size, media type and orientation. Source: Canon U.S.A. TX-3300 product page.

TX-3300 specifications

Print width 36″
D-size speed (Canon) Up to 3.3 D/min (Fast Q5, plain paper)
Ink 5-color LUCIA TD pigment: MBK, BK, C, M, Y
Starter ink 330 ml MBK and 160 ml BK/C/M/Y starter tanks
Replacement ink 160, 330 or 700 ml tanks (PFI-110/111/113, PFI-310/311/313, PFI-710/711/713; Canon notes 700 ml is for service-authorized partners)
Printhead PF-06, 15,360 nozzles (MBK 5,120; others 2,560 each), 2400 x 1200 dpi
Media 6″ to 36″ roll and cut sheet, 0.07-0.8 mm thick
Max roll diameter 6.7″ (170 mm)
Storage 256 GB encrypted hard drive
Output TX Stacker included; optional RU-34 Multifunction Roll System
Printer dimensions / weight 54.7″ x 44.2″ x 46″ with stacker closed; 253.5 lbs.
Configuration Printer with stand and TX Stacker

Canon TX-3300 FAQ

What ink does the TX-3300 use?

It uses Canon’s 5-color LUCIA TD pigment ink (MBK, BK, C, M, Y). Out of the box you get 330 ml MBK and 160 ml BK/C/M/Y starter tanks. Replacement tanks: 160, 330 or 700 ml tanks (PFI-110/111/113, PFI-310/311/313, PFI-710/711/713; Canon notes 700 ml is for service-authorized partners). You’ll find them on our Canon ink page.

What paper sizes and roll sizes does the TX-3300 take?

Canon lists 6″ to 36″ roll and cut sheet, 0.07-0.8 mm thick, with rolls up to 6.7″ (170 mm) outside diameter.

Does the TX-3300 come with a stand?

Yes. Per Canon, this configuration is the printer with stand and TX Stacker.

Which print head does the TX-3300 use?

It uses the PF-06 printhead: 15,360 nozzles (MBK 5,120; others 2,560 each), up to 2400 x 1200 dpi.

How do I buy a TX-3300 or get help with one?

Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online. We’ll help you pick the right size, set it up, and keep you stocked on ink and paper.

Why buy the TX-3300 from DTG

DTG is an authorized Canon imagePROGRAF dealer in Tampa, FL. We help you pick the right technical printer for your drawing volume, set it up, and support it with ink, media and service. Call DTG at 813.889.0660 or 800.681.0024.

Specifications from Canon U.S.A.: TX-3300 spec sheet. Specifications subject to change by Canon.
