Description

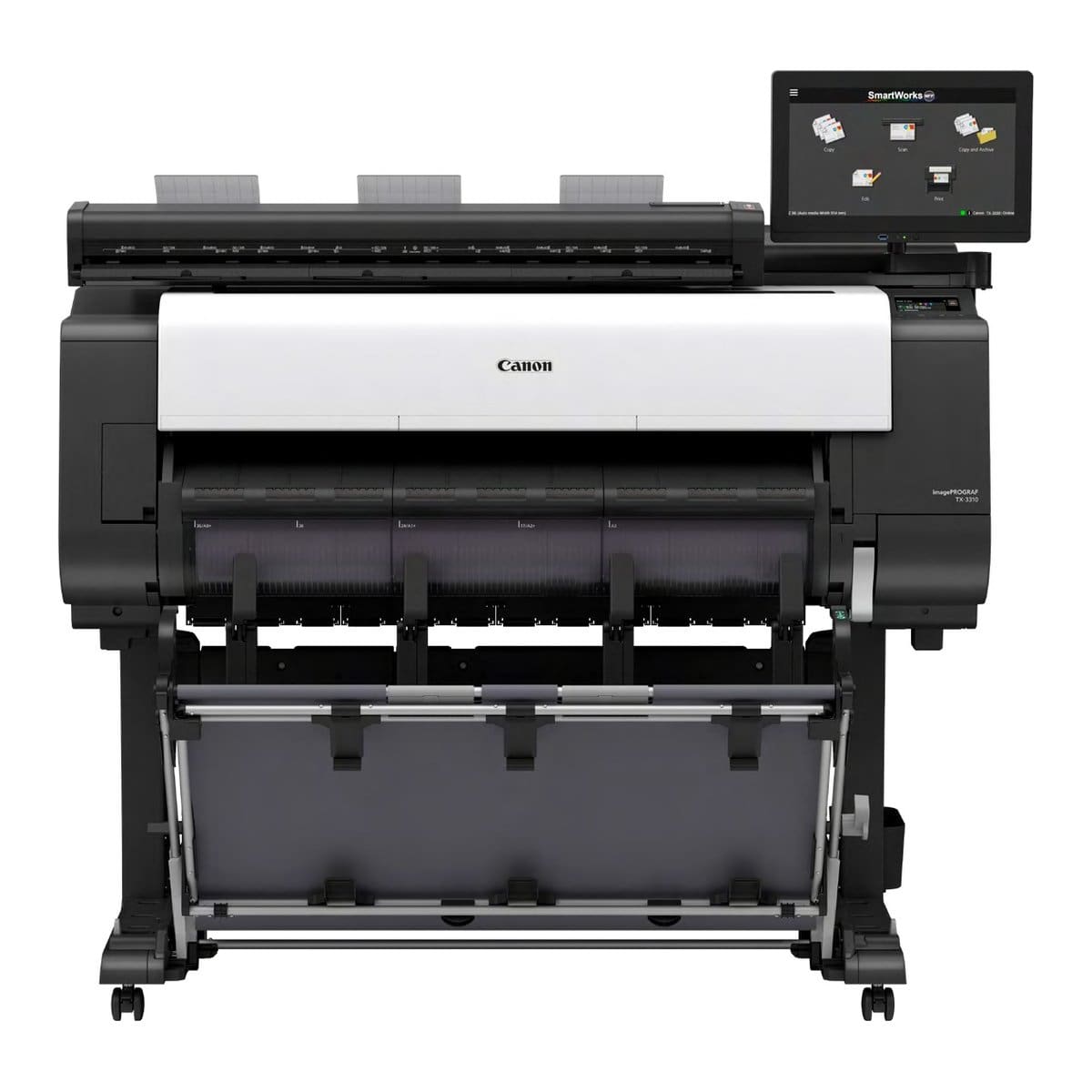

The Canon imagePROGRAF TX-3310 MFP Z36 prints up to 3.3 D-size (24″ x 36″) drawings per minute on plain paper, per Canon. It is a 36-inch, 5-color LUCIA TD pigment printer for CAD drawings, blueprints, GIS maps and posters. DTG in Tampa, FL sells, installs and supports it. Call DTG at 813.889.0660 or 800.681.0024.
How fast does the TX-3310 MFP Z36 print a D-size drawing?
Canon rates the TX-3310 MFP Z36 at up to 3.3 ANSI D prints per minute, measured after the first print in Fast Q5 mode on plain paper. Actual speed varies with copies, size, media type and orientation. Source: Canon U.S.A. press release, Sept. 15, 2026 (up to 3.3 sheets/min, A1 landscape plain paper, fastest settings) and TX-3300 product page.
Scanning
Separate 36″ Z36 CIS scanner with 15.6″ touchscreen controller and SmartWorks MFP software: up to 13″ per second in monochrome and 3″ per second in 24-bit color at 200 dpi, color copy at 6″ per second, 1200 dpi maximum, media up to 38″ wide and up to 0.04″ (1.0 mm) thick.
TX-3310 MFP Z36 specifications
| Print width | 36″ |
| D-size speed (Canon) | Up to 3.3 D/min (Fast Q5, plain paper) |
| Ink | 5-color LUCIA TD pigment: MBK, BK, C, M, Y |
| Starter ink | 330 ml MBK and 160 ml BK/C/M/Y starter tanks |
| Replacement ink | 160, 330 or 700 ml tanks (PFI-110/111/113, PFI-310/311/313, PFI-710/711/713; Canon notes 700 ml is for service-authorized partners) |
| Printhead | PF-06, 15,360 nozzles (MBK 5,120; others 2,560 each), 2400 x 1200 dpi |
| Media | 6″ to 36″ roll and cut sheet, 0.07-0.8 mm thick |
| Max roll diameter | 6.7″ (170 mm) |
| Storage | 256 GB encrypted hard drive |
| Output | TX Stacker included; optional RU-34 Multifunction Roll System |
| Printer dimensions / weight | 54.7″ x 44.2″ x 46″ with stacker closed; 253.5 lbs. (printer) |
| Configuration | Printer with Z36 scanner, stand and TX Stacker |
Canon TX-3310 MFP Z36 FAQ
What ink does the TX-3310 MFP Z36 use?
It uses Canon’s 5-color LUCIA TD pigment ink (MBK, BK, C, M, Y). Out of the box you get 330 ml MBK and 160 ml BK/C/M/Y starter tanks. Replacement tanks: 160, 330 or 700 ml tanks (PFI-110/111/113, PFI-310/311/313, PFI-710/711/713; Canon notes 700 ml is for service-authorized partners). You’ll find them on our Canon ink page.
What paper sizes and roll sizes does the TX-3310 MFP Z36 take?
Canon lists 6″ to 36″ roll and cut sheet, 0.07-0.8 mm thick, with rolls up to 6.7″ (170 mm) outside diameter.
Does the TX-3310 MFP Z36 come with a stand?
Yes. Per Canon, this configuration is the printer with Z36 scanner, stand and TX Stacker.
Which print head does the TX-3310 MFP Z36 use?
It uses the PF-06 printhead: 15,360 nozzles (MBK 5,120; others 2,560 each), up to 2400 x 1200 dpi.
How do I buy a TX-3310 MFP Z36 or get help with one?
Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online. We’ll help you pick the right size, set it up, and keep you stocked on ink and paper.
Why buy the TX-3310 MFP Z36 from DTG
DTG is an authorized Canon imagePROGRAF dealer in Tampa, FL. We help you pick the right technical printer for your drawing volume, set it up, and support it with ink, media and service. Call DTG at 813.889.0660 or 800.681.0024.
Specifications from Canon U.S.A.: TX-3310 MFP Z36 spec sheet. Specifications subject to change by Canon.


Canon imagePROGRAF TX Series Brochure with Specifications (PDF)
