Description
The Canon imagePROGRAF TM-250 is a 24-inch, 5-color pigment large format printer for CAD documents, posters and signage, rated by Canon at up to 2.9 D-size prints per minute. It prints roll and cut-sheet media from 8 to 24 inches wide and uses 130 mL or 300 mL ink tanks. DTG in Tampa, FL sells and supports it: call 813.889.0660 or 800.681.0024.

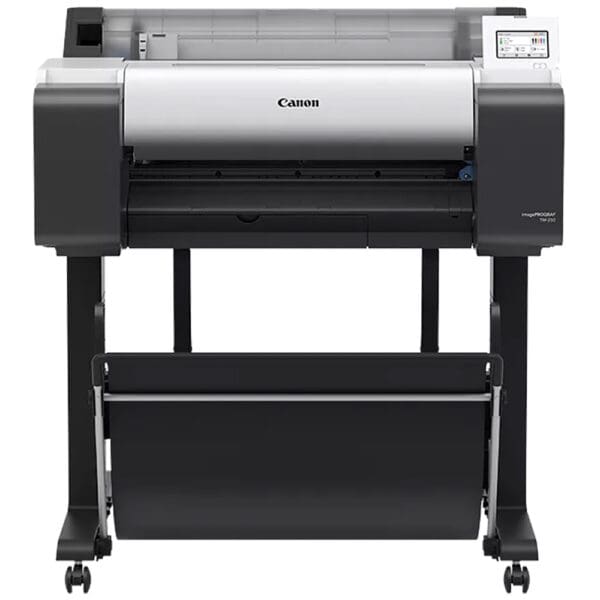

imagePROGRAF TM-250 24-inch large format printer for technical, graphics, & CAD applications

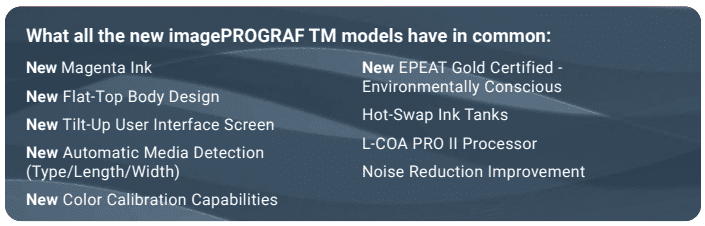

The Canon TM series of printers are all very similar in their core design and features. Choose from the Canon TM-240/340, TM-250/350, and TM-355 models. All of these base model configurations also have multi format scanning options as well. They all feature the same pigment based inkset configuration of cyan, magenta, yellow, black and matte black with a newly formulated magenta for wider color gamut prints. The Canon TM-240 and TM-250 models are 24″ wide printers while the TM-340, TM-350, and TM-355 are 36″ wide printers.
The Canon imagePROGRAF TM-240 24″ wide printer, and TM-340 36″ wide printer are considered entry level large format technical printers meant for the lower volume user who does not print multiple times a day. They features smaller, 55ml ink tanks, and will not be as fast as the other series Canon printers. The imagePrograf TM-250, TM-350, and TM-355 printers utilize your choice of 130ml or 300ml ink cartridges and are a little bit faster than the TM-240 series printers. The larger ink tanks are not only convenient but also lower your cost per ml of ink. Shop for all Canon TM-250 inks here.
The Canon TM-250 printer’s closest competitor with Epson would be the SureColor T3475. The fundamental difference between the Epson & Canon large format printers is the printhead technology. The Epson features piezo print heads and the Canon features thermal print heads. There are pro’s and con’s between each technology including print consistency, maintenance, longevity, and ease of replacing the printheads should they fail.
All of these Canon large format technical printers feature user-replaceable printheads for easy maintenance and high quality printing years down the road. They also include the best bundled software solution in the market including PosterArtis, Accounting Manager, Free Layout Plus and more. Canon TM series printers are also compatible with our Mirage RIP software allowing you to easily nest images, step-and-repeat, tile, and print PDFs quickly and easily.
Redefining what is possible with a large format printer, the TM Series printers offer enhanced productivity, efficiency, and usability over the previous generation of the imagePROGRAF TM & TA series printers. The imagePROGRAF TM-250 is great for low-volume users in small spaces printing posters, CAD documents, signage, and more with vivid color reproduction with newly formulated magenta ink & color calibration. The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, full-frontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, automatic media detection indicator levels, and more setting prompts all on the home screen! Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR® certified, this series is replacing EPS packaging materials with cardboard packaging. Plus, there is a host of creative workflow software included, such as, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more, to help with your everyday personal and business needs!
See more details in how these Canon TM series technical printers compare in the below chart.
The Canon imagePROGRAF TM-250 printer comes with a 2-year limited warranty from Canon (the print head carries a separate Canon warranty). You can also purchase an additional 1 year or 2 year extended warranty. Shop for Canon TM-250 warranties here.
Canon TM-250 specifications
| Print width | 24 in; roll and cut-sheet media from 8 to 24 in (203.2 to 610 mm) |
|---|---|
| Ink system | Pigment, 5 colors: Matte Black, Black, Cyan, Magenta, Yellow |
| Print speed | Up to 2.9 D-size prints per minute (Canon) |
| Maximum resolution | 2,400 x 1,200 dpi |
| Print head and nozzles | PF-06; 15,360 nozzles in total (Matte Black 5,120, other colors 2,560 each); 5 pl droplet |
| Replacement parts | PF-06 print head, CT-08 cutter blade, RH2-28 roll holder set and MC-31 maintenance cartridge. |
| Ink tanks | Starter set: Matte Black 130 mL; Black, Cyan, Magenta, Yellow 90 mL. Replacement tanks: 300 mL (PFI-320/PFI-321) or 130 mL (PFI-120/PFI-121) |
| Memory and storage | 2 GB RAM; no hard drive |
| Interfaces | USB 2.0 Hi-Speed, 10/100/1000Base-T/TX Ethernet, Wireless LAN (IEEE 802.11 b/g/n) |
| Media handling | One roll, top loading, front output; automatic horizontal rotary cutter; stackable basket; 2 in core with 3 in adapters (roll holder set RH2-28 included); roll up to 5.9 in diameter; media 0.07 to 0.8 mm thick |
| Print languages | SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4 |
| Printer size and weight | With basket open: 41.7 x 38.5 x 34.2 in (H x W x D), approx. 117.9 lb |
| Package size and weight | With stand, basket and pallet: 37.2 x 45.4 x 35.9 in (H x W x D), approx. 209.4 lb |
| Efficiency | ENERGY STAR certified; EPEAT Gold |
| Warranty | 2-year limited warranty per Canon U.S.A.; the print head carries a separate Canon warranty |
Specifications as published by Canon U.S.A. (spec sheet and brochure; warranty per Canon’s U.S. warranty information), checked October 3, 2026. Specifications are subject to change without notice. PANTONE is a trademark of PANTONE LLC.
Who the Canon TM-250 is for
The TM-250 is for offices, schools and small shops that print CAD documents, posters and signage up to 24 inches wide in a modest space and do not print all day. Canon positions the TM Series for low-volume users in small spaces.
Canon TM-250 FAQ
What is the Canon imagePROGRAF TM-250 and what media widths does it print?
It is a 24-inch, 5-color pigment large format printer with a PF-06 print head. Canon lists roll and cut-sheet media from 8 to 24 inches wide.
What ink does the TM-250 use and where can I buy it?
It uses 5 pigment inks (Matte Black, Black, Cyan, Magenta, Yellow) in 130 mL or 300 mL tanks. You can shop Canon ink at DTG on our Canon ink page.
Is the TM-250 good for CAD drawings and posters?
Yes. Canon positions the TM-250 for low-volume users in small spaces who print posters, CAD documents and signage. For heavier daily production or photographic and fine art work, compare it with other models in our Canon large format printers.
Does the TM-250 come with a warranty, and are extended plans available?
Canon U.S.A. lists a 2-year limited warranty for the imagePROGRAF TM Series (single function), and the print head has its own warranty. Extended Canon eCarePAK coverage options are listed on our warranties page.
How do I buy a TM-250 or get support from DTG?
Call DTG (Digital Technology Group) in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online. We can help with ink, media and printer questions.
Newer Canon models
Canon’s newer generation of this series includes the imagePROGRAF TM-500, imagePROGRAF TM-510, imagePROGRAF TM-510M.
Canon imagePROGRAF TM-250 Technial Printer Brochure.pdf
