Description

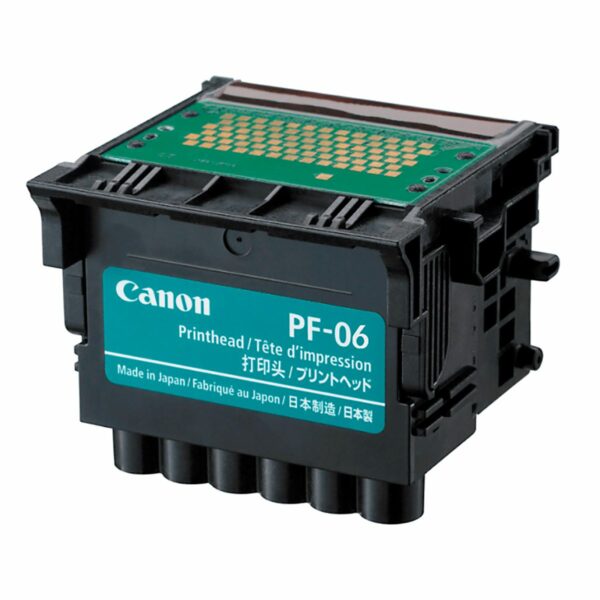

The Canon PF-06 is the user-replaceable print head for the Canon imagePROGRAF TM-250, TM-350 and TX-3200 large format printers, and for the earlier TM and TX series models that share it. Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024 and we will confirm fitment for your printer before you order.
Compatible Canon printers
Canon’s spec sheets list the PF-06 as the print head for these printers:
The PF-06 is also listed by Canon for the TX-4200, and for the earlier imagePROGRAF TM-200, TM-205, TM-240, TM-255, TM-300, TM-305, TM-340, TM-355, TX-3000 and TX-4000.
The PF-06 is not the print head for the GP-200 and GP-300 (those use the PF-07) or for the PRO series, GP-2000 and GP-4000 (those use the PF-10).
Canon PF-06 specifications
| Canon part number | 2352C003 (DTG SKU 2352C003) |
|---|---|
| Print head technology | FINE: Full-Photolithography Nozzle Engineering |
| Head configuration | 6-channel |
| Nozzles | 15,360 total (Matte Black 5,120; other colors 2,560 each) |
| Droplet size | 5 picoliters |
| Maximum print resolution | Up to 2400 x 1200 dpi |
| Print heads per printer | 1 |
| Replacement | Listed by Canon as a user-replaceable item |
| Other Canon user-replaceable parts | MC-31 maintenance cartridge and CT-08 cutter blade for the TM-250 and TM-350; MC-30 maintenance cartridge and CT-07 cutter blade for the TX-3200 |
About the PF-06
The PF-06 is engineered to work with the printer’s high-speed carriage and high-frequency ink ejection. Its nozzle orifice shape helps minimize mist spray for clean lines and text, and the high-density head lays down 5 picoliter droplets for sharp detail at up to 2400 x 1200 dpi. Canon lists the print head under user-replaceable items, so you can change it yourself by following the steps in your printer’s manual or on Canon’s support page for your model. We also carry Canon ink for the TM and TX series.
Canon PF-06 print head FAQ
Which Canon printers use the PF-06 print head?
The PF-06 is the print head for the imagePROGRAF TM-250, TM-350 and TX-3200, and for the TX-4200 and the earlier TM-200, TM-205, TM-240, TM-255, TM-300, TM-305, TM-340, TM-355, TX-3000 and TX-4000.
Does the TM-250 or TM-350 use the PF-06?
Yes. Canon’s TM-250 and TM-350 spec sheets list Printhead (PF-06) under user-replaceable items, and Canon’s TX-3200 spec sheet lists it too.
Can I use a PF-10 or PF-07 print head in a TM or TX printer?
No. Canon lists a different print head for each series: the PF-06 for the TM and TX printers above, the PF-10 for the PRO, GP-4000 and GP-S printers, and the PF-07 for the GP-200 and GP-300.
How do I order the right print head?
Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online, and tell us your printer model.
