Canon PF-10 Print Head for imagePROGRAF PRO-2600/4600/6600, GP-4000/4600S/6600S and PRO-1000/2000/4000/6000 Series

Description

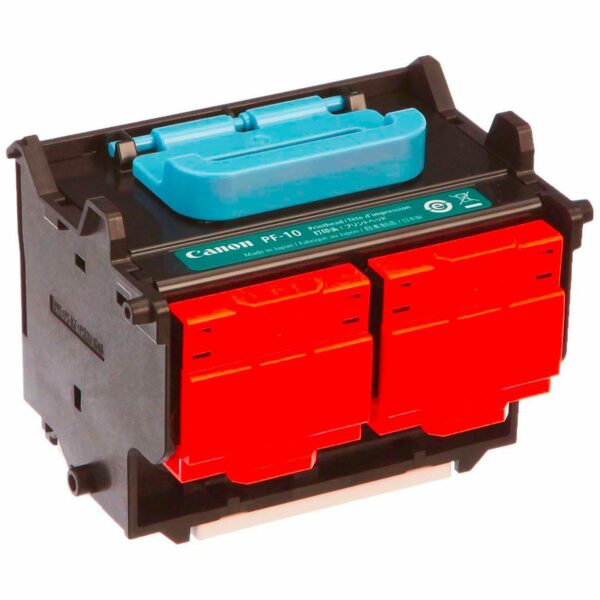

The Canon PF-10 is the user-replaceable print head for the Canon imagePROGRAF PRO-2600, PRO-4600, PRO-6600, GP-4000, GP-4600S and GP-6600S large format printers, and for the earlier PRO-series models that share it. Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024 and we will confirm fitment for your printer before you order.

Compatible Canon printers

Canon’s spec sheets list the PF-10 as the print head for these printers:

• PRO-2600 (24-inch)
• PRO-4600 (44-inch)
• PRO-6600 (60-inch)
• GP-4000 (44-inch)
• GP-4600S (44-inch)
• GP-6600S (60-inch)

Canon’s parts listings also show the PF-10 for the earlier imagePROGRAF PRO-1000, PRO-2000, PRO-2100, PRO-4000, PRO-4000S, PRO-4100, PRO-4100S, PRO-6000, PRO-6000S, PRO-6100 and PRO-6100S, and for the GP-2000.

The PF-10 is not the print head for the GP-200 and GP-300 (those use the PF-07) or for the TM and TX series (those use the PF-06).

Canon PF-10 specifications

Canon part number	0861C003AA (DTG SKU 0861C003)
Print head technology	FINE: Full-Photolithography Nozzle Engineering
Nozzles	18,432 total (1,536 nozzles x 12 channels)
Droplet size	4 picoliters per color
Print heads per printer	1
Replacement	Listed by Canon as a user-replaceable item
Other Canon user-replaceable parts	MC-30 maintenance cartridge and CT-07 cutter blade

Replacing the PF-10

Canon lists the print head under user-replaceable items, so you can change it yourself. Follow the steps in your printer’s manual or on Canon’s support page for your model. The print head ships with the printer, and this part is the replacement.

Canon PF-10 print head FAQ

Which Canon printers use the PF-10 print head?

The PF-10 is the print head for the imagePROGRAF PRO-2600, PRO-4600, PRO-6600, GP-4000, GP-4600S and GP-6600S, and for the earlier PRO-1000, PRO-2000, PRO-2100, PRO-4000, PRO-4000S, PRO-4100, PRO-4100S, PRO-6000, PRO-6000S, PRO-6100, PRO-6100S and GP-2000.

Does the PRO-2600, PRO-4600 or PRO-6600 use the PF-10?

Yes. Canon’s spec sheets for the PRO-2600, PRO-4600 and PRO-6600 list Print Head (PF-10) under user-replaceable items.

Is the PF-10 the same as the PF-06 or PF-07?

No. Canon uses a different print head for each series: the PF-10 for the PRO, GP-4000 and GP-S printers above, the PF-06 for the TM and TX series, and the PF-07 for the GP-200 and GP-300.

How do I order the right print head?

Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online, and tell us your printer model. We can also help with Canon ink for your printer.
