Description
General Formulations GF 275 SubMark™ 3.5 mil Matte White Opaque Vinyl with Clear High-tack Permanent Adhesive

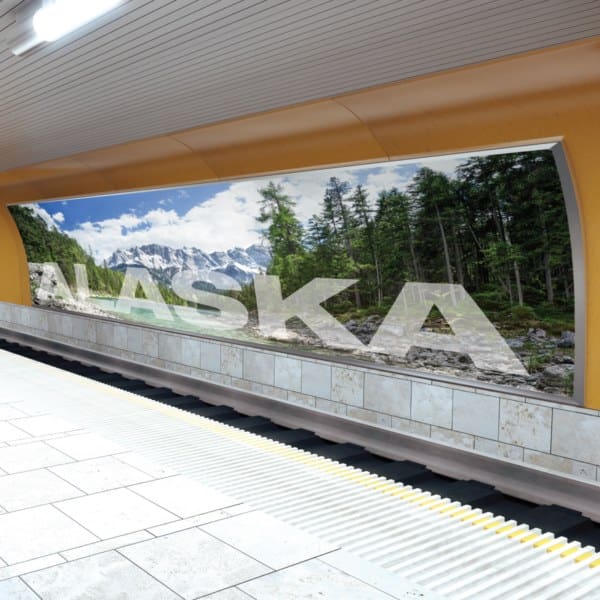

GF 275 SubMark™ is a 3.5 mil flexible polymeric matte white opaque vinyl film coated with a high-tack permanent acrylic pressure sensitive adhesive designed for wall-cut subway poster applications. This vinyl film is a high-quality opaque matte white with excellent outdoor durability. The film provides integrity against removal, helping to prevent vandal’s from removing from the subway. The high-tack adhesive is designed to bond to a variety of substrates such as metals, painted metals, smooth finish powder coated metals, low surface energy plastics, rough textured surfaces, wood, ceramic tile, wall-cut outs, concrete and fiber board frames. This film is backed with a two-sided poly coated 90# layflat release liner with the SubMark™ logo for ease of identification by printers and installers. Approved and specified by OUTFRONT Media for New York subway posters. It is important that printers refer to the OUTFRONT Media Approved Substrate Table and follow the specifications for subway posters.
Specifications
| Film Type | White Polymeric Vinyl |
|---|---|
| Film Thickness (mil) | 3.5 |
| Adhesive | Solvent Acrylic |
| Release Liner | White 2-Sided PE-Coated Kraft |
| Outdoor Durability | Up to 5 years |
Applications
General Formulations lists GF 275 for signage (general) and transit.
- General Signage
- Transit Advertising
Ink and printer compatibility
Ink types listed by General Formulations: Solvent, Eco-Solvent, Latex, UV Curable, Screen, Offset (UV Curable).
Matching printers at DTG: Epson SureColor S-Series solvent printers, HP Latex and resin printers, UV flatbed printers. Confirm media settings with your printer and RIP profile.
Roll sizes
| GF part # | Size |
|---|---|
| 275-54 | 54″ x 150′ |
| 275-60 | 60″ x 150′ |
| 275-62 | 62″ x 150′ |
General Formulations price list note: OUTFRONT Approved. Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
Is GF 275 SubMark™ “OUTFRONT Approved”?
SubMark™ is currently approved for 1, 2, or 3 Sheet Subway Posters with OUTFRONT.
Where else might I use GF 275 SubMark™?
Due to the opacity and aggressive nature of GF 275 SubMark, it is often used for applications like construction signage, hockey rink Dasher Board graphics (with GF 109 or GF 238 laminate), or security decals where removal is discouraged.
Can you put SubMark™ over the top of existing graphics?
Yes. GF 275 is opaque and can be layered on top of existing graphics. These films can be used for one, two and three sheet subway advertising posters, architectural signage, commercial-retail signage, industrial identification decals, safety decals, point-of-purchase graphics and other decals requiring extended life. Keep in mind, this is a PERMANENT product and cannot be removed cleanly from other graphics or surfaces.
Related General Formulations products
- GF 109 Traffic Graffic® 5.0 mil Scratch Resistant Textured Matte Vinyl Floor Laminate with Clear Permanent Adhesive
- GF 238 MotoMark® ARMOR 12.0 mil Gloss UV Laminate with Clear Permanent Adhesive
- GF 270 WindowMark™ 6.0 mil Matte White Perforated Vinyl (70/30) with Clear Removable Adhesive
- GF 280 WindowMark™ 6.0 mil Matte White Perforated Vinyl (80/20) with Clear Removable Adhesive
- GF 285 RoughMark™ 3.5 mil Matte White Conformable Wall Vinyl with Clear High-tack Removable Adhesive
All General Formulations media at DTG
General Formulations GF 275 technical data sheet (PDF)
Product information from General Formulations (official product page). Specifications may change; check current GF literature for critical applications.
Questions about GF media? Call DTG (Digital Technology Group) in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online.
