Epson SureColor T2170 24-Inch Wireless Printer

Description

Product Highlights

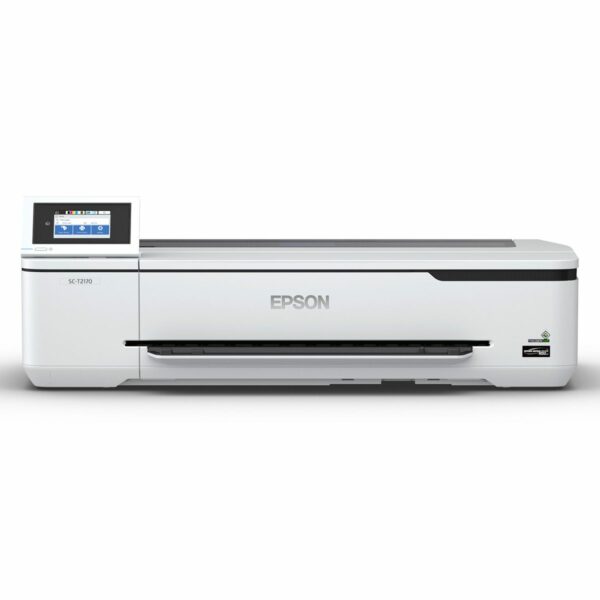

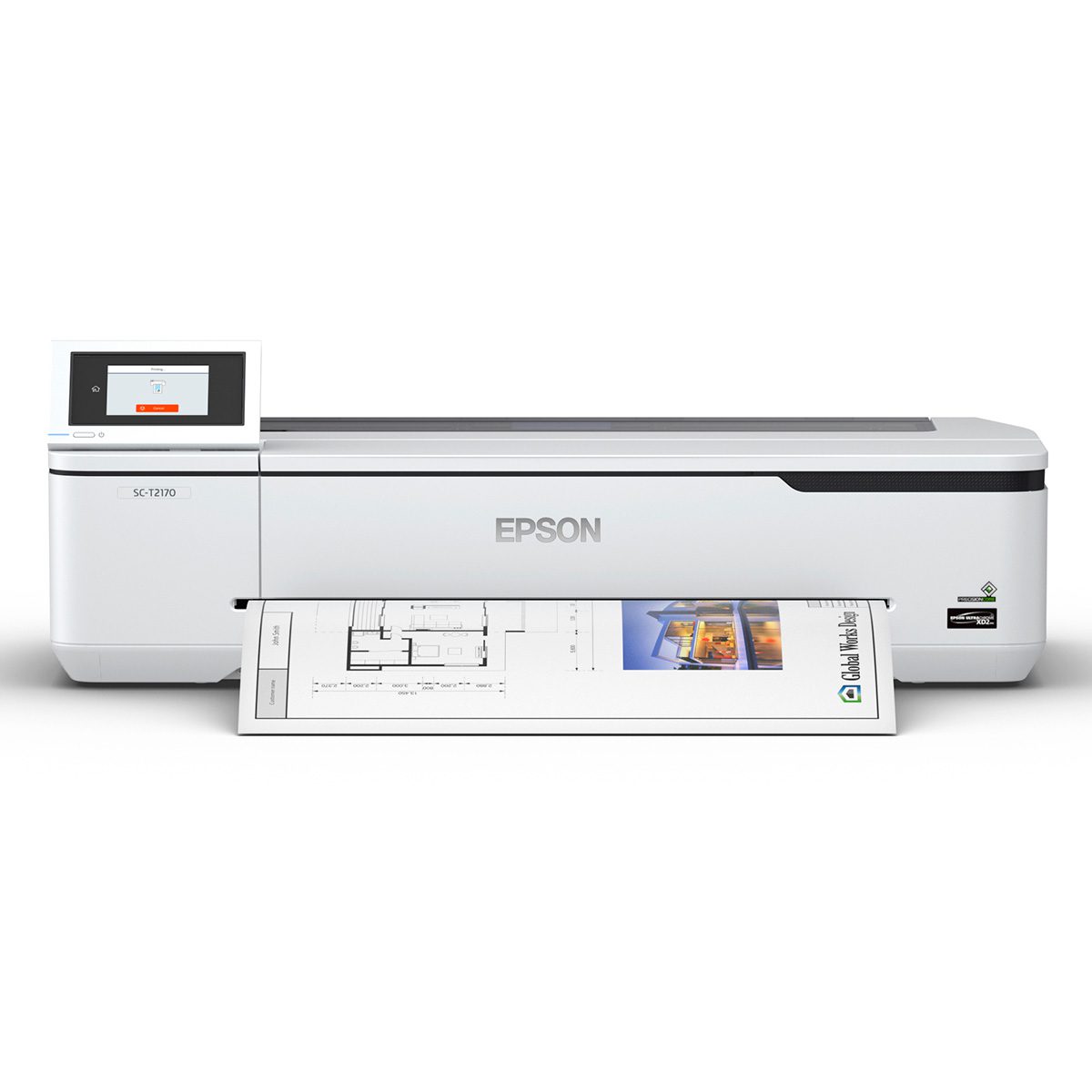

Epson SureColor T2170 24-Inch Wireless Printer: overview

The Epson SureColor T2170 is Epson’s compact 24-inch desktop printer for blueprints, CAD line drawings, maps and posters. It uses a 4-channel PrecisionCore MicroTFP printhead (800 nozzles per channel) with UltraChrome XD2 pigment ink in Cyan, Magenta, Yellow and Black, prints at up to 2400 x 1200 dpi, and produces an A1/D-size print in 43 seconds on Epson’s print-engine test. Epson describes XD2 prints as durable and instant-dry.

Media loads from a single 24-inch roll (2-inch core, up to 4.3 inches in diameter, up to 8.6 mil thick) with a high-speed internal rotary cutter, from a single-sheet slot up to 24 inches wide, or from the auto sheet feeder for sheets up to 11 x 17 inches. The 4.3-inch color touchscreen, Wi-Fi, router-free Wi-Fi Direct, Gigabit Ethernet and SuperSpeed USB make it easy to share in a small office. It weighs 60 lb and measures 38 x 20 x 9 inches without the optional stand, and Epson says it can be up and running in as quickly as 30 minutes.

SureColor T2170 key specifications

Print width	24 in roll; single sheets up to 24 in wide; auto sheet feeder up to 11 x 17 in
Printhead	PrecisionCore MicroTFP, 4 channels, 800 nozzles per channel
Max resolution / droplet	2400 x 1200 dpi / 4 pl, up to 3 dot sizes per line
Ink	Epson UltraChrome XD2 pigment, 4 colors (C, M, Y, K)
Ink cartridges	In the box: C/M/Y 26 mL, K 50 mL. Retail: C/M/Y 26 or 50 mL, K 50 or 80 mL
Speed (Epson, print engine only)	A1/D-size print: 43 seconds
Printer languages	Epson ESC/P raster, HP-GL/2, HP RTL
Roll media	2 in core, max roll diameter 4.3 in, media up to 8.6 mil; high-speed internal rotary cutter
Margins / min. width	0 to 3 mm left and right; minimum roll width 13 in, minimum sheet 8.27 x 11 in
Interfaces	SuperSpeed USB, Wi-Fi 802.11 b/g/n, Gigabit Ethernet, Wi-Fi Direct; 4.3 in touchscreen
Weight / size (W x D x H)	60 lb, 38 x 20 x 9 in without stand; 84 lb, 38 x 28 x 36 in with optional stand
Noise	Approx. 49 dB(A) operating
In the box	Printer, full set of initial ink cartridges (C/M/Y 26 mL, K 50 mL), Start Here poster, user guide, AC power cable. Media and stand not included.
Warranty	1-year limited; whole-unit exchange, usually next business day (Epson)

What the SureColor T2170 is used for

• CAD drawings, blueprints and construction sets up to 24 inches wide
• Line drawings, maps and GIS output
• Posters, signs and classroom or office graphics
• Letter to 11 x 17 inch handouts from the auto sheet feeder

Who buys the SureColor T2170 and what they print

Who buys it, from DTG’s sales and support work in Tampa: Epson SureColor T-series printers like the T2170 are bought by architecture and engineering firms, franchise print-and-ship stores and quick printers, print-for-pay shops, schools and education departments, and grocery stores.

What they print on: poster paper, matte paper and bond paper. See technical and engineering media; ink, media and support available from DTG.

T2170 vs T3170, T3170x, T3170M, T5170 and T3475

The T2170 is the entry model in Epson’s 24-inch technical line. The T3170 is faster, with A1/D prints in 34 seconds; the T3170x matches that speed but replaces cartridges with refillable ink tanks; and the T3170M adds an integrated scanner. If you need 36-inch prints, the T5170 prints A1/D in 31 seconds, and for heavier daily use the T3475 prints A1/D in as fast as 25 seconds. Call a print specialist at 656.232.1877 and we will help you size the printer to your volume.

Ink, media, software and service for the SureColor T2170

• Ink: Epson ink for the T2170 is UltraChrome XD2: T40V 50 mL Black and T40V 26 mL Cyan, or the high-capacity T40W 80 mL Black and T40W 50 mL Cyan (Magenta and Yellow in the same sizes). Epson lists these same T40V and T40W cartridges for the T2170.
• Media: Epson Singleweight Matte Paper 24 in and HP Designjet Universal Bond 24 in; see all technical media. The T2170 takes roll media up to 8.6 mil on a 2-inch core.
• Software: Epson drivers for Windows and Mac, plus HP-GL/2 and HP RTL support for CAD workflows. Epson also offers free Epson Print Automate software for poster printing.
• Parts and options: optional 24-inch stand, maintenance tank (C13S210057), replacement cutter blade and additional 24-inch roll spindle.
• Service: Epson Preferred Plus extended service plans for the T2170, available only at time of hardware purchase (1-year, 2-year and 4-year); plan terms are set by Epson.
• Epson drivers, manuals and support for the T2170
• Epson US product page for the T2170

Why buy your T2170 from DTG

DTG (Digital Technology Group) runs the DTG Technology Center in Tampa, FL. We Don’t Just Sell Printers. We Build Print Businesses. Call a print specialist at 656.232.1877 for a quote, help choosing between the T2170 and T3170, or advice on media for your drawings.

What DTG does after the sale

Buy your SureColor T2170 from DTG (Digital Technology Group) at the DTG Technology Center in Tampa, FL, and you get more than a box:

• Installation and training: available for every printer DTG sells (for a fee).
• Tech support: free toll-free tech support from DTG.
• Ink, media and support available from DTG.
• More than 30 years of digital printing expertise.

Call a print specialist at 656.232.1877 or contact us online.

SureColor T2170 FAQ

How fast is the Epson SureColor T2170?

Epson lists an A1/D-size print in 43 seconds, based on print-engine speed only. Real throughput depends on the file, settings and network.

What is the difference between the T2170 and the T3170?

Both are 24-inch, 4-color UltraChrome XD2 printers with a 4.3-inch touchscreen and Wi-Fi. Epson rates the T3170 faster: A1/D in 34 seconds versus 43 seconds for the T2170.

Does the T2170 come with a stand?

No. It is a desktop printer; the Epson 24-inch stand (C12C933151) is optional.

What ink cartridges does the T2170 use?

UltraChrome XD2 in Cyan, Magenta, Yellow and Black: T40V cartridges (26 mL color, 50 mL Black) or high-capacity T40W cartridges (50 mL color, 80 mL Black).

Can the T2170 print from a phone or over the network?

Yes. It has Wi-Fi, router-free Wi-Fi Direct, Gigabit Ethernet and SuperSpeed USB.

Where can I buy an Epson T2170 in Tampa, FL?

Call DTG (Digital Technology Group) in Tampa at 656.232.1877 to talk to a print specialist or get a quote.

What paper do DTG customers print on with the T2170?

T-series customers at DTG mostly print on poster paper, matte paper and bond paper. Ink, media and support are available from DTG; ask a print specialist which rolls fit the T2170.

What does DTG provide after I buy a T2170?

Installation and training are available for every printer DTG sells, for a fee. Tech support on DTG’s toll-free line is free. Ink, media and support are available from DTG, backed by more than 30 years of digital printing experience.

How much maintenance does a SureColor P- or T-series printer need?

Very little. You’ll change ink, load paper and replace the maintenance tank. We recommend cleaning around the capping station and printhead area about every 6 months. Do it a little more or less often depending on how much you print.

Why is my print a slightly different size than my file?

Print length can vary a little depending on your media and settings. Our video with Mirage on print length correction shows why it happens and how to fix it.

Questions about the SureColor T2170? Call a print specialist at 656.232.1877 or contact us online.
