Description
Product Highlights
- 24-inch, 4-color technical printer; A1/D-size in as fast as 25 seconds
- High-capacity ink cartridges up to 700 mL
- Stand included
- 4.3-inch touchscreen, USB 3.0, Ethernet, Wi-Fi and Wi-Fi Direct
- Supports ESC/P raster, HP-GL/2 and HP RTL

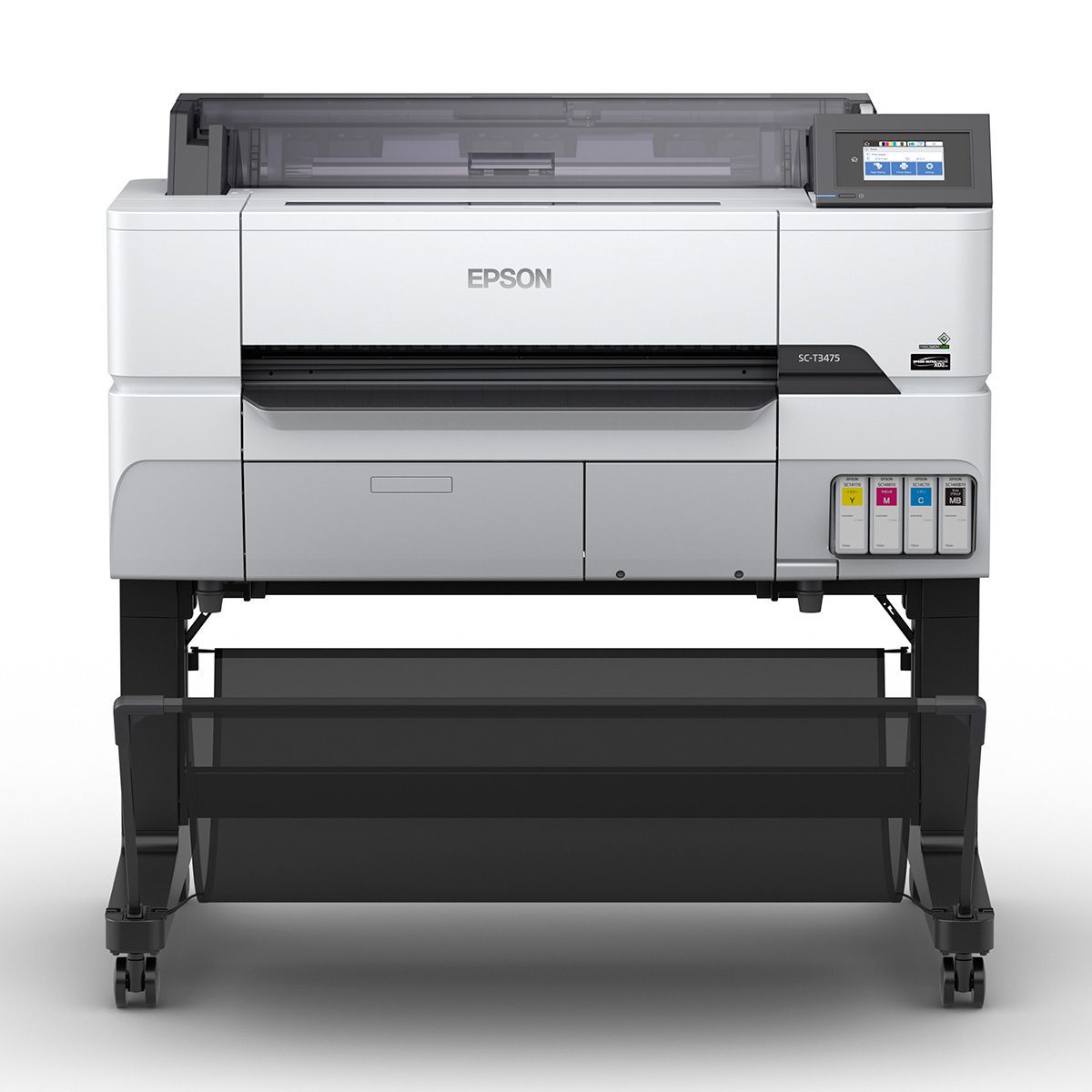

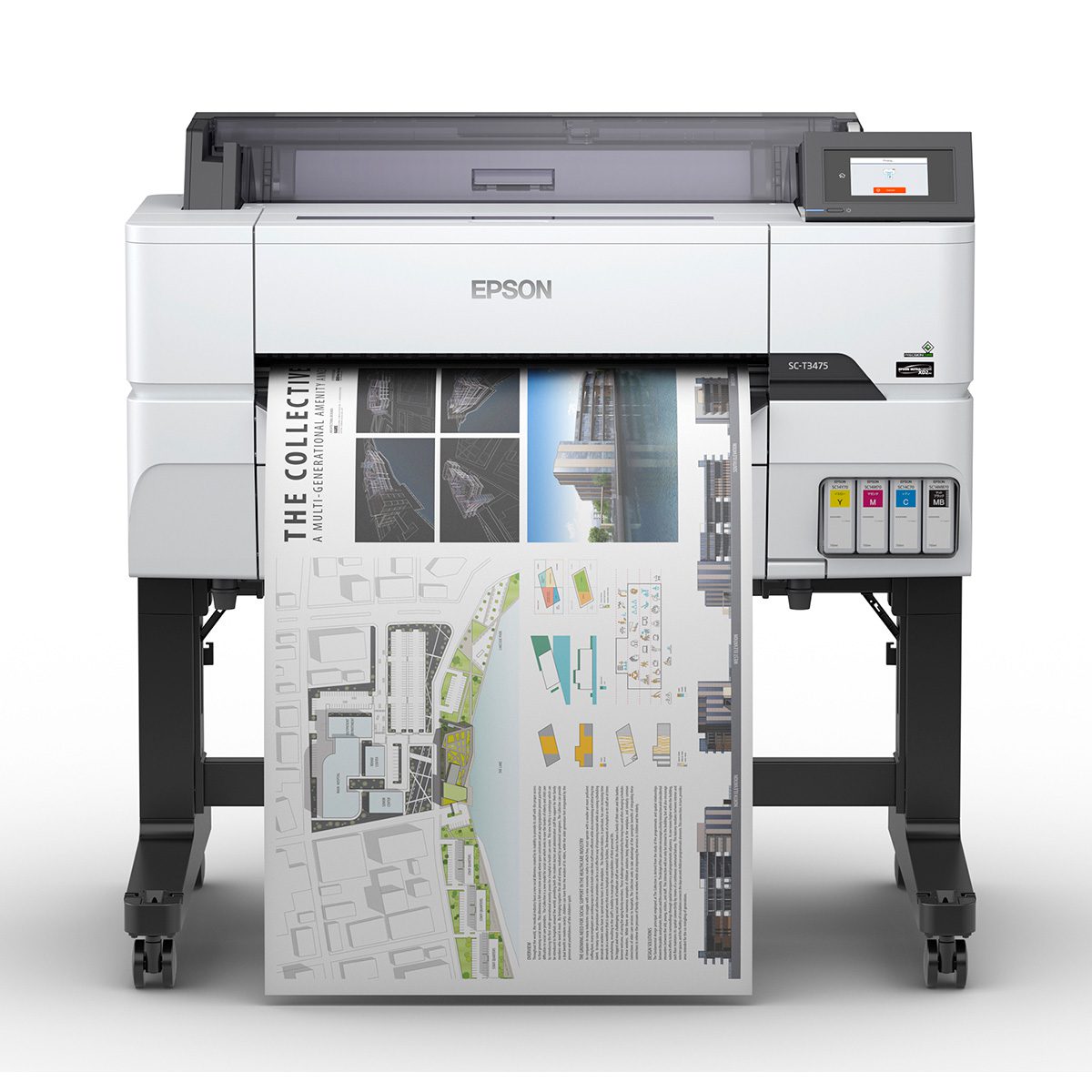

Epson SureColor T3475 24-Inch Wireless Printer: overview
The Epson SureColor T3475 is a 24-inch, four-color technical printer built for CAD, GIS and AEC departments that print often and want fewer ink changes. It prints A1/D-size drawings in as fast as 25 seconds on Epson’s speed test, uses 800 nozzles on each of four channels with a 4 pl droplet, and accepts ink cartridges of 110 mL, 350 mL or 700 mL.
The stand is included, and a 110 mL starter set ships with the printer. The 4.3-inch touchscreen, USB 3.0, Ethernet and wireless connections (Wi-Fi and Wi-Fi Direct) fit office networks, and the printer supports ESC/P raster, HP-GL/2 and HP RTL, which helps when moving from plotter workflows that rely on HP-GL/2 emulation. It weighs 141 lb and measures 43 x 30 x 42 inches. Epson provides one year of on-site service, with repair usually the next business day.
SureColor T3475 key specifications
| Print width | 24 in |
|---|---|
| Printhead | 800 nozzles x 4 channels, 4 pl |
| Ink | UltraChrome XD2 pigment, 4 colors |
| Ink cartridges | 110 mL included; retail 110 mL (T41W), 350 mL (T41P), 700 mL (T41N) |
| Speed (Epson) | A1/D-size in as fast as 25 seconds |
| Languages | ESC/P raster, HP-GL/2, HP RTL |
| Interfaces | USB 3.0, Ethernet, Wi-Fi, Wi-Fi Direct; 4.3 in touchscreen |
| Weight / size | 141 lb; 43 x 30 x 42 in |
| Stand | Included |
| Warranty | 1-year on-site service, usually next business day (Epson) |
What the SureColor T3475 is used for
- Architectural, engineering and construction (AEC) drawings, plans and blueprints
- Line drawings, maps and GIS output
- Posters, presentation boards and in-store graphics
- Bond and coated paper, photo paper and matte media printing
Who buys the SureColor T3475 and what they print
Who buys it, from DTG’s sales and support work in Tampa: Epson SureColor T-series printers like the T3475 are bought by architecture and engineering firms, franchise print-and-ship stores and quick printers, print-for-pay shops, schools and education departments, and grocery stores.
What they print on: poster paper, matte paper and bond paper. See technical and engineering media; ink, media and support available from DTG.
T3475 vs T3170 vs T3770E
Compared with the T3170, the T3475 is faster (25 seconds against 34), includes the stand and uses cartridges up to 700 mL for lower-touch ink changes. The T3770E goes further with six-color XD3 ink including Red and A1/D in as little as 16 seconds. For 36-inch widths, the T5475 is the T3475’s larger sibling.
Ink, media, software and service for the SureColor T3475
- Ink: Epson ink for the T3475 is UltraChrome XD2 in T41W 110 mL Black, T41P 350 mL Black and T41N 700 mL Black cartridges (four colors per size).
- Media: Epson Singleweight Matte Paper 24 in, Enhanced Matte Paper 24 in, Standard Proofing Paper II 24 in and HP Designjet Universal Bond 24 in.
- Workflow: Epson drivers handle AutoCAD, PDF and raster output; for RIP-based color workflows see RIP software and confirm printer support with DTG before ordering.
- Parts and options: maintenance tank and 24-inch roll feed spindle.
- Service: Epson Preferred Plus extended service plans are available for the T3475 at time of hardware purchase (1-year, 2-year and 4-year); plan terms are set by Epson.
- Epson drivers, manuals and support for the T3475
- Epson US product page for the T3475
What DTG does after the sale
Buy your SureColor T3475 from DTG (Digital Technology Group) at the DTG Technology Center in Tampa, FL, and you get more than a box:
- Installation and training: available for every printer DTG sells (for a fee).
- Tech support: free toll-free tech support from DTG.
- Ink, media and support available from DTG.
- More than 30 years of digital printing expertise.
Call a print specialist at 656.232.1877 or contact us online.
SureColor T3475 FAQ
How fast is the Epson T3475?
Epson lists A1/D-size prints in as fast as 25 seconds, based on print-engine speed.
What ink cartridge sizes does the T3475 use?
110 mL, 350 mL and 700 mL cartridges in four colors; a 110 mL set is in the box.
Does the T3475 support HP-GL/2?
Yes. Epson lists ESC/P raster, HP-GL/2 and HP RTL printer languages.
Is the stand included?
Yes, Epson lists the stand as included.
Where can I buy a T3475 in Tampa, FL?
Call DTG (Digital Technology Group) at 656.232.1877.
What paper do DTG customers print on with the T3475?
T-series customers at DTG mostly print on poster paper, matte paper and bond paper. Ink, media and support are available from DTG; ask a print specialist which rolls fit the T3475.
What does DTG provide after I buy a T3475?
Installation and training are available for every printer DTG sells, for a fee. Tech support on DTG’s toll-free line is free. Ink, media and support are available from DTG, backed by more than 30 years of digital printing experience.
How much maintenance does a SureColor P- or T-series printer need?
Very little. You’ll change ink, load paper and replace the maintenance tank. We recommend cleaning around the capping station and printhead area about every 6 months. Do it a little more or less often depending on how much you print.
Why is my print a slightly different size than my file?
Print length can vary a little depending on your media and settings. Our video with Mirage on print length correction shows why it happens and how to fix it.
Questions about the SureColor T3475? Call DTG in Tampa, FL at 656.232.1877 or contact us online.
