Description

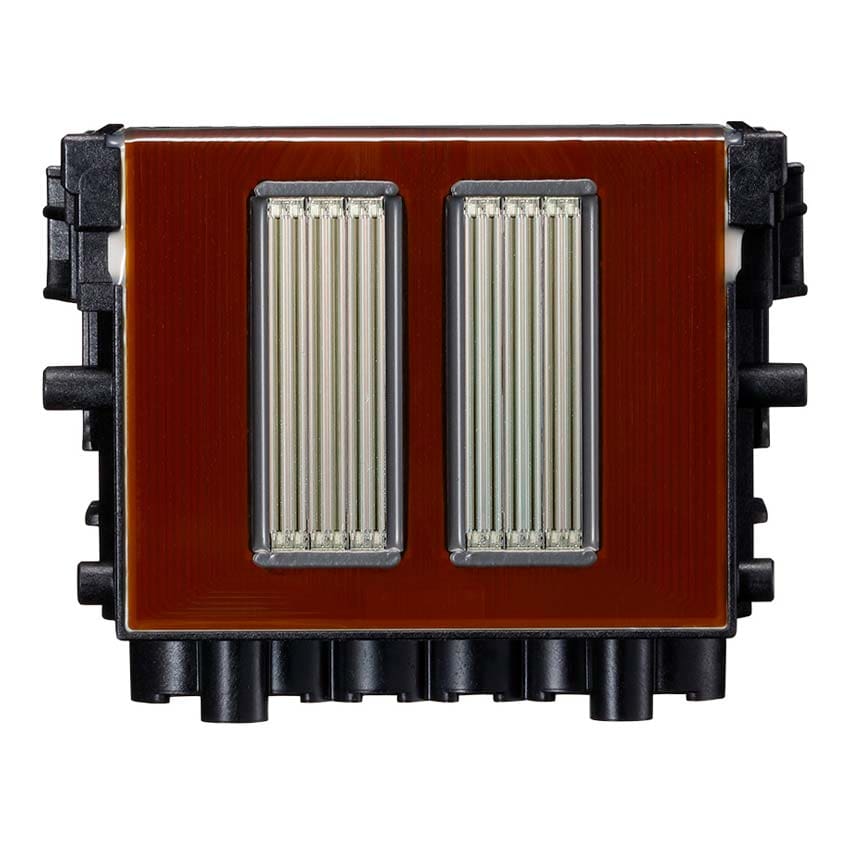

The Canon PF-07 is the user-replaceable print head for the Canon imagePROGRAF GP-200 (24-inch) and GP-300 (36-inch) large format printers. It is the same head that ships in the printer, offered as a replacement. Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024 and we will confirm fitment before you order.
Compatible Canon printers
Canon lists the PF-07 for the GP-200 and GP-300 only. The GP-2000, GP-4000 and PRO series use the PF-10, and the TM and TX series use the PF-06.
Canon PF-07 specifications
| Canon part number | 5230C003AA (DTG SKU 5230C003) |
|---|---|
| Print head technology | FINE: Full-Photolithography Nozzle Engineering |
| Head configuration | 6-channel integrated type |
| Nozzles | 15,360 total (2,560 nozzles x 6 channels) |
| Channels | Fluorescent Pink, Black, Matte Black, Cyan, Magenta, Yellow |
| Droplet size | 5 picoliters per color |
| Maximum print resolution | Up to 2400 x 1200 dpi |
| Print heads per printer | 1 |
| Replacement | Listed by Canon as a user-replaceable item |
| Other Canon user-replaceable parts | MC-31 maintenance cartridge and CT-08 cutter blade; call DTG for availability |
Replacing the PF-07
Canon lists the print head under user-replaceable items for the GP-200 and GP-300, so you can change it yourself. Follow the steps in your printer’s manual or on Canon’s support page for your model. We also carry Canon ink for the GP series.
Canon PF-07 print head FAQ
Which print head does the Canon GP-200 or GP-300 use?
The imagePROGRAF GP-200 and GP-300 use the Canon PF-07 print head, Canon part number 5230C003AA.
Can I use a PF-10 or PF-06 print head in a GP-200 or GP-300?
No. Canon lists a different print head for each series, so order the PF-07 for the GP-200 and GP-300.
Can I replace the PF-07 myself?
Yes. Canon lists the print head as a user-replaceable item. Follow your printer’s manual or Canon’s support page for your model.
How do I order the PF-07 from DTG?
Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online, and tell us your printer model.
