Description

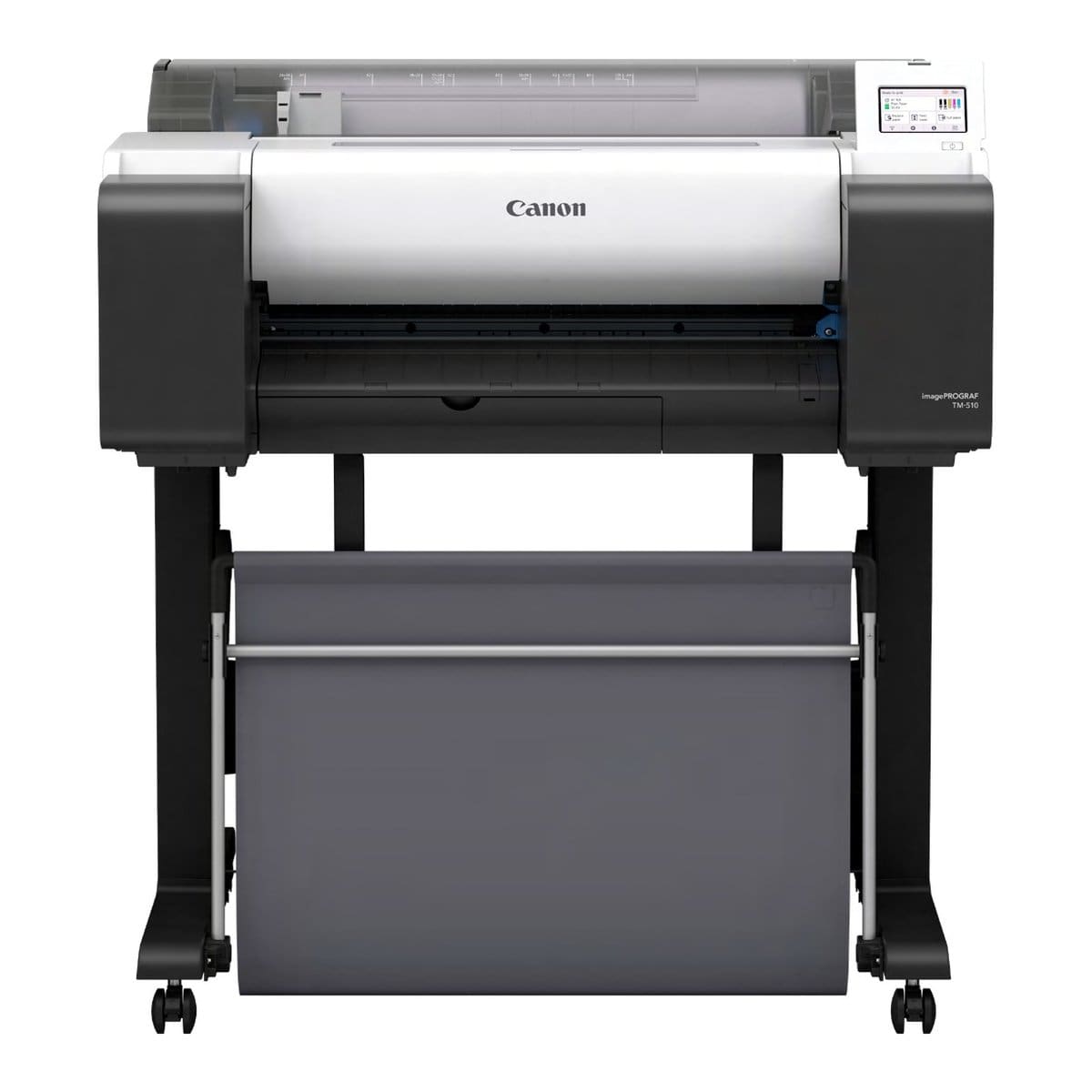

The Canon imagePROGRAF TM-510M prints up to 2.9 D-size (24″ x 36″) drawings per minute on plain paper, per Canon. It is a 24-inch, 5-color LUCIA TD pigment printer for CAD drawings, blueprints, GIS maps and posters. DTG in Tampa, FL sells, installs and supports it. Call DTG at 813.889.0660 or 800.681.0024.
How fast does the TM-510M print a D-size drawing?
Canon rates the TM-510M at up to 2.9 ANSI D prints per minute, measured after the first print in Fast Q5 mode on plain paper. Actual speed varies with copies, size, media type and orientation. Source: Canon U.S.A. TM-510M product page.
Scanning
Built-in 24″ CIS scanner (600 dpi per Canon brochure), documents up to 24.5″ wide and up to 326.9″ (JPEG) / 200″ (PDF) long, zoom 25-432%, up to 99 copies, scan to USB memory, email or SMB.
TM-510M specifications
| Print width | 24″ |
| D-size speed (Canon) | Up to 2.9 D/min (Fast Q5, plain paper) |
| Ink | 5-color LUCIA TD pigment: MBK, BK, C, M, Y |
| Starter ink | 130 ml MBK and 90 ml BK/C/M/Y starter tanks |
| Replacement ink | 130 ml or 300 ml tanks (PFI-120/121/123, PFI-320/321/323) |
| Printhead | PF-06, 15,360 nozzles (MBK 5,120; others 2,560 each), 2400 x 1200 dpi |
| Media | 8″ to 24″ roll and cut sheet, 0.07-0.8 mm thick |
| Max roll diameter | 5.9″ (150 mm) |
| Storage | 2 GB RAM |
| Output | stand and basket included |
| Printer dimensions / weight | 38.5″ x 34.2″ x 41″ with basket open; 138.9 lbs. |
| Configuration | Printer with built-in 24″ scanner, stand and basket |
Canon TM-510M FAQ
What ink does the TM-510M use?
It uses Canon’s 5-color LUCIA TD pigment ink (MBK, BK, C, M, Y). Out of the box you get 130 ml MBK and 90 ml BK/C/M/Y starter tanks. Replacement tanks: 130 ml or 300 ml tanks (PFI-120/121/123, PFI-320/321/323). You’ll find them on our Canon ink page.
What paper sizes and roll sizes does the TM-510M take?
Canon lists 8″ to 24″ roll and cut sheet, 0.07-0.8 mm thick, with rolls up to 5.9″ (150 mm) outside diameter. Max print length is 59 ft on a roll and 5.2 ft on cut sheets (varies by OS and application).
Does the TM-510M come with a stand?
Yes. Per Canon, this configuration is the printer with built-in 24″ scanner, stand and basket.
Which print head does the TM-510M use?
It uses the PF-06 printhead: 15,360 nozzles (MBK 5,120; others 2,560 each), up to 2400 x 1200 dpi. Canon lists the PF-06 printhead, MC-31 maintenance cartridge and CT-08 cutter blade as user-replaceable, so you can swap them yourself.
How do I buy a TM-510M or get help with one?
Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online. We’ll help you pick the right size, set it up, and keep you stocked on ink and paper.
Why buy the TM-510M from DTG
DTG is an authorized Canon imagePROGRAF dealer in Tampa, FL. We help you pick the right technical printer for your drawing volume, set it up, and support it with ink, media and service. Call DTG at 813.889.0660 or 800.681.0024.
Specifications from Canon U.S.A.: TM-510M spec sheet. Specifications subject to change by Canon.


Canon imagePROGRAF TM-510 / TM-510M Specification Sheet (PDF)
