Description

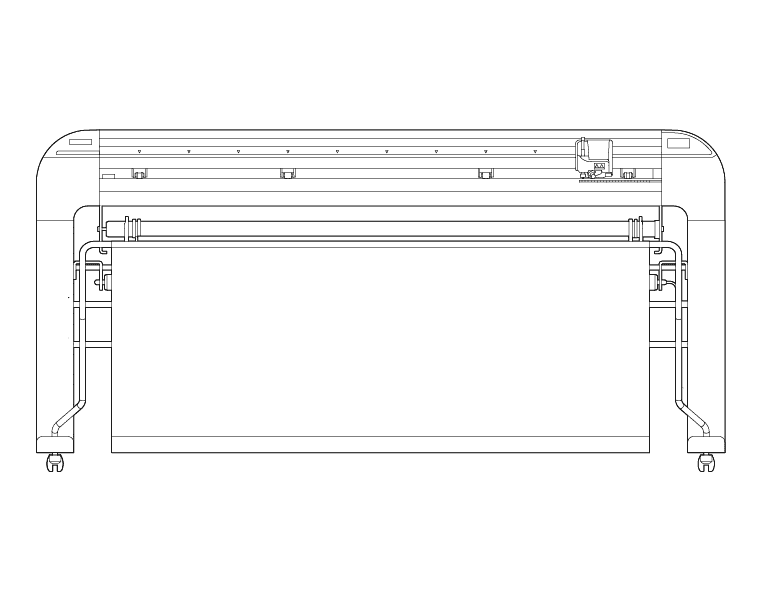

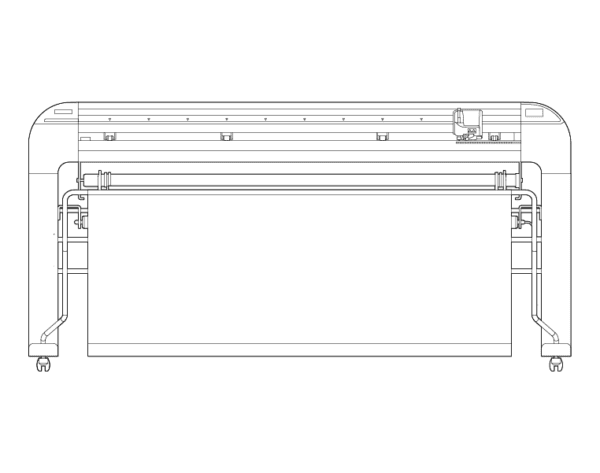

The Summa S3T160 S Class 3 Tangential Cutter, 62″ is Summa’s S3T160 — the S3 160 S3 T Series true tangential cutting head.
Summa’s brochure describes the Summa S3 160 as the largest roll-cutter size in the S3 Series, “tailored to the professional user who wants maximum flexibility.” The key-features text says it handles media up to 158 cm (62.2"), plus 7 cm (2.8") in oversized mode.
Summa’s brochure assigns the S3 T Series a “True Tangential cutting head.” It says the S Class 3 T Series “combines S Class power and precision with a state-of-the-art True Tangential cutting head.” The comparison table lists S3 T Series cutting technology as True Tangential Knife.
Summa’s S3T series page describes the S3T as bringing “tangential precision to roll based production” and names floor graphics, PPF, laminated prints, stencil films and light cardboard among the materials it discusses for that series.
The S3 technical specifications table lists knife pressure as “Drag Knife: Up to 400 grams / Tangential Knife: Up to 1000 grams.” This model is the T-series tangential variant, so the published tangential figure is up to 1000 grams.
The combined S3 technical specifications table also lists “OPOS CAM: Factory upgrade on new Summa S Class 3 S75T and S160T.”
The brochure’s servo-powered roll-up section is titled “Servo-powered Roll-up System | S3 75, S3 140 & S3 160.” It says that after finishing a job, “the system will roll up the artwork neatly and prepare the machine for the next one,” and that “the integrated panelling feature splits long-length runs into shorter consecutive tasks.” The S Class 3 options table lists 395-746 as the roll-up system for S3 160 “with one pair of core holders.”
The S3 160 key-features text asks, “Need even more cutting power?” and says Twin X “offers the ultimate solution by seamlessly integrating the Summa S3 160 with the F1612 flatbed cutter.”
Included software on the S3 technical specifications table is Summa GoSign Software and Summa Cutter Control, with plug-ins for Illustrator, CorelDraw, and MacSign. The brochure says “GoSign is your first choice cutting software designed for the Summa roll cutters” and that it allows you to manage a preferred workflow with flexibility.
S3T160 specifications
These figures come from Summa’s S3 technical specifications table and the S3 size-class pages in the 2026 vinyl cutter brochure (RevEN(US)25.10). Media width and maximum working width are listed separately in that table; they are not the same measurement.
| Summa model | S3T160 |
|---|---|
| S3 size class | S3 160 |
| Cutting technology | True Tangential Knife |
| Dimensions | 225 x 69 x 111 cm (88.6" x 27.2" x 43.7") |
| Media width | 17 to 168 cm (6.7" to 66.1") |
| Max. working width | 158 cm x 50 m (62.2" x 164 ft); oversized mode allows a wider cutting area of ±7 cm (2.8") |
| Comparison-table maximum media width | 168 cm (66") |
| Pinch rollers | 4 |
| Alignment | OPOS X – OPOS Xtra; barcode job recognition; up to 2 × 64 marks on the X-line; Y-Line compensation |
| OPOS CAM | Factory upgrade on new Summa S Class 3 S75T and S160T (combined S3 specification table) |
| Tracking performance | 12 m (40 ft) max. within guaranteed specifications for media less than 762 mm (30"); 4 m (13 ft) max. for media larger than 762 mm (30"). Oversized mode: tracking no longer guaranteed. |
| Media thickness | 0.05 mm (0.002") to 0.25 mm (0.01"); up to 0.8 mm (0.03") with sandblast drag knife; up to 1.2 mm (0.047") with sandblast tangential knife |
| Accuracy | 0.2% of movement or 0.25 mm (0.010"), whichever is greater |
| Speed | Up to 1440 mm/s (56"/s) diagonal |
| Acceleration | Up to 4.25 G diagonal |
| Knife pressure | Drag knife: up to 400 grams / tangential knife: up to 1000 grams |
| Other features | FlexCut (cutting through) |
| Connectivity | Ethernet, USB, WIFI |
| Power requirements | 100–120 / 220–240 VAC, 50/60 Hz, 85 VA maximum |
| Included software | Summa GoSign Software, Summa Cutter Control; plug-ins for Illustrator, CorelDraw, MacSign |
Related Summa S Class 3 products
Sources: Summa 2026 Vinyl Cutter Brochure (RevEN(US)25.10); Summa S3T series page.
FAQ
What cutting technology does the S3T160 use?
True Tangential Knife, as listed for the S3 T Series in Summa’s 2026 vinyl cutter brochure.
What are the official S3 160 media and working widths?
The S3 technical specifications table lists media width 17 to 168 cm (6.7" to 66.1") and maximum working width 158 cm x 50 m (62.2" x 164 ft). Oversized mode adds ±7 cm (2.8"); tracking is not guaranteed in oversized mode. The comparison table’s maximum media width for this size is 168 cm (66").
