Description

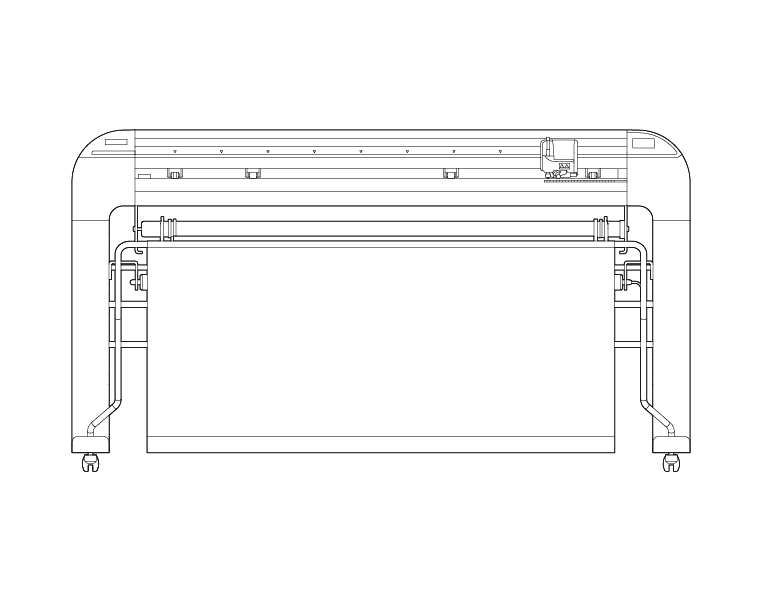

Summa S3T140 S Class 3 Tangential Cutter, 54". The S3T 140 brings tangential cutting to the 54 inch production lane. It delivers clean, deliberate cuts across wider graphics, keeping contours steady and details intact, even when materials push back.
What the S3T140 is made for
- 54 inch wall and window graphics
- Floor graphics and laminated prints
- Detailed decals and long contour paths
- Stencil films, PPF and structured media
S3T140 specifications
| Summa model | S3T140 |
|---|---|
| Maximum media width | 135cm / 54" |
| Cutting technology | Tangential cutting knife |
| Max cutting thickness | 1.2 mm / 0.047" |
| Pinch rollers | 4 |
| Footprint | Designed to align with 54 inch printers and mid format finishing lines |
| Cutting force | Up to 1kg for thicker or specialty materials |
| Print registration | OPOS mark reading for precise contour tracking |
| Compensation | OPOS XY technology to adjust cut path to follow potential deformations in the graphic |
| Connectivity | USB, Wi-Fi and Ethernet |
| Software | GoSign workflow management, compatible with over 50 RIP Softwares |
Why choose the S3T140
Precision at width
The S3T‑140 maintains tight control over large graphics, keeping corners sharp and curves true from edge to edge.
Confidence on challenging media
PPF, thicker laminates, stencil materials and structured films cut cleanly without wandering blades or inconsistent pressure.
Clean detail, even on long paths
Tangential movement keeps small shapes intact and prevents tearing, bending or lifting, essential for high‑value graphics and floor visuals.
Built for 54 inch environments
Perfectly matched to mid‑large printers, the S3T‑140 helps you keep more jobs in one piece and reduces seams during installation.
Source: Summa S3T140 product page (summa.com).
Questions about this Summa product? Call a DTG specialist at 800.681.0024 or email info@dtgweb.com.
S3T140 FAQ
What cutting technology does the S3T140 use?
Tangential cutting knife, per Summa.
Does it support print-and-cut?
OPOS mark reading for precise contour tracking
Where can I buy it?
From DTG (Digital Technology Group) in Tampa, Florida; call 800.681.0024.
