Description
General Formulations GF 831 AutoMark™ Cast 2.0 mil Gloss Clear UV Laminate with Clear Permanent Adhesive

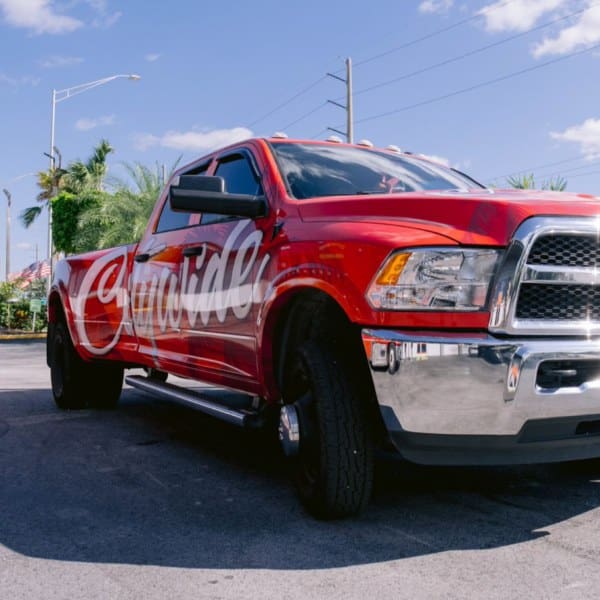

GF 831 AutoMark™ Clear Laminate is a 2.0 mil gloss cast film with clear solvent adhesive on a 74# liner. This conformable laminate provides graphic protection from UV exposure, moisture, and abrasion. GF cast laminates are specifically engineered for full vehicle wraps, partial wraps, fleet graphics as well as long-term applications where a high-quality cast laminate is required.
Specifications
| Film Type | Cast Clear Vinyl |
|---|---|
| Film Thickness (mil) | 2.0 |
| Adhesive | Solvent Acrylic |
| Release Liner | White Clay Coated Kraft |
| Outdoor Durability | Up to 8 years (vertical application – see Zone 1) |
Applications
General Formulations lists GF 831 for signage (general, backlit), windows, vehicle and transit.
- General Signage
- Backlit Signage
- Windows
- Vehicle Graphics
- Transit Advertising
Roll sizes
| GF part # | Size |
|---|---|
| 831-54 | 54″ x 150′ |
| 831-60 | 60″ x 150′ |
Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
Can I use GF 831 Cast Clear Laminate for full car wraps?
Yes. This is a full wrap laminate that can be used for complex curves, deep channels, rivets, and false windows found on commercial vans.
What are the main products that can be used with GF 831?
GF 831 is the recommended laminate for GF Cast Wrap films (GF 830). GF 831 can also be used on a variety of GF films including GF 230 AutoMark™.
Can I use heat when laminating the GF 831 to vinyl films?
GF 831 is a cold laminating film, however you may use up to 115 ° F (heat assist) to help the adhesive flow out in certain situations. Anything higher may cause the vinyl to stretch.
Related General Formulations products
- GF 830 AutoMark™ Cast 2.0 mil Gloss White Wrap Vinyl with Slidable Repositionable Air Egress Adhesive
- GF 230 AutoMark™ 2.4 mil Gloss White Wrap Vinyl with Grey Repositionable Adhesive
- GF 840 AutoMark™ Cast 2.0 mil Matte Clear UV Laminate with Clear Permanent Adhesive
- GF 844 AutoMark™ Cast 2.0 mil Ulti-matte Cast Clear Laminate with Clear Permanent Adhesive
- GF 813 AutoMark™ Cast 1.3 mil Gloss Clear UV Laminate with Clear Permanent Adhesive
All General Formulations media at DTG
General Formulations GF 831 technical data sheet (PDF)
Product information from General Formulations (official product page). Specifications may change; check current GF literature for critical applications.
