Description

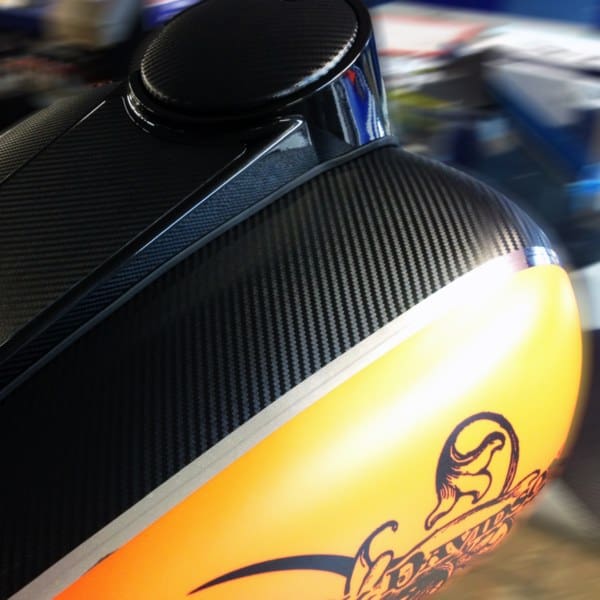

General Formulations GF 780 DragonWrap™ 5.6 mil Black Carbon Fiber Textured Vinyl with Clear Repositionable Permanent Adhesive
GF 780 Dragon Wrap carbon fiber film is a 5.6 mil calendered vinyl featuring a clear repositionable permanent acrylic adhesive on a 90# air-egress liner. This black film has excellent dimensional stability, outstanding durability and outdoor performance Additionally, GF 780 can be printed using solvent, eco-solvent and UV curable digital inks. This repositionable permanent adhesive offers minimal initial bond growing to permanent bonds that facilitates application of large graphics, and bubble-free installation is made easier with its air-egress liner.
Specifications
| Film Type | Black Embossed Polymeric Vinyl |
|---|---|
| Film Thickness (mil) | 5.6 |
| Adhesive | Solvent Acrylic |
| Release Liner | White 2-sided PE Coated Kraft, Air-Egress |
| Outdoor Durability | 5 years |
Applications
General Formulations lists GF 780 for signage (general, POP and indoor), windows and vehicle.
- General Signage
- POP & Indoor Signage
- Windows
- Vehicle Graphics
Ink and printer compatibility
Ink types listed by General Formulations: Solvent, Eco-Solvent, Latex, UV Curable, Screen.
Matching printers at DTG: Epson SureColor S-Series solvent printers, HP Latex and resin printers, UV flatbed printers. Confirm media settings with your printer and RIP profile.
Roll sizes
| GF part # | Size |
|---|---|
| 780-30U | 30″ x 150′ |
| 780-60U | 60″ x 150′ |
Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
I have installed GF 780 Dragon Wrap on my car hood—can I wax it?
No, please do not use wax–it is not recommended with GF 780 Dragon Wrap as it will cause issues with the finish and texture.
What is the best way to care for my wrap film?
Dragon Wrap carbon fiber wrap film should be maintained to preserve long term appearance using standard aftercare products designed for textured exterior vinyl surfaces. A commercially available protectant such as Armor All or 303 Aerospace Protectant is recommended.
Are there any other typical applications for this product?
Common uses are Automotive Accent Restyling and Automotive Wraps as applied by experienced installers. Other applications include Architectural Signage, Interior and Exterior Displays. These films are intended for flat to moderately curved surfaces. Heat setting the film and edges is always recommended. If printing, these films must be tested before production.
What is the expected exterior lifetime of these products?
GF 780 is designed to last outdoors for up to 5 years under normal exposure conditions.
Related General Formulations products
- GF 790AE Print-N-Privacy™ 3.0 mil Polymeric Glass Etch Vinyl (light) with Clear Solvent Permanent Adhesive
- GF 767 6.0 mil Sparkle Holographic Film with Clear Permanent Adhesive
- GF 765 6.0 mil Rainbow Holographic Film with Clear Permanent Adhesive
- GF 830 AutoMark™ Cast 2.0 mil Gloss White Wrap Vinyl with Slidable Repositionable Air Egress Adhesive
- GF 885AE RoughMark™ Cast 2.0 mil Gloss White Conformable Wall Vinyl with Grey High-tack Removable Adhesive
All General Formulations media at DTG
General Formulations GF 780 technical data sheet (PDF)
Product information from General Formulations (official product page). Specifications may change; check current GF literature for critical applications.
Questions about GF media? Call DTG (Digital Technology Group) in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online.
