Description
General Formulations GF 767 6.0 mil Sparkle Holographic Film with Clear Permanent Adhesive
GF 767 Sparkle Holographic is a 6.0 mil holographic film coated with a permanent acrylic pressure sensitive adhesive on a 90# layflat liner. The 90# liner provides excellent dimensional stability for digital printing. This film accepts a variety of solvent-based, eco-solvent, latex and UV curable inks common to wide format digital printing systems.
Specifications
| Film Type | Holographic Film |
|---|---|
| Film Thickness (mil) | 6.0 |
| Adhesive | Emulsion Acrylic |
| Release Liner | White 2-Sided PE-Coated Kraft |
| Outdoor Durability | Up to 1 Year |
Applications
General Formulations lists GF 767 for signage (general, POP and indoor).
- General Signage
- POP & Indoor Signage
Ink and printer compatibility
Ink types listed by General Formulations: Solvent, Eco-Solvent, Latex, UV Curable, Thermal Transfer, Screen, Offset (UV Curable).
Matching printers at DTG: Epson SureColor S-Series solvent printers, HP Latex and resin printers, UV flatbed printers. Confirm media settings with your printer and RIP profile.
Roll sizes
| GF part # | Size |
|---|---|
| 767-3075 | 30″ x 75′ |
| 767-30 | 30″ x 150′ |
| 767-5475 | 54″ x 75′ |
| 767-54 | 54″ x 150′ |
| 767-6075 | 60″ x 75′ |
| 767-60 | 60″ x 150′ |
Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
Does GF 767 have any shim lines as seen on other holographic films?
Yes, the 60” wide rolls have a very faint shim line at 30” in machine direction (center of the roll) and a less noticeable, repeating, line every 12” running cross-web or across the width of the roll.
Why are lines seen on the face of the film?
To create the holographic look, the film goes through an embossing process. During this process, one or more metal shims are mounted around the circumference of a round embossing cylinder leaving behind a slightly visible line on the material surface.
How can I use GF 767 Sparkle Holographic?

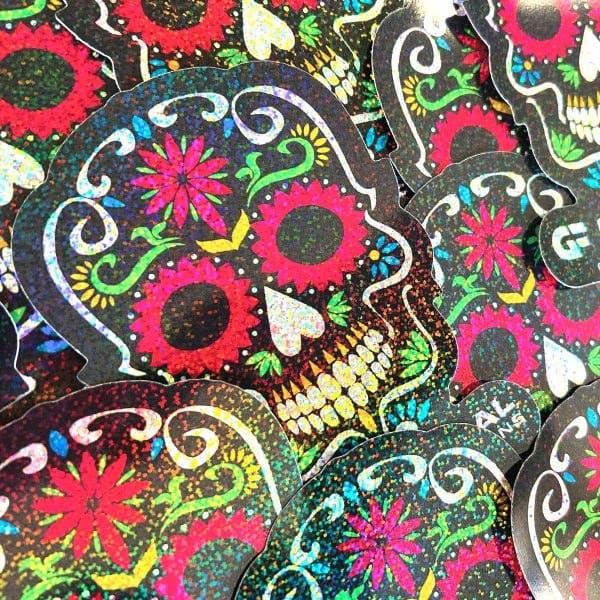

GF 767 Sparkle Holographic is great for decals, POP, retail displays, holiday graphics, packaging, labels and so much more!
My cutter’s optical sensor is having trouble finding the registration marks, is there anything I can do?
The surface of 767 Sparkle is very reflective. There are a few general techniques you can try to reduce the reflection. Overlay a piece of clear matte laminate over top of all registration marks to allow the optical sensor to see the marks. You may also try placing white vinyl around the registration mark or cutting out white pieces of vinyl. To do this, cut the white vinyl and leave the center open for either the “L” registration mark or “O” (circular) registration mark.
Related General Formulations products
- GF 765 6.0 mil Rainbow Holographic Film with Clear Permanent Adhesive
- GF 780 DragonWrap™ 5.6 mil Black Carbon Fiber Textured Vinyl with Clear Repositionable Permanent Adhesive
- GF 790AE Print-N-Privacy™ 3.0 mil Polymeric Glass Etch Vinyl (light) with Clear Solvent Permanent Adhesive
- GF 830 AutoMark™ Cast 2.0 mil Gloss White Wrap Vinyl with Slidable Repositionable Air Egress Adhesive
- GF 885AE RoughMark™ Cast 2.0 mil Gloss White Conformable Wall Vinyl with Grey High-tack Removable Adhesive
All General Formulations media at DTG
General Formulations GF 767 technical data sheet (PDF)
Product information from General Formulations (official product page). Specifications may change; check current GF literature for critical applications.
Questions about GF media? Call DTG (Digital Technology Group) in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online.
