Description
General Formulations GF 228 TransMark™ 6.0 mil Matte White Translucent Vinyl with Clear Removable Adhesive
GF 228 TransMark™ is a 6.0 mil translucent matte white vinyl with a clear removable adhesive on a 90# layflat liner. GF 228 is a premium pressure sensitive vinyl with uniform light diffusion properties used to produce backlit displays for applications such as taxi tops, bus displays, delivery graphics, and other applications that require backlighting. GF 228 is designed to accept a variety of solvent-based, latex and UV curable inks. GF 228 offers excellent bond to substrates such as polycarbonate, styrene, and acrylic sheeting. GF 228 TransMark™ is CURB™ Taxi Top Approved.
Specifications
| Film Type | White Polymeric Vinyl |
|---|---|
| Film Thickness (mil) | 6.0 |
| Adhesive | Solvent Acrylic |
| Release Liner | White 2-Sided PE-Coated Kraft |
| Outdoor Durability | Up to 3 years |
Applications
General Formulations lists GF 228 for signage (general, POP and indoor, backlit), windows and transit.
- General Signage
- POP & Indoor Signage
- Backlit Signage
- Windows
- Transit Advertising
Ink and printer compatibility
Ink types listed by General Formulations: Solvent, Eco-Solvent, Latex, UV Curable, Screen, Offset (UV Curable).
Matching printers at DTG: Epson SureColor S-Series solvent printers, HP Latex and resin printers, UV flatbed printers. Confirm media settings with your printer and RIP profile.
Roll sizes
| GF part # | Size |
|---|---|
| 228-54 | 54″ x 100′ |
| 228-60 | 60″ x 100′ |
| 228-60X300 | 60″ x 300′ |
Per General Formulations, 300' rolls may contain a splice. General Formulations price list note: Curb Taxi Top Approved. Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
Should I laminate GF 228?
GF 228 TransMark™ has up to a 3 year outdoor life expectancy without lamination, however to get the most out of your graphics and make them more durable, you can use GF 101 Lustre Laminate for added protection.
What types of applications are recommended for GF 228?

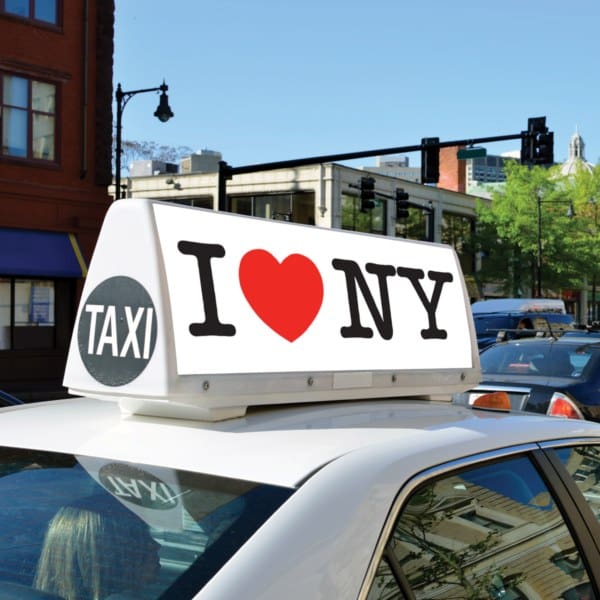

GF 228 TransMark™ works in applications such as backlit vehicle or bus signs, window graphics, retail displays, and illuminated artwork.
What inks is GF 228 compatible with?
General Formulations lists these ink types for GF 228: Solvent, Eco-Solvent, Latex, UV Curable, Screen, Offset (UV Curable).
Related General Formulations products
- GF 101 3.0 mil Lustre Clear Laminate with Clear Permanent Adhesive
- GF 227 WallMark® Lite 3.4 mil Matte White Vinyl with Clear Repositionable Wall Adhesive
- GF 229 WallMark® Canvas 6.0 mil Matte White Embossed Vinyl with Clear Repositionable Wall Adhesive
- GF 229HTR WallMark® Canvas 6.0 mil Matte White Embossed Vinyl with High-tack Removable Wall Adhesive
- GF 226 WallMark® 6.0 mil Matte White Vinyl with Clear Repositionable Wall Adhesive
All General Formulations media at DTG
General Formulations GF 228 technical data sheet (PDF)
Product information from General Formulations (official product page). Specifications may change; check current GF literature for critical applications.
