Description

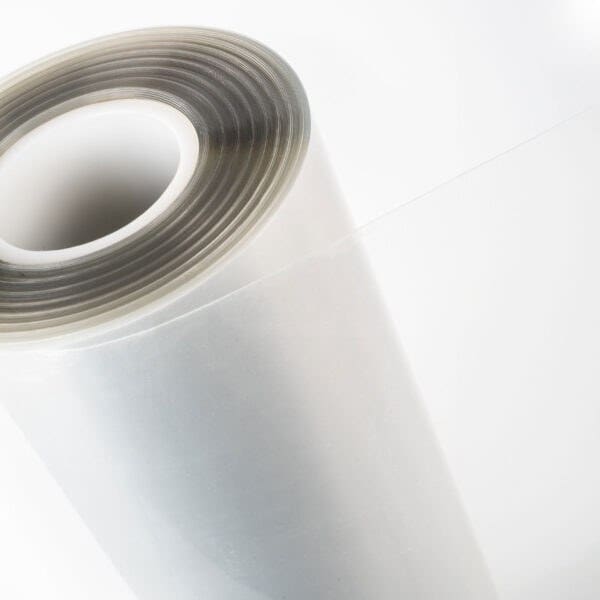

General Formulations GF 101 3.0 mil Lustre Clear Laminate with Clear Permanent Adhesive
GF 101 is a 3.0 mil lustre clear pressure sensitive PVC laminate with a permanent acrylic adhesive on a smooth 53# liner. This calendered PVC laminate also protects graphics from abrasion and moisture. GF 101 is best applied by the cold laminating process without the addition of heat and is designed to protect digital and screen printed images for exhibit and display graphics. GF 101 can be used in most instances where an overlay with a lustre finish is required on interior or exterior applications.
Specifications
| Film Type | Clear Monomeric Vinyl |
|---|---|
| Film Thickness (mil) | 3.0 |
| Adhesive | Emulsion Acrylic |
| Release Liner | White Clay Coated Kraft |
| Outdoor Durability | Up to 4 years |
Applications
General Formulations lists GF 101 for signage (general, POP and indoor) and transit.
- General Signage
- POP & Indoor Signage
- Transit Advertising
Roll sizes
| GF part # | Size |
|---|---|
| 101-30 | 30″ x 150′ |
| 101-38 | 38″ x 150′ |
| 101-51 | 51″ x 150′ |
| 101-54 | 54″ x 150′ |
| 101-54300 | 54″ x 300′ |
| 101-60 | 60″ x 150′ |
| 101-60300 | 60″ x 300′ |
Per General Formulations, 300' rolls may contain a splice. General Formulations price list note: Curb Taxi Top approved. Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
Can GF 101 laminate be used on any kind of vehicle graphics?
No. GF 101 is ideal for flat or very slight curves. In the cases of vehicles, it is best to use a comformable, long-term laminate that matches the specifications of the wrap (print) vinyl used. GF 100 Series laminates are meant for applications where up to one year of durability is needed. GF 100 series laminates are not meant to be stretched or to conform.
Will a Calendered laminate like GF 101 work on a Cast print vinyl?
No. You can apply a cast laminate to a calendered vinyl, but you should never put a calendered laminate on a cast vinyl. They must be of a similar construction so that over time they shrink at the same rate to avoid delamination.
What roll sizes does DTG offer for GF 101?
DTG offers 30" x 150' (GF 101-30), 38" x 150' (GF 101-38), 51" x 150' (GF 101-51), 54" x 150' (GF 101-54), 54" x 300' (GF 101-54300), 60" x 150' (GF 101-60), 60" x 300' (GF 101-60300).
Related General Formulations products
- GF 100 3.0 mil Gloss Clear Laminate with Clear Permanent Adhesive
- GF 102 3.0 mil Matte Clear Laminate with Clear Permanent Adhesive
- GF 103 5.0 mil Clear Polycarbonate Textured Matte Laminate with Clear Permanent Adhesive
- GF 105 2.0 mil Gloss Optically Clear Laminate with Optically Clear Permanent Adhesive
- GF 108 Tedlar™ by DuPont® 1.0 mil Satin Clear Anti-graffiti UV Laminate with Clear Permanent Adhesive
All General Formulations media at DTG
General Formulations GF 101 technical data sheet (PDF)
Product information from General Formulations (official product page). Specifications may change; check current GF literature for critical applications.
Questions about GF media? Call DTG (Digital Technology Group) in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online.
