Description
Product Highlights
- Ultra-compact, stackable 6-color dye-ink minilab printer
- 4 x 6 inch prints in as little as 14 seconds (Epson)
- 70 mL UltraChrome D6r-S ink bottles
- Wired and wireless connectivity; 1.44-inch LCD
- Can run from a user-provided portable battery (Epson)

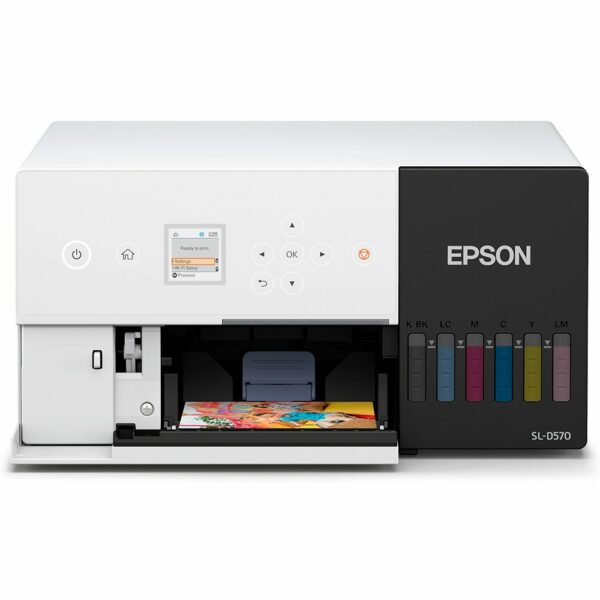

Epson SureLab D570 Professional Minilab Photo Printer: overview
The Epson SureLab D570 is a compact dry-lab printer for event photographers, photo booths, school and sports photography and small retail counters. It prints 4 x 6 inch photos in as little as 14 seconds at 720 x 360 dpi, supports sheets from 3.5 x 5 inches up to 4 x 6 inches, and weighs 38.3 lb without paper and ink, so it moves easily between sites.
It uses six-color UltraChrome D6r-S dye-based ink (Cyan, Light Cyan, Magenta, Light Magenta, Yellow and Black) in 70 mL bottles, which Epson describes as water-, smudge- and fade-resistant with Epson genuine photo media and ink. The printer stacks to save space, has a 1.44-inch LCD, Hi-Speed USB 3.0, 100Base-T Ethernet and wireless (2.4 GHz and 5 GHz), and Epson says it is efficient enough to be powered from a user-provided portable battery. Ink bottles are not included, so order an ink set with the printer. Epson includes a limited warranty and U.S.-based support, and Epson Cloud Solution PORT can monitor printers remotely.
SureLab D570 key specifications
| Print size | Sheets 3.5 x 5 in and 4 x 6 in; max paper width 4 in; max length 6 in |
|---|---|
| Speed (Epson) | 4 x 6 in in as little as 14 seconds at 720 x 360 dpi |
| Max resolution | 1440 x 720 dpi |
| Ink | UltraChrome D6r-S dye ink, 6 colors (C, LC, M, LM, Y, K) |
| Ink bottles | 70 mL (T54C); not included in the box |
| Media | Max sheet capacity 100 sheets; max thickness 0.265 mm; glossy, luster or matte |
| Interfaces | Hi-Speed USB 3.0, 100Base-T Ethernet, 2.4/5 GHz wireless; 1.44 in LCD |
| Weight / size | 38.3 lb; 11.7 x 15.7 x 6 in while printing |
| Noise | Under 49 dB(A) operating |
What the SureLab D570 is used for
- Event, wedding, school and sports photography on-site printing
- Photo booths and kiosks
- Small retail photo counters
- Portable or pop-up photo stations
Who buys the SureLab D570 and what they print
Who buys it, from DTG’s sales and support work in Tampa: Epson SureLab D-series minilab printers like the D570 are bought by event photographers, chain and franchise stores, photo fulfillment companies and photo labs.
What they print on: photo paper only, in gloss, luster or matte. See photo media.
D570 vs D1070 vs D1070DE
Epson’s SureLab dry-lab line has three models on this site. The D570 is the compact, stackable model for 4 x 6 inch work, and Epson says it can run from a user-provided portable battery. The D1070 prints up to 8.3 inches wide from roll and sheet media with 250 mL ink packs. The D1070DE is the D1070 with a duplex feeder for double-sided prints. All three use six-color UltraChrome D6r-S dye ink.
Ink, media, software and service for the SureLab D570
- Ink: UltraChrome D6r-S in 70 mL bottles, for example T54C Black 70 mL (six colors); browse Epson ink.
- Media: SureLab Photo Paper Luster 6 in x 213 ft rolls, Luster 8 in x 213 ft rolls, Gloss 6 in x 213 ft rolls and Luster 4 x 6 in sheets; see photo media and Epson media.
- Workflow: Epson Print Layout and your lab order software (for example Epson OrderController) are the usual ways to submit jobs. Call DTG at 813.889.0660 to discuss RIP and ordering-software options for your D-series workflow; we do not list the Mirage Lab Edition as compatible with this model.
- Color management: spectrophotometers, profiling systems and DTG’s ICC profile library help you match prints to your display and proof.
- Service: Epson Preferred Plus extended service plans are available for the D570 at time of hardware purchase (1-year, 2-year and 4-year); plan terms are set by Epson.
- Service: Epson Preferred Plus extended service plans are available for the D570 series at time of hardware purchase (1-year and 2-year); plan terms are set by Epson.
- Epson US product page for the D570
What DTG does after the sale
Buy your SureLab D570 from DTG (Digital Technology Group) at the DTG Technology Center in Tampa, FL, and you get more than a box:
- Installation and training: available for every printer DTG sells (for a fee).
- Tech support: free toll-free tech support from DTG.
- Color management expertise from DTG’s print specialists.
- Ink, media and support available from DTG.
- More than 30 years of digital printing expertise.
Call a print specialist at 813.889.0660 or contact us online.
SureLab D570 FAQ
How fast does the Epson SureLab D570 print?
Epson lists 4 x 6 inch prints in as little as 14 seconds at 720 x 360 dpi (print-engine speed).
What ink does the D570 use?
Six-color UltraChrome D6r-S dye ink in 70 mL bottles: Cyan, Light Cyan, Magenta, Light Magenta, Yellow and Black.
Are ink bottles included?
No. Epson lists the ink bottles as not included.
What sizes can the D570 print?
Sheets from 3.5 x 5 inches up to 4 x 6 inches.
Where can I buy a D570 in Tampa, FL?
Call DTG (Digital Technology Group) in Tampa at 813.889.0660.
What paper does the SureLab D570 print on?
Photo paper only. DTG’s SureLab customers print on gloss, luster and matte photo papers. Ask DTG which rolls or sheets fit your workflow.
What does DTG provide after I buy a SureLab D570?
Installation and training are available for every printer DTG sells, for a fee. Tech support on DTG’s toll-free line is free. You also get DTG’s color management expertise and more than 30 years of digital printing experience.
Questions about the SureLab D570? Call DTG in Tampa, FL at 813.889.0660 or contact us online.
