Description
Product Highlights
- 36-inch dual-roll printer with six-color UltraChrome XD3 ink including Red
- Adobe Embedded Print Engine for PDF and PostScript 3 files
- A1/D-size prints in as little as 16 seconds (Epson)
- Two roll media loaded at once
- USB 3.0, Gigabit Ethernet, Wi-Fi

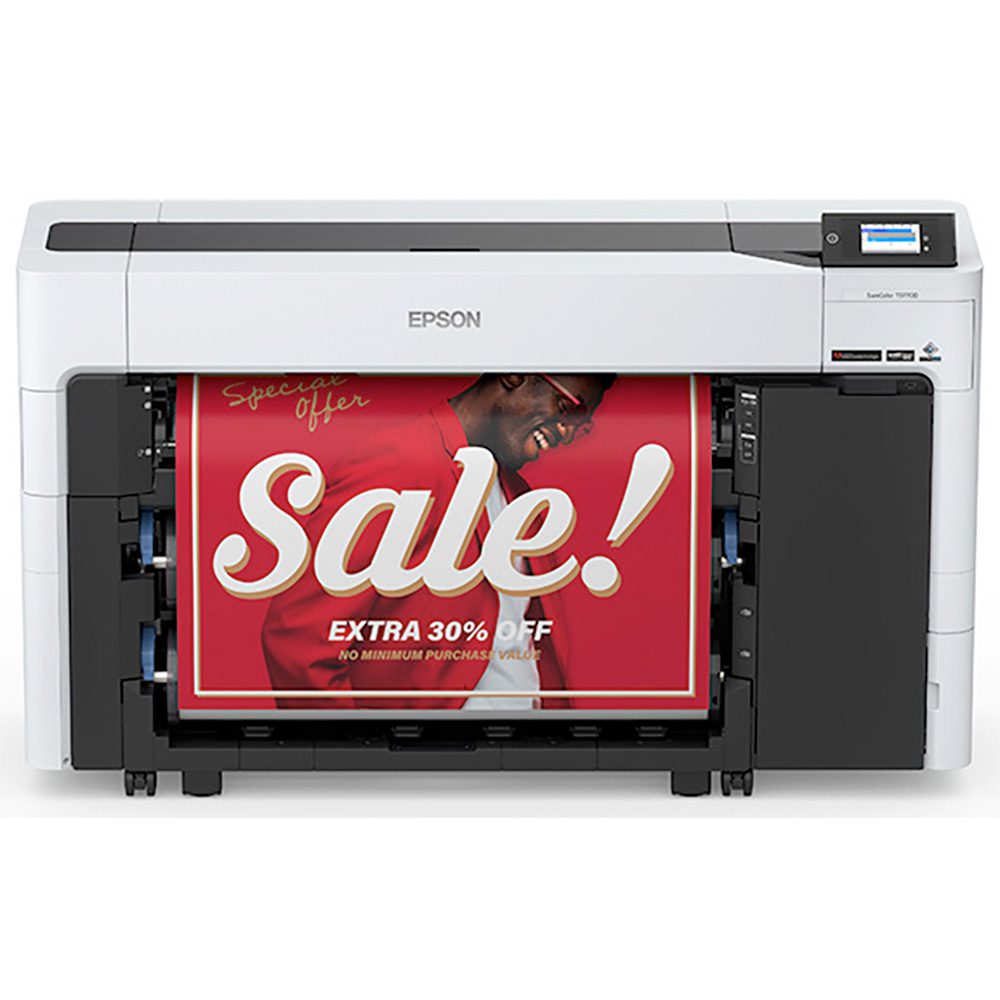

Epson SureColor T5770DR 36-Inch Large-Format Dual-Roll CAD/Technical Printer: overview
The Epson SureColor T5770DR is a 36-inch, dual-roll printer for engineering, architecture, construction and graphics shops that print D- and E-size drawings at production speeds. It includes the Adobe Embedded Print Engine, which processes PDF and PostScript 3 files inside the printer, and loads two rolls so you can keep bond and a second media ready.
The six-color UltraChrome XD3 ink set (Cyan, Magenta, Yellow, Red, Matte Black and Photo Black) and PrecisionCore Micro TFP printhead print at up to 2400 x 1200 dpi, and Epson lists A1/D plain-paper prints in as little as 16 seconds. A 4.3-inch touchscreen, USB 3.0, Gigabit Ethernet and Wi-Fi are standard. The T5770DR weighs 302 lb and measures 65 x 20 x 39 inches, and an optional 960 GB SSD stores jobs on the printer.
SureColor T5770DR key specifications
| Print width | 36 in |
|---|---|
| Printhead | PrecisionCore Micro TFP, 2.64 in |
| Ink | UltraChrome XD3 pigment, 6 colors (C, M, Y, Red, Matte Black, Photo Black) |
| Max resolution | 2400 x 1200 dpi |
| Speed (Epson) | A1/D plain paper in as little as 16 seconds |
| Connectivity | USB 3.0, Gigabit Ethernet, Wi-Fi; 4.3 in touchscreen |
| Rolls | Dual roll |
| Adobe Embedded Print Engine | Included |
| Weight / size | 302 lb; 65 x 20 x 39 in |
| Ink cartridges | Retail 110 mL (T51A), 350 mL (T50S), 700 mL (T50L) |
| Max roll weight | 27 lb |
| Options | 960 GB SSD |
What the SureColor T5770DR is used for
- Architectural, engineering and construction (AEC) drawings, plans and blueprints
- Line drawings, maps and GIS output
- Posters, presentation boards and in-store graphics
- Bond and coated paper, photo paper and matte media printing
Who buys the SureColor T5770DR and what they print
Who buys it, from DTG’s sales and support work in Tampa: Epson SureColor T-series printers like the T5770DR are bought by architecture and engineering firms, franchise print-and-ship stores and quick printers, print-for-pay shops, schools and education departments, and grocery stores.
What they print on: poster paper, matte paper and bond paper. See technical and engineering media; ink, media and support available from DTG.
T5770DR vs T5770DM
Both T5770 models are 36-inch, dual-roll printers on the XD3 engine and include the Adobe Embedded Print Engine. The T5770DR is print-only; the T5770DM adds an integrated 36-inch dual-light scanner and a 960 GB SSD. The 36-inch step down is the T5475 or T5470M; for 44 inches see the T7770D.
Ink, media, software and service for the SureColor T5770DR
- Ink: Epson ink for the T5770DR is UltraChrome XD3 in T51A 110 mL Photo Black, T50S 350 mL Photo Black and T50L 700 mL Photo Black cartridges (six colors per size).
- Media: Epson Singleweight Matte Paper 36 in, Enhanced Matte Paper 36 in, Presentation Matte Paper 36 in and the 36-inch bond and coated rolls under technical and engineering media.
- Workflow: Epson drivers handle AutoCAD, PDF and raster output; for RIP-based color workflows see RIP software and confirm printer support with DTG before ordering.
- Parts and options: maintenance box and 960 GB SSD memory unit.
- Service: Epson Preferred Plus extended service plans are available for the T5770DR at time of hardware purchase (1-year, 2-year and 4-year); plan terms are set by Epson.
- Epson drivers, manuals and support for the T5770DR
- Epson US product page for the T5770DR
What DTG does after the sale
Buy your SureColor T5770DR from DTG (Digital Technology Group) at the DTG Technology Center in Tampa, FL, and you get more than a box:
- Installation and training: available for every printer DTG sells (for a fee).
- Tech support: free toll-free tech support from DTG.
- Ink, media and support available from DTG.
- More than 30 years of digital printing expertise.
Call a print specialist at 656.232.1877 or contact us online.
SureColor T5770DR FAQ
What is the T5770DR?
A 36-inch dual-roll printer with the Adobe Embedded Print Engine and six-color XD3 ink.
Does the T5770DR have a scanner?
No. The T5770DM adds an integrated scanner.
How fast is the T5770DR?
Epson lists A1/D plain paper in as little as 16 seconds.
What ink sizes are available?
110, 350 and 700 mL cartridges in six colors.
Where can I buy it in Tampa, FL?
DTG (Digital Technology Group): 656.232.1877.
What paper do DTG customers print on with the T5770DR?
T-series customers at DTG mostly print on poster paper, matte paper and bond paper. Ink, media and support are available from DTG; ask a print specialist which rolls fit the T5770DR.
What does DTG provide after I buy a T5770DR?
Installation and training are available for every printer DTG sells, for a fee. Tech support on DTG’s toll-free line is free. Ink, media and support are available from DTG, backed by more than 30 years of digital printing experience.
How much maintenance does a SureColor P- or T-series printer need?
Very little. You’ll change ink, load paper and replace the maintenance tank. We recommend cleaning around the capping station and printhead area about every 6 months. Do it a little more or less often depending on how much you print.
Why is my print a slightly different size than my file?
Print length can vary a little depending on your media and settings. Our video with Mirage on print length correction shows why it happens and how to fix it.
Questions about the SureColor T5770DR? Call DTG in Tampa, FL at 656.232.1877 or contact us online.
