Description
Product Highlights
- 36-inch, 4-color technical printer; A1/D-size in as fast as 22 seconds
- High-capacity ink cartridges up to 700 mL
- Stand included
- 4.3-inch touchscreen, USB 3.0, Ethernet, Wi-Fi and Wi-Fi Direct
- Supports ESC/P raster, HP-GL/2 and HP RTL

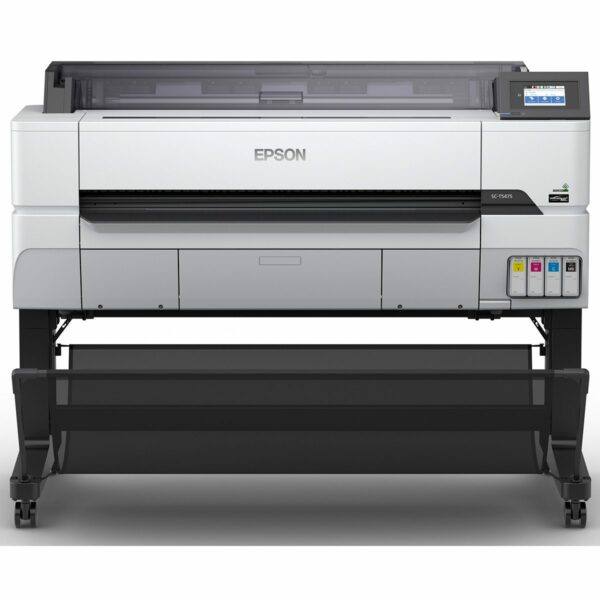

Epson SureColor T5475 36-Inch Wireless Printer: overview
The Epson SureColor T5475 is the 36-inch version of the T3475 platform: a four-color technical printer for engineering, construction and GIS teams that print D-, E- and larger-format drawings. Epson lists A1/D-size prints in as fast as 22 seconds, a 4 pl droplet and 800 nozzles on each of four channels.
Ink cartridges come in 110 mL, 350 mL and 700 mL sizes, with a 110 mL set in the box. The stand is included, and the printer supports ESC/P raster, HP-GL/2 and HP RTL. Connectivity covers USB 3.0, Ethernet, Wi-Fi and Wi-Fi Direct, with a 4.3-inch touchscreen for control. It weighs 168 lb and measures 55 x 28 x 42 inches, and Epson includes one year of on-site service, usually next business day. A 36-inch roll feed spindle is available as an accessory.
SureColor T5475 key specifications
| Print width | 36 in |
|---|---|
| Printhead | 800 nozzles x 4 channels, 4 pl |
| Ink | UltraChrome XD2 pigment, 4 colors |
| Ink cartridges | 110 mL included; retail 110 mL (T41W), 350 mL (T41P), 700 mL (T41N) |
| Speed (Epson) | A1/D-size in as fast as 22 seconds |
| Languages | ESC/P raster, HP-GL/2, HP RTL |
| Interfaces | USB 3.0, Ethernet, Wi-Fi, Wi-Fi Direct; 4.3 in touchscreen |
| Weight / size | 168 lb; 55 x 28 x 42 in |
| Stand | Included |
| Warranty | 1-year on-site service, usually next business day (Epson) |
What the SureColor T5475 is used for
- Architectural, engineering and construction (AEC) drawings, plans and blueprints
- Line drawings, maps and GIS output
- Posters, presentation boards and in-store graphics
- Bond and coated paper, photo paper and matte media printing
Who buys the SureColor T5475 and what they print
Who buys it, from DTG’s sales and support work in Tampa: Epson SureColor T-series printers like the T5475 are bought by architecture and engineering firms, franchise print-and-ship stores and quick printers, print-for-pay shops, schools and education departments, and grocery stores.
What they print on: poster paper, matte paper and bond paper. See technical and engineering media; ink, media and support available from DTG.
T5475 vs T5470M vs T5770DR
The T5475 is print-only. If you want a scanner for copy and scan-to-file work at 36 inches, the T5470M uses the same family of cartridges with an integrated 36-inch scanner. If you want six-color XD3 ink with Red, dual rolls and the Adobe Embedded Print Engine, see the T5770DR. For 24 inches, see the T3475.
Ink, media, software and service for the SureColor T5475
- Ink: Epson ink for the T5475 is UltraChrome XD2 in T41W 110 mL Black, T41P 350 mL Black and T41N 700 mL Black cartridges (four colors per size).
- Media: Epson Singleweight Matte Paper 36 in, Enhanced Matte Paper 36 in, Presentation Matte Paper 36 in and the 36-inch bond and coated rolls under technical and engineering media.
- Workflow: Epson drivers handle AutoCAD, PDF and raster output; for RIP-based color workflows see RIP software and confirm printer support with DTG before ordering.
- Parts and options: maintenance tank and 36-inch roll feed spindle.
- Service: Epson Preferred Plus extended service plans are available for the T5475 at time of hardware purchase (1-year, 2-year and 4-year); plan terms are set by Epson.
- Epson drivers, manuals and support for the T5475
- Epson US product page for the T5475
What DTG does after the sale
Buy your SureColor T5475 from DTG (Digital Technology Group) at the DTG Technology Center in Tampa, FL, and you get more than a box:
- Installation and training: available for every printer DTG sells (for a fee).
- Tech support: free toll-free tech support from DTG.
- Ink, media and support available from DTG.
- More than 30 years of digital printing expertise.
Call a print specialist at 656.232.1877 or contact us online.
SureColor T5475 FAQ
What is the print width of the T5475?
36 inches.
How fast is the Epson T5475?
Epson lists A1/D-size prints in as fast as 22 seconds, print-engine speed only.
What ink does the T5475 use?
Four-color UltraChrome XD2 pigment ink in 110, 350 and 700 mL cartridges.
Is the stand included?
Yes.
Where can I buy the T5475 in Tampa, Florida?
DTG (Digital Technology Group): 656.232.1877.
What paper do DTG customers print on with the T5475?
T-series customers at DTG mostly print on poster paper, matte paper and bond paper. Ink, media and support are available from DTG; ask a print specialist which rolls fit the T5475.
What does DTG provide after I buy a T5475?
Installation and training are available for every printer DTG sells, for a fee. Tech support on DTG’s toll-free line is free. Ink, media and support are available from DTG, backed by more than 30 years of digital printing experience.
Where do I download the Epson SureColor T5475 driver?
Epson posts the current T5475 drivers and manuals for Windows and Mac on its official Epson SureColor T5475 support page. If you bought your T5475 from DTG, tech support on DTG’s toll-free line is free. Call DTG in Tampa at 656.232.1877 with driver questions.
How much maintenance does a SureColor P- or T-series printer need?
Very little. You’ll change ink, load paper and replace the maintenance tank. We recommend cleaning around the capping station and printhead area about every 6 months. Do it a little more or less often depending on how much you print.
Why is my print a slightly different size than my file?
Print length can vary a little depending on your media and settings. Our video with Mirage on print length correction shows why it happens and how to fix it.
Questions about the SureColor T5475? Call DTG in Tampa, FL at 656.232.1877 or contact us online.
