Description
The ColorEdge CG3200X is the first OLED model in the ColorEdge family, bringing EIZO’s color management expertise to QD-OLED technology. It delivers ColorEdge-class precision for workflows mastered in HLG, PQ, or SDR. The 31.5-inch screen offers 4K UHD (3840 x 2160) resolution, a QD-OLED panel with 1000 cd/m2 peak brightness, 99% DCI-P3 coverage, a built-in calibration sensor, and USB Type-C with up to 60 W power delivery.
Looking for a 30.5-inch DCI 4K ColorEdge with a built-in calibrator today? See the CG3100X. Choosing a ColorEdge for print work? Read our Eizo ColorEdge photo and fine-art print-proofing guide.
Call DTG toll-free at 800.681.0024 to confirm availability.
True HDR and ABL Control
The CG3200X features a QD-OLED panel delivering 1000 cd/m2 peak luminance, 300 cd/m2 full-screen white, and a 1,500,000:1 contrast ratio. It supports HLG for broadcasting and PQ for film and streamed content.
Higher Luminance Thresholds
Higher luminance thresholds reduce unnecessary automatic brightness limiting and preserve brightness across more of the image. Highlight Dimming reduces brightness only in luminous areas, while Uniform Dimming adjusts brightness evenly across the screen. ABL Safe View reduces the display area to 10% or 25% for previewing content at its intended brightness.
Panel Care
The AGLR (Anti-Glare, Low-Reflection) screen reduces glare and ambient reflections. Screen saver, Pixel Shift, Pixel Cleaning, and Thermal Modulation functions help reduce the risk of image retention. Custom contrast can be set from 500:1 to 2000:1.
Reliable Color Management
Built-In Sensor to Automate Your Workflow
The built-in calibration sensor maintains color accuracy without a third-party calibration device, and its design is enhanced for quieter operation. EIZO ColorNavigator 7 supports scheduled automatic recalibration, simultaneous calibration of color modes, and correlation with high-end spectrophotometers.
Sync Signal
Sync Signal automatically switches brightness, gamma (EOTF), and color gamut according to input-signal metadata.
Color Precision
The wide color gamut covers 99% of DCI-P3, supports BT.2020, and covers 94% of Adobe RGB. The monitor provides 10-bit simultaneous display from a 24-bit LUT and includes a Factory Report. EIZO’s digital uniformity equalizer (DUE) technology corrects deviations across the screen. Pixel Inspection and Nearest Neighbor scaling preserve source pixel information when required.
Design and Connectivity

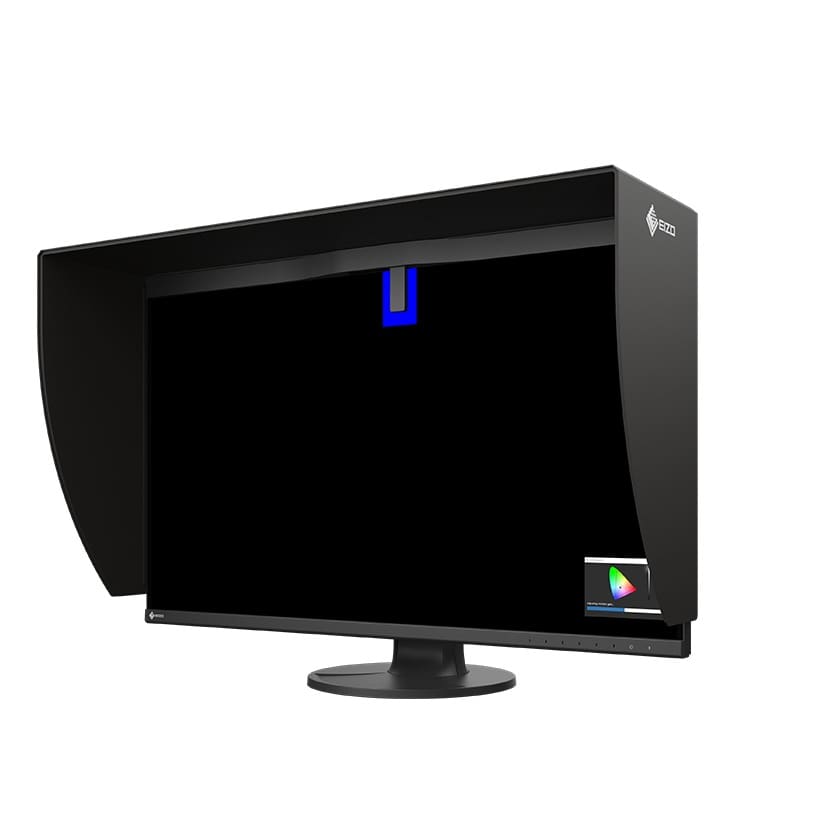

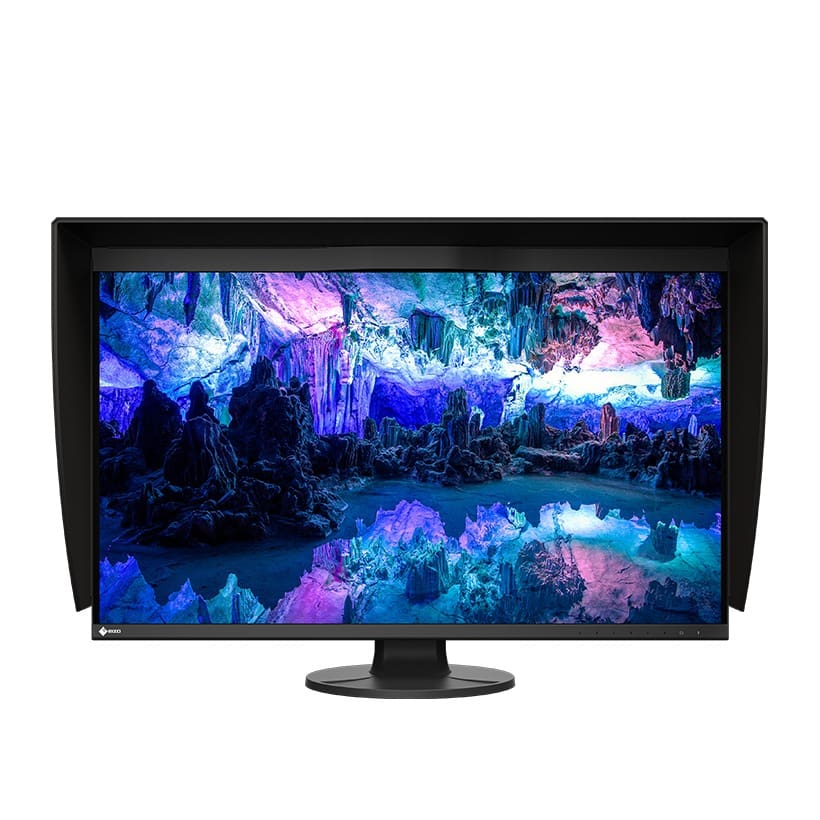

The 2-sided frameless design houses the built-in calibration sensor, and the included magnetic shading hood reduces glare. USB Type-C transmits video, USB data, and up to 60 W of power delivery through one cable. DisplayPort and HDMI inputs, two USB Type-A ports, a headphone jack, and a built-in KVM switch are included.
Commitment to Quality
The monitor is backed by a 5-year manufacturer’s warranty, limited to 30,000 hours. The OLED panel is warranted for 1 year and 10,000 hours; image retention or burn-in resulting from prolonged high-brightness or static images is not covered. EIZO guarantees zero bright sub-pixels for six months from purchase.
Specifications
| Model | CG3200X-BK |
| Panel | QD-OLED (Anti-Glare, Low-Reflection), 31.5″ (79.9 cm) |
| Native resolution | 3840 x 2160 (16:9) |
| Viewable image size | 696.6 x 391.8 mm |
| Pixel pitch / density | 0.181 x 0.181 mm / 140 ppi |
| Display colors | 1.07 billion colors, 10-bit display (24-bit LUT) |
| Viewing angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 1000 cd/m2 peak; 300 cd/m2 full-screen white |
| Contrast ratio (typical) | 1,500,000:1 |
| Response time (typical) | 0.1 ms (gray-to-gray) |
| Color gamut (typical) | Adobe RGB 94%, DCI-P3 99% |
| Input terminals | USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3) |
| Scanning frequency (H / V) | USB Type-C, DisplayPort: 25–137 kHz / 23–61 Hz; HDMI: 15–136 kHz / 23–61 Hz |
| USB upstream | USB 5Gbps Type-C (DisplayPort Alt Mode, Power Delivery source 60 W max.), USB 5Gbps Type-B |
| USB downstream | USB 5Gbps Type-A x 2 |
| Audio output | Headphones (stereo mini jack) |
| Power input | AC 100–240 V, 50/60 Hz |
| Power consumption | Typical 65 W; maximum 275 W; standby 0.5 W or less |
| Built-in calibration sensor | Yes |
| Preset modes | User, BT.709, DCI-P3, PQ_DCI-P3, PQ_BT.2100, HLG_BT.2100, sRGB, Display P3, CAL1, CAL2 |
| Dimensions (landscape, W x H x D) | 717.4 x 453.6–595.7 x 245 mm; without stand 717.4 x 442.6 x 86.7 mm; with hood 727.4 x 458.6–600.7 x 364.2 mm |
| Net weight | 10.3 kg; without stand 7.3 kg; with hood 11.0 kg |
| Stand | Height adjustment 142.1 mm; tilt 35° up / 5° down; swivel 344°; pivot 90° |
| VESA mounting | 100 x 100 mm |
| Operating environment | 0–35°C; humidity 20–80% (non-condensing) |
| Certifications and standards | CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), VCCI-B, RCM, RoHS, WEEE (per EIZO; contact EIZO for latest) |
| Color management software | ColorNavigator 7 supported |
| Supplied accessories | USB Type-C cable (2 m), HDMI cable (2 m), AC power cord, USB Type-A to Type-B cable (2 m), setup guide, Factory Report, monitor hood, warranty card (may vary by country) |
| Warranty | 5 years (30,000 hours); OLED panel 1 year / 10,000 hours; zero bright sub-pixels for six months from purchase |
View the CG3200X on EIZO’s website • Dimension drawing (PDF)
Questions about the CG3200X or timing? Call Digital Technology Group toll-free at 800.681.0024.
The Eizo ColorEdge CG3200X is the first OLED model in the ColorEdge family: a 31.5-inch 4K UHD (3840 x 2160) QD-OLED color management monitor with 1000 cd/m² peak brightness, 99% DCI-P3, HLG and PQ HDR presets, a built-in calibration sensor, and USB Type-C with up to 60 W power delivery. Call DTG at 800.681.0024 to confirm availability.
EIZO ColorEdge CG3200X FAQ
What is the EIZO ColorEdge CG3200X?
The EIZO ColorEdge CG3200X (DTG part number CG3200X-BK, EIZO model CG3200X-BK) is a 31.5-inch 3840 x 2160 (16:9) color management monitor with Adobe RGB 94% and DCI-P3 99% coverage (EIZO, typical), a built-in calibration sensor and USB-C with up to 60 W power delivery.
Does the EIZO ColorEdge CG3200X have a built-in calibration sensor?
Yes. EIZO lists a built-in calibration sensor, so the monitor can calibrate itself (SelfCalibration) on a schedule with ColorNavigator 7, without an external device.
What color gamut does the EIZO ColorEdge CG3200X cover?
EIZO lists Adobe RGB 94%, DCI-P3 99% (typical). Display colors: 1.07 billion colors, 10-bit display (24-bit LUT).
Does the EIZO ColorEdge CG3200X support HDR?
Yes. EIZO lists HDR gamma support for HLG and the PQ curve. Preset modes: User, BT.709, DCI-P3, PQ_DCI-P3, PQ_BT.2100, HLG_BT.2100, sRGB, Display P3, CAL1, CAL2.
What inputs does the EIZO ColorEdge CG3200X have?
EIZO lists these video inputs: USB Type-C, DisplayPort, HDMI. The USB-C port supplies up to 60 W of power to a connected laptop. USB downstream: USB 5Gbps: Type-A x 2.
Is a light-shielding hood included with the EIZO ColorEdge CG3200X?
Yes. EIZO lists a monitor hood in the supplied accessories.
How bright is the EIZO ColorEdge CG3200X?
EIZO lists 1000 cd/m² peak and 300 cd/m² full-screen white brightness, 1,500,000:1 contrast and 0.1 ms (gray-to-gray) response time (typical values).
How big and heavy is the EIZO ColorEdge CG3200X?
EIZO lists 717.4 x 453.6 – 595.7 x 245 mm (W x H x D, landscape, with stand) and a net weight of 10.3 kg (about 22.7 lb) with the stand. Height adjustment range: 142.1 mm.
What warranty comes with the EIZO ColorEdge CG3200X?
EIZO lists a 5-year manufacturer's warranty for ColorEdge monitors (usage time limited to 30,000 hours) and zero bright sub-pixels for six months from the date of purchase. The OLED panel itself is warranted for 1 year (usage time limited to 10,000 hours), and image retention or burn-in from prolonged high-brightness or static images is not covered.
Where can I buy the EIZO ColorEdge CG3200X?
Order it from DTG (Digital Technology Group) online or call a DTG specialist toll-free at 800.681.0024. Tech support on DTG's toll-free line is free.
Specifications from EIZO's EIZO ColorEdge CG3200X product page (checked October 28, 2026). Specifications are subject to change by EIZO. Questions? Call DTG toll-free at 800.681.0024 or contact us online.
CG3200X-dimension-drawing
