Description

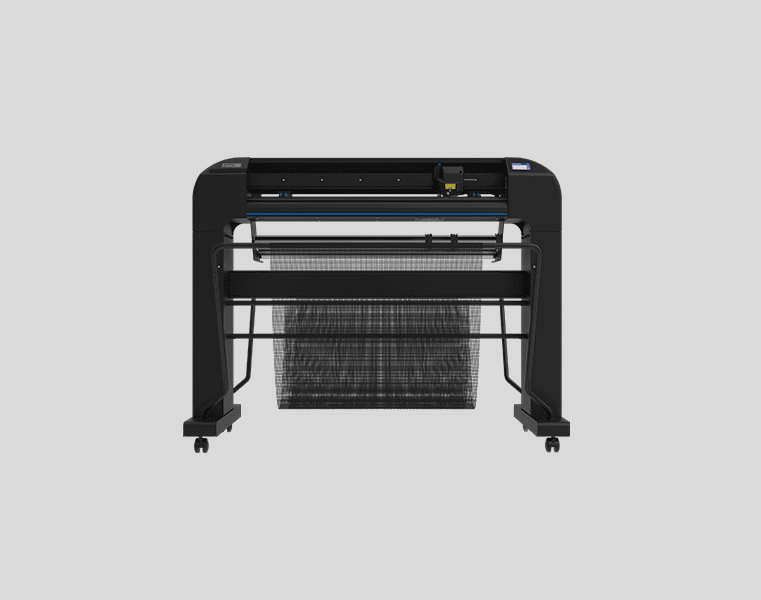

Summa S3TC75 S Class 3 Tangential Camera Cutter, 30". The S3TC75 is built as the ultimate DTF and specialty film cutter in a narrow width. It combines tangential power with camera-based mark reading, so even the most sensitive films cut cleanly, without stress for the operator.
What the S3TC75 is made for
- DTF sheets and rolls on PET film
- Flex and flock for apparel decoration
- Holographic, mirrored and metallic vinyls
- Specialty labels and small decals with intricate detail
S3TC75 specifications
| Summa model | S3TC75 |
|---|---|
| Maximum media width | 74.2 cm / 29.2" |
| Cutting technology | Tangential knife |
| Max cutting thickness | 1.2 mm / 0.047" |
| Pinch rollers | 3 |
| Roll handling (optional) | Optional frictionless roll feeder to minimize media contact and prevent surface damage on sensitive films such as DTF PET. |
| Cutting force | Up to 1kg |
| Print registration | OPOS mark reading for precise contour tracking |
| Compensation | OPOS XY technology to adjust cut path to follow potential deformations in the graphic |
| Connectivity | USB, Wi-Fi and Ethernet |
| Software | GoSign workflow management, compatible with over 50 RIP Softwares |
Why choose the S3TC75
Camera guided accuracy on difficult media
The camera reads marks quickly and reliably on PET, mirrored, metallic and holographic films. Registration stays intact, even when prints shift slightly.
Tangential power for clean edges
Blade orientation is fully controlled. Corners close properly. Small shapes hold. Weeding and peeling become predictable steps.
Contact free stability for DTF
Camera guidance reduces the need for physical probing on sensitive films, helping to maintain surface quality and registration on DTF sheets and rolls.
Compact, dedicated powerhouse
The footprint fits easily into a DTF or textile embellishment cell, close to printers and heat presses, turning printed rolls into ready-to-transfer output.
Source: Summa S3TC75 product page (summa.com).
Questions about this Summa product? Call a DTG specialist at 800.681.0024 or email info@dtgweb.com.
S3TC75 FAQ
What cutting technology does the S3TC75 use?
Tangential knife, per Summa.
Does it support print-and-cut?
OPOS mark reading for precise contour tracking
Where can I buy it?
From DTG (Digital Technology Group) in Tampa, Florida; call 800.681.0024.
