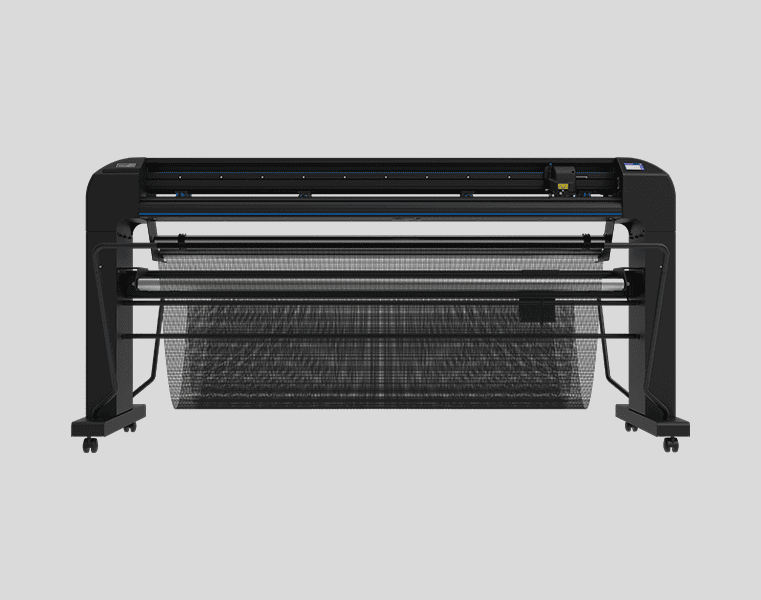

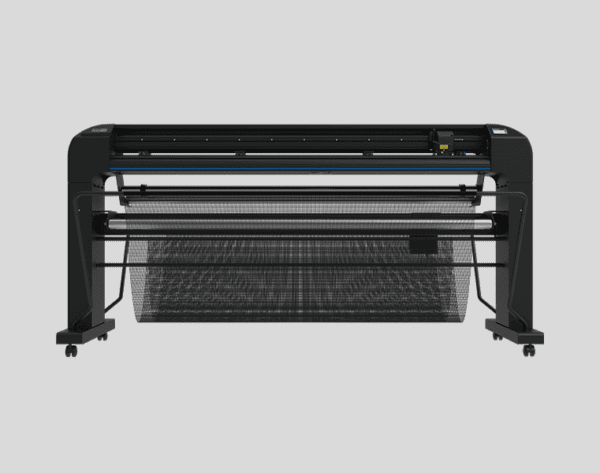

Summa S3TC160 S Class 3 Tangential Camera Cutter, 62″

$14,190.00 or finance as low as $283.80/monthApply Now

  • Summa S3TC160 S Class 3 Tangential Camera Cutter, 62"
  • Maximum media width: 158 cm / 62.2"
  • Cutting technology: Tangential knife
  • Max cutting thickness: 1.2 mm / 0.047"
Add to Wishlist
Add to Wishlist
SKU: S3TC160

Description

The Summa S3TC160 S Class 3 Tangential Camera Cutter, 62″ is Summa’s S3TC160 — the S3 160 S3 TC Series performance cutting head with OPOS camera.

Summa’s brochure describes the Summa S3 160 as the largest roll-cutter size in the S3 Series, “tailored to the professional user who wants maximum flexibility.” The key-features text says it handles media up to 158 cm (62.2"), plus 7 cm (2.8") in oversized mode.

Summa’s brochure says the S3 TC models “are the most advanced cutters of the S3 Series” and that “their high-precision cutting head can now carry two tools at once. This allows you to cut and crease or cut and draw without changing tools.” The cutting-technologies section describes the TC Series as “Performance Cutting Head & OPOS Camera” and says the head can carry two tools, “allowing FlexCut and kiss-cut in combination with creasing or drawing. All without changing tools.” The comparison table lists S3 TC Series cutting technology as True Tangential Knife.

Summa’s S3TC series page describes the S3TC as pairing a tangential cutting head with camera-based mark detection. The same page’s DTF section says the S3 TC75 “is engineered to remove those risks from the DTF workflow,” that tangential cutting “delivers clean, controlled cuts on single-layer PET film,” and that “the integrated camera reliably reads white registration marks on translucent media.” It also says the S3 TC75, “combined with a frictionless roll feed and dedicated roll-up system,” is intended to keep DTF prints stable for longer runs.

The S3 technical specifications table lists knife pressure as “Drag Knife: Up to 400 grams / Tangential Knife: Up to 1000 grams,” and lists extra pen or creaser pressure of up to 1000 grams on the S3 75 and S3 160 columns — the sizes published with a TC cutting head. The same table lists TC cutting-head tools as a creasing tool, fiber pen, and ballpoint pen.

The brochure’s servo-powered roll-up section is titled “Servo-powered Roll-up System | S3 75, S3 140 & S3 160.” It says that after finishing a job, “the system will roll up the artwork neatly and prepare the machine for the next one,” and that “the integrated panelling feature splits long-length runs into shorter consecutive tasks.” The S Class 3 options table lists 395-746 as the roll-up system for S3 160 “with one pair of core holders.”

The S3 160 key-features text asks, “Need even more cutting power?” and says Twin X “offers the ultimate solution by seamlessly integrating the Summa S3 160 with the F1612 flatbed cutter.”

Included software on the S3 technical specifications table is Summa GoSign Software and Summa Cutter Control, with plug-ins for Illustrator, CorelDraw, and MacSign. The brochure says “GoSign is your first choice cutting software designed for the Summa roll cutters” and that it allows you to manage a preferred workflow with flexibility.

S3TC160 specifications

These figures come from Summa’s S3 technical specifications table and the S3 size-class pages in the 2026 vinyl cutter brochure (RevEN(US)25.10). Media width and maximum working width are listed separately in that table; they are not the same measurement.

Summa model S3TC160
S3 size class S3 160
Cutting technology True Tangential Knife (TC performance cutting head and OPOS camera)
Dimensions 225 x 69 x 111 cm (88.6" x 27.2" x 43.7")
Media width 17 to 168 cm (6.7" to 66.1")
Max. working width 158 cm x 50 m (62.2" x 164 ft); oversized mode allows a wider cutting area of ±7 cm (2.8")
Comparison-table maximum media width 168 cm (66")
Pinch rollers 4
Alignment OPOS X – OPOS Xtra; barcode job recognition; up to 2 × 64 marks on the X-line; Y-Line compensation
Tracking performance 12 m (40 ft) max. within guaranteed specifications for media less than 762 mm (30"); 4 m (13 ft) max. for media larger than 762 mm (30"). Oversized mode: tracking no longer guaranteed.
Media thickness 0.05 mm (0.002") to 0.25 mm (0.01"); up to 0.8 mm (0.03") with sandblast drag knife; up to 1.2 mm (0.047") with sandblast tangential knife
Accuracy 0.2% of movement or 0.25 mm (0.010"), whichever is greater
Speed Up to 1440 mm/s (56"/s) diagonal
Acceleration Up to 4.25 G diagonal
Knife pressure Drag knife: up to 400 grams / tangential knife: up to 1000 grams
Other features FlexCut (cutting through)
Connectivity Ethernet, USB, WIFI
Power requirements 100–120 / 220–240 VAC, 50/60 Hz, 85 VA maximum
Included software Summa GoSign Software, Summa Cutter Control; plug-ins for Illustrator, CorelDraw, MacSign
Extra pen or creaser pressure Up to 1000 grams
TC cutting head tools Creasing tool / fiber pen / ballpoint pen

Related Summa S Class 3 products

Sources: Summa 2026 Vinyl Cutter Brochure (RevEN(US)25.10); Summa S3TC series page.

FAQ

What cutting technology does the S3TC160 use?

True Tangential Knife (TC performance cutting head and OPOS camera), as listed for the S3 TC Series in Summa’s 2026 vinyl cutter brochure.

What are the official S3 160 media and working widths?

The S3 technical specifications table lists media width 17 to 168 cm (6.7" to 66.1") and maximum working width 158 cm x 50 m (62.2" x 164 ft). Oversized mode adds ±7 cm (2.8"); tracking is not guaranteed in oversized mode. The comparison table’s maximum media width for this size is 168 cm (66").
