Description

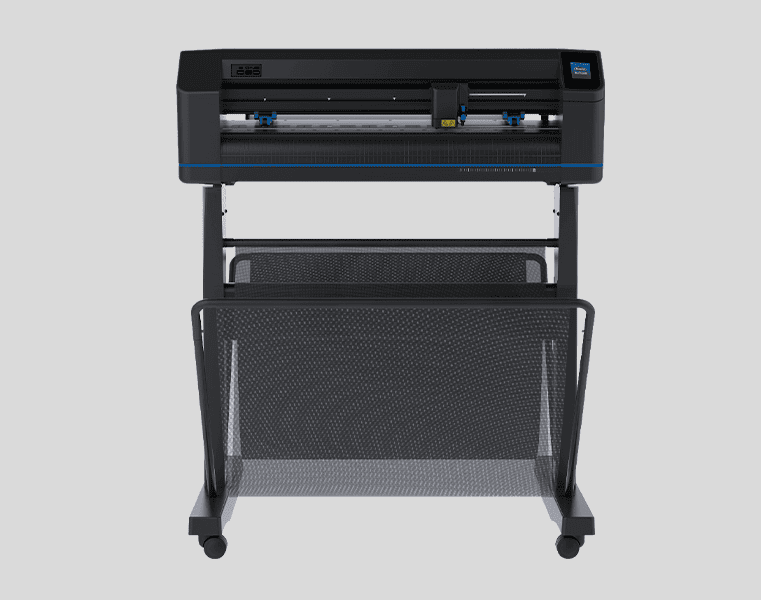

The Summa S1D60 S One Desktop Drag-Knife Cutter is Summa’s smallest S1 Series vinyl roll cutter. This listing’s catalog SKU is S1D60-2; Summa’s published brochure identifies the model as S1 D60 / S1D60.
Summa’s 2026 vinyl cutter brochure describes the S1 D60 as “the ideal cutting solution for startup sign makers who want to automate their cutting workflow and extend their cutting applications.” It also says the machine “is the perfect choice for starters and professionals alike. It is compact, lightweight, and adored by flex and flock users and for label(stock) cutting.”
Key benefits printed on the S1 D60 page include advanced cutting technology, ergonomic design, user-friendly features, the latest alignment method, tracking performance, connectivity by USB, Ethernet, and WiFi (region-dependent), Summa GoSign software, desktop use, automation through PostNet Barcode, and an optional stand / basket. The brochure adds that the cutter “can be easily configured to suit your needs with the stand and/or basket options” and that factory-installed extra pinch rollers are offered to help media stay flat.
Published media-width, maximum working-width, and overall-dimension figures for the S1 D60 vary across brochure tables, and some printed metric/inch pairs do not convert to each other. The dedicated technical table is labeled “S1 D60 (World excl. USA).” This US catalog listing does not have a separately labeled USA specification in that brochure. Those conflicting measurements are omitted here pending an exact USA-labeled source, rather than selecting one printed set or converting another.
An oversized mode is listed; it allows a wider cutting area of about 6 cm (2.36"). In oversized mode, tracking performance is no longer guaranteed.
The S1 Media Add-on Options table lists 393-1125 as “Stand for S1D60 model,” 393-1124 as “Basket for S1D60 model,” 393-1100 as “Stand with Basket for S1D60 model,” 393-1012 as “Extra Pinch Roller (Factory Installed),” and 393-1140 as “Tray One Sheet Feeder for S1D60 model.” The brochure says Tray One “is compatible and retrofittable with the S1 D60 model” and supports common copier sizes A4, A3, SRA3, SA3, Letter, Tabloid, and Tabloid Extra.
| Catalog SKU | S1D60-2 |
|---|---|
| Published model | S1 D60 / S1D60 |
| Cutting technology | Drag knife |
| Alignment | OPOS X – OPOS Xtra; barcode job recognition; up to 2 × 64 marks on the X-line; Y-Line compensation |
| Tracking performance | 8 m (26 ft) max. within guaranteed specifications for media less than 762 mm (30"); 4 m (13 ft) max. for media larger than 762 mm (30") |
| Media thickness (standard range) | 0.05 mm to 0.25 mm (0.002" to 0.010") |
| Accuracy | 0.2% of move or 0.25 mm (0.010"), whichever is greater |
| Speed | Up to 1131 mm/s (44"/s) diagonal |
| Acceleration | Up to 3 G diagonal |
| Knife pressure | 0 to 600 gr |
| Pinch rollers (combined S1 table) | 2 |
| Other features | FlexCut (cutting through); oversized mode as noted above |
| Connectivity | Ethernet, USB, WiFi (region dependent) |
| Power requirements | 100–240 VAC, 50/60 Hz |
| Included software | Summa GoSign Software, Summa Cutter Control; plug-ins for Illustrator, CorelDraw, MacSign |
| Media / working width / overall dimensions | Omitted pending an exact USA-labeled source; see note above |
Related Summa products
- S1D120
- S1D140
- S1D160
- 9TL89-67041 standard drag knife 36°
- 391-231 drag knife 60°
- 391-358 sandblast drag knives
Source: Summa 2026 Vinyl Cutter Brochure (RevEN(US)25.10). Status: partial — US/catalog media, working-width, and dimension figures are not confirmed from a USA-labeled manufacturer table.
FAQ
Why aren’t media and working widths listed on this page?
Summa’s brochure prints more than one set of those figures, including a table labeled “S1 D60 (World excl. USA),” and some pairings do not convert consistently. This page keeps the specifications that agree and omits the conflicting measurements instead of guessing which set applies to this US listing.
What cutting technology does the S1 D60 use?
Drag knife, per the S1 D60 technical specifications in Summa’s 2026 vinyl cutter brochure.
