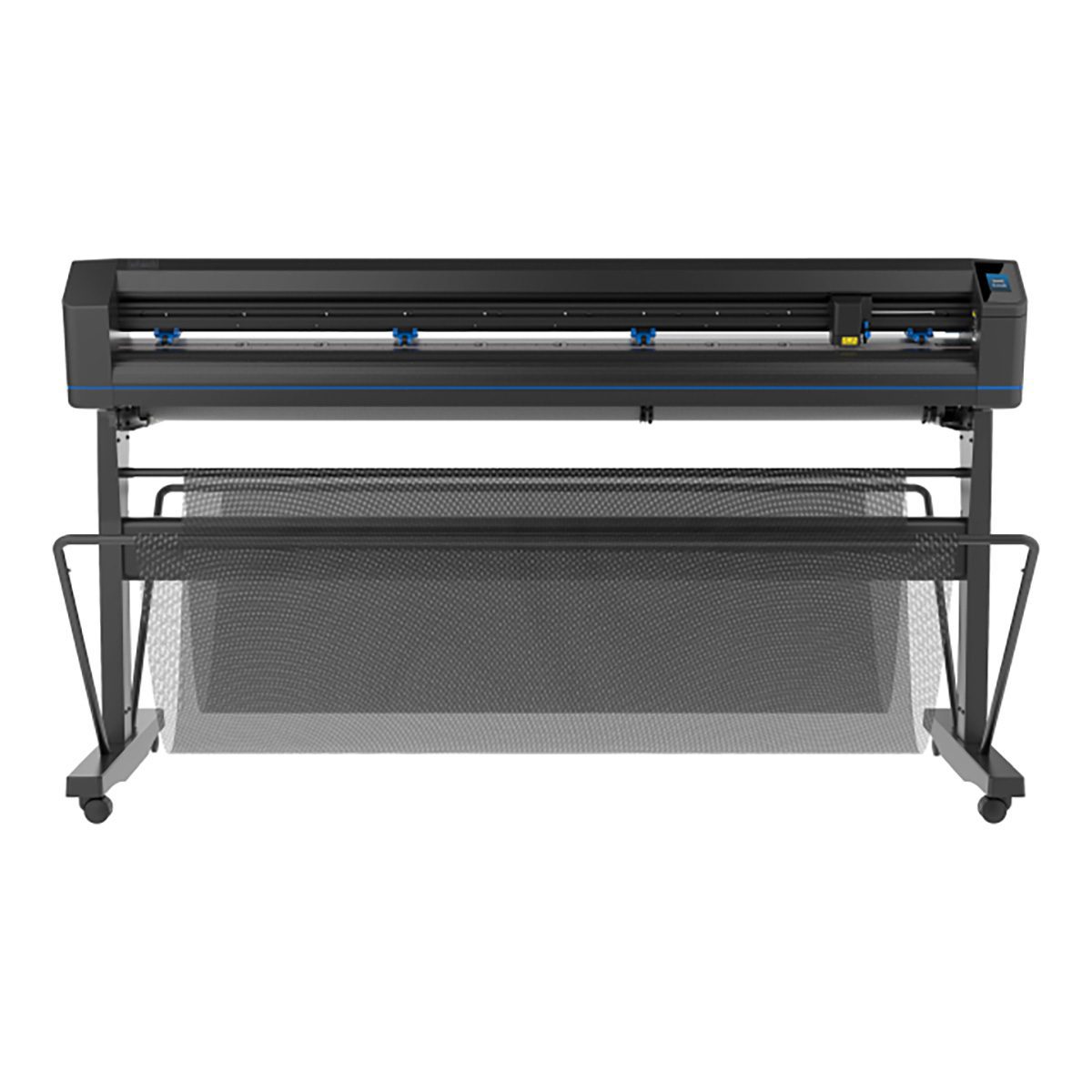

Summa S1D160 S One Drag-Knife Vinyl Cutter, 62.2" working width, a drag-knife roll cutter from Summa’s S One series. Specifications below are from Summa.
Summa S1D160 S One Drag-Knife Vinyl Cutter, 62.2" working width specifications
| Summa model | S1D160 |
|---|---|
| Series | S One (S1D) drag-knife roll cutter |
| Dimensions | 77.2" x 27.7" x 43.8" / 196 x 70.4 x 111.2 cm |
| Media width | 7.4" to 66.5" / 18.7 to 169 cm |
| Max working width | 62.2" x 164 ft / 158 cm x 50 m |
| Media thickness | 0.002" to 0.010" / 0.05 mm to 0.25 mm |
| Speed | Up to 1131 mm/s (44"/s) diagonal |
| Acceleration | Up to 3G diagonal |
| Knife pressure | 0 to 600 gr |
| Cutting technology | Drag knife |
| Pinch rollers | 3 |
Source: Summa S1D160 product page (summa.com).
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Summa S1D160 S One Drag-Knife Vinyl Cutter, 62.2" working width FAQ
What is the maximum working width?
62.2" x 164 ft / 158 cm x 50 m, per Summa.
How fast does it cut?
Up to 1131 mm/s (44"/s) diagonal, per Summa.
What media thickness can it cut?
0.002" to 0.010" / 0.05 mm to 0.25 mm, per Summa.
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024.
