HP Latex 630 W Printer

Description

Product Highlights

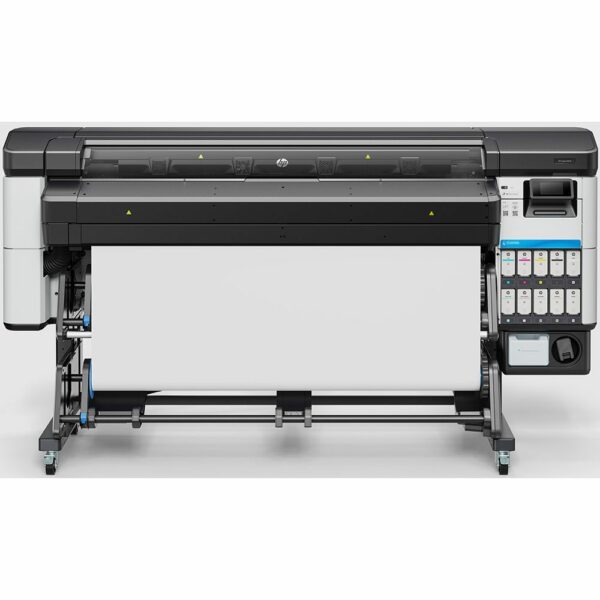

What is the HP Latex 630 W (171K6A)?

The HP Latex 630 W is the white-ink version of the HP Latex 630: a 64-inch roll-to-roll printer with nine 1 L water-based HP Latex Ink cartridges (the standard color set plus white) and six printheads. HP lists white spot, overflood, underflood and three-layer modes, and the printer weighs 236 kg. DTG in Tampa, FL sells it for shops that print on clear film, colored media or dark media and need white as a spot color or underlay.

HP Latex 630 W: overview

White speeds listed by HP are 6 m²/hr (spot, 100%), 3 m²/hr (overflood, 100%), 2 m²/hr (underflood, 100%) and 1 m²/hr (three layers, 160%). Color speeds match the 630: 35 m²/hr in 2-pass, 18 in 4-pass, 14 m²/hr (about 150 ft²/hr) in standard 6-pass, 11 in 8-pass, 8 in 12-pass and 7 in 14-pass for backlits and textiles.

The six printheads are cyan/black, magenta/yellow, light cyan/light magenta, white, Optimizer and Overcoat. The printer includes a take-up reel, an automatic horizontal cutter for trimming (HP recommends a test and limits it to thinner banners and canvas), HP PrintOS tools and HP SAi Flexi RIP Basic, and it ships with a white ink module and an empty cartridge for white ink recirculation.

How the HP Latex 630 W differs from the 630 and the 730 W

Compared with the HP Latex 630, the 630 W adds the white cartridge and printhead, a white ink module and the recirculation cartridge, and its printer weight is 236 kg against 230 kg. The HP Latex 630 W Print and Cut Plus Solution is the same printer bundled with the HP Latex 64 Plus Cutter. Compared with the HP Latex 730 W, the 630 W has six printheads where HP lists ten, and HP lists an embedded spectrophotometer on the 730 W but not on the 630 W.

More HP Latex printers at DTG: HP Latex 630, HP Latex 630 Print and Cut Plus, HP Latex 630 W Print and Cut Plus, HP Latex 730, HP Latex 730 W, HP Latex 830, HP Latex 830 W.

HP Latex 630 W key specifications

Max media width	64 in (1,625 mm); rolls 457 to 1,625 mm (580 to 1,625 mm with full support)
Media handling	One roll, max 42 kg, 250 mm outer diameter; thickness up to 0.5 mm; roll feed, take-up reel, automatic horizontal cutter
Ink	Water-based HP Latex Inks in 1 L cartridges
Ink cartridges	9: black, cyan, light cyan, light magenta, magenta, yellow, white, Optimizer, Overcoat
Printheads	6: cyan/black, magenta/yellow, light cyan/light magenta, white, Optimizer, Overcoat
Speed, color (HP)	35 m²/hr (2-pass); 18 (4-pass); 14 standard (6-pass, about 150 ft²/hr); 11 (8-pass); 8 (12-pass); 7 backlits and textiles (14-pass)
Speed, white (HP)	6 m²/hr spot (100%); 3 overflood (100%); 2 underflood (100%); 1 for three layers (160%)
Print resolution	Up to 1200 x 1200 dpi; 95% of colors under 3 dE2000 print-to-print repeatability (HP)
Connectivity	Gigabit Ethernet (1000Base-T)
Power	200 to 240 V auto-ranging, 50/60 Hz; two power cords (5 A max printer cord, 12 A max curing cord)
Printer size	2,603 x 844 x 1,405 mm (about 102.5 x 33.2 x 55.3 in); operating area 2,793 x 2,100 mm
Weight	Printer 236 kg (about 520 lb); shipping 353 kg (about 778 lb) in a 2,800 x 1,130 x 1,271 mm package
Software	HP PrintOS (PrintBeat, Configuration Center, HP Learn); HP SAi Flexi RIP Basic included
Warranty	One-year limited hardware warranty (HP)

What the HP Latex 630 W prints

HP lists the same applications for the 630 W as for the 630, and white ink lets you run them on clear film and on colored or dark media: banners, customizable clothing, displays, exhibition and event graphics, exterior signage, floor graphics, indoor posters, interior decoration, labels and stickers, light boxes (film and paper), POP/POS, posters, vehicle graphics, wall decals, window graphics.

Ink, media, software and service for the HP Latex 630 W

• Ink: HP 832 1 L Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Optimizer and Overcoat cartridges for the HP Latex 630 (plus HP 832 1 L White for the W models); browse HP ink and Latex/resin ink.
• Media: HP Permanent Matte Adhesive Vinyl 42 in, HP PVC-free Wall Paper 42 in and HP White Satin Poster Paper 42 in; see HP media, Latex/resin media and signage media.
• Software: SAI Flexi Print HP Pro and SAI Flexi Print HP Premium (both listed for HP Latex), plus other options under RIP software such as ONYX; confirm printer support with DTG before ordering.
• Color management: spectrophotometers, profiling systems and DTG’s ICC profile library help you match prints to your display and proof.
• Accessories: HP Latex 630 / 630 W output platen protector and HP Latex media feed accessory.
• Service: HP offers installation and extended support plans for Latex printers; ask DTG at 813.889.0660 which HP service options apply to your configuration. More under warranties and service plans.
• HP Latex 630 printer series (hp.com)

HP Latex 630 W FAQ

What does the HP Latex 630 W add over the HP Latex 630?

White ink: nine cartridges instead of eight, six printheads instead of five, a white ink module and a recirculation cartridge in the box, and a printer weight of 236 kg instead of 230 kg.

How fast does the 630 W print white?

HP lists 6 m²/hr for white spot, 3 m²/hr for overflood, 2 m²/hr for underflood and 1 m²/hr for three layers. Color speeds are the same as the 630.

How much does the HP Latex 630 W weigh and how does it ship?

HP lists the printer at 236 kg, with a shipping weight of 353 kg in a 2,800 x 1,130 x 1,271 mm package.

Does the 630 W include a cutter?

It has an automatic horizontal cutter for trimming media. The separate HP Latex 64 Plus Cutter is part of the Print and Cut Plus bundles, including the 630 W Print and Cut Plus Solution.

Where can I buy an HP Latex 630 W in Tampa, Florida?

DTG (Digital Technology Group) in Tampa, FL sells the HP Latex 630 W together with HP 832 inks including white, HP media and RIP software. Call 813.889.0660 or 800.681.0024.

Questions about the HP Latex 630 W? Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online.
