Product Highlights
- HP Latex 630 printer bundled with the HP Latex 64 Plus Cutter
- Cutter includes stand, media basket and HP Cutter Control software
- Cutter: 158 cm cut width, 1 to 600 g downforce, up to 113 cm/s diagonal
- Water-based HP Latex Inks in 1 L cartridges, no white ink
- HP SAi Flexi RIP Print Cut Software for the printer
What is the HP Latex 630 Print and Cut Plus Solution (171K5A)?

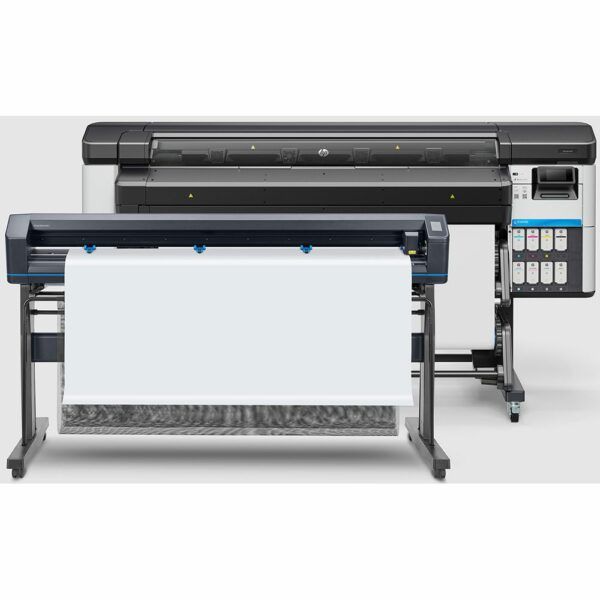

The HP Latex 630 Print and Cut Plus Solution is HP’s print-and-cut bundle: the 64-inch HP Latex 630 printer plus the HP Latex 64 Plus Cutter, a drag-knife cutter with a 158 cm cut width. It prints in color only (eight 1 L cartridges, five printheads, no white ink) and comes with HP SAi Flexi RIP Print Cut Software for the printer and HP Cutter Control software for the cutter. DTG in Tampa, FL sells it for shops that make decals, labels and cut graphics.
HP Latex 630 Print and Cut Plus Solution: overview
The cutter is a separate unit: HP lists its own size (1,960 x 704 x 1,112 mm), weight (48 kg), power (100 to 240 V) and connections (USB and Ethernet). It cuts with a drag knife using TurboCut and Tangential emulation modes, 1 to 600 g of downforce in 5 g steps, acceleration up to 3 G diagonal and a repeatability of plus or minus 0.1 mm. HP lists cut thickness of 0.05 to 0.25 mm, or 0.6 mm with the optional specialty blade.
The printer is the HP Latex 630: up to 1200 x 1200 dpi, 35 m²/hr in 2-pass and 14 m²/hr (about 150 ft²/hr) in standard 6-pass, on rolls from 457 mm to 1,625 mm wide. Its own automatic horizontal cutter trims the roll and, per HP, is for thinner banners and canvas only; the HP Latex 64 Plus Cutter is the unit for cutting shapes.
How this bundle differs from the HP Latex 630 and the 630 W bundle
The HP Latex 630 is the printer alone, with no cutter, cutter stand or HP Cutter Control software. This bundle adds those items and swaps the printer’s RIP to HP SAi Flexi RIP Print Cut Software. If you need white ink with the same cutter, step up to the HP Latex 630 W Print and Cut Plus Solution. The bundle ships as two units, so HP lists separate package weights for the printer (347 kg) and the cutter (74 kg).
More HP Latex printers at DTG: HP Latex 630, HP Latex 630 W, HP Latex 630 W Print and Cut Plus, HP Latex 730, HP Latex 730 W, HP Latex 830, HP Latex 830 W.
HP Latex 630 Print and Cut Plus key specifications
| Max media width | 64 in (1,625 mm); rolls 457 to 1,625 mm (580 to 1,625 mm with full support) |
|---|---|
| Media handling | One roll, max 42 kg, 250 mm outer diameter; thickness up to 0.5 mm; roll feed, take-up reel, automatic horizontal cutter |
| Cutter (HP Latex 64 Plus) | 158 cm cut width; 1 to 600 g downforce in 5 g steps; up to 113 cm/s diagonal; drag knife with TurboCut and Tangential emulation; accuracy 0.2% of movement or 0.25 mm; repeatability plus or minus 0.1 mm |
| Cut thickness | 0.05 to 0.25 mm; 0.6 mm with the optional specialty blade |
| Cutter connectivity and power | USB and Ethernet (LAN); 100 to 240 V, 2 A; 34 W in working mode |
| Ink | Water-based HP Latex Inks in 1 L cartridges; 8 cartridges (black, cyan, light cyan, light magenta, magenta, yellow, Optimizer, Overcoat) |
| Printheads | 5: cyan/black, magenta/yellow, light cyan/light magenta, Optimizer, Overcoat |
| Speed (HP) | 35 m²/hr (2-pass); 18 (4-pass); 14 standard (6-pass, about 150 ft²/hr); 11 (8-pass); 8 (12-pass) |
| Print resolution | Up to 1200 x 1200 dpi; 95% of colors under 3 dE2000 print-to-print repeatability (HP) |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Power | 200 to 240 V auto-ranging, 50/60 Hz; two power cords (5 A max printer cord, 12 A max curing cord) |
| Size | Printer 2,603 x 844 x 1,405 mm (about 102.5 x 33.2 x 55.3 in); cutter 1,960 x 704 x 1,112 mm (about 77.2 x 27.7 x 43.8 in) |
| Weight | Printer 230 kg (about 507 lb), cutter 48 kg (about 106 lb); shipping weight printer 347 kg, cutter 74 kg |
| Shipping packages | Printer 2,800 x 1,130 x 1,271 mm; cutter 2,230 x 420 x 710 mm |
| Software | HP SAi Flexi RIP Print Cut Software, HP Cutter Control, HP PrintOS (PrintBeat, Configuration Center, HP Learn) |
| Warranty | One-year limited hardware warranty (HP) |
What the 630 Print and Cut Plus prints and cuts
HP lists these applications for the solution: banners, customizable clothing, displays, exhibition and event graphics, exterior signage, floor graphics, indoor posters, interior decoration, labels and stickers, light boxes (film and paper), POP/POS, posters, vehicle graphics, wall decals, window graphics.
Ink, media, software and service for the HP Latex 630 Print and Cut Plus
- Ink: HP 832 1 L Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Optimizer and Overcoat cartridges for the HP Latex 630; browse HP ink and Latex/resin ink.
- Media: HP Permanent Matte Adhesive Vinyl 42 in, HP PVC-free Wall Paper 42 in and HP White Satin Poster Paper 42 in; see HP media, Latex/resin media and signage media.
- Software: SAI Flexi Print HP Pro and SAI Flexi Print HP Premium (both listed for HP Latex), plus other options under RIP software such as ONYX; confirm printer support with DTG before ordering.
- Color management: spectrophotometers, profiling systems and DTG’s ICC profile library help you match prints to your display and proof.
- Accessories: HP Latex 630 / 630 W output platen protector and HP Latex media feed accessory.
- Service: HP offers installation and extended support plans for Latex printers; ask DTG at 813.889.0660 which HP service options apply to your configuration. More under warranties and service plans.
- HP Latex 630 printer series (hp.com)
HP Latex 630 Print and Cut Plus Solution FAQ
What is in the box with the Print and Cut Plus Solution?
The printer ships with printheads, maintenance cartridge, printer stand, take-up reel, user maintenance kit, edge holders, HP SAi Flexi RIP Print Cut Software, power cords, air purgers and a 2-inch spindle adaptor. The cutter ships with its stand, media basket, HP Cutter Control software, one standard holder, two standard blades, a cut-off knife and a set of two 3-inch media flanges.
What are the HP Latex 64 Plus Cutter specifications?
HP lists a 158 cm cut width, 1 to 600 g of downforce, speeds up to 113 cm/s diagonal, a drag knife with TurboCut and Tangential emulation modes, and cut thickness of 0.05 to 0.25 mm (0.6 mm with the optional blade).
How does the cutter connect to the network?
HP lists USB and Ethernet (LAN) on the cutter, and Gigabit Ethernet on the printer.
How much do the printer and cutter weigh and how do they ship?
The printer weighs 230 kg and the cutter 48 kg. HP lists package weights of 347 kg for the printer (2,800 x 1,130 x 1,271 mm) and 74 kg for the cutter (2,230 x 420 x 710 mm).
Where can I buy the HP Latex 630 Print and Cut Plus in Tampa, Florida?
DTG (Digital Technology Group) in Tampa, FL sells the Print and Cut Plus Solution along with HP 832 inks, HP media and RIP software. Call 813.889.0660 or 800.681.0024.
Questions about the HP Latex 630 Print and Cut Plus Solution? Call DTG in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online.
HP Latex 630 Spec Sheet
