Graphtec FCX2000-60VC Flatbed Cutting Plotter, 24″ cutting width (Demo Unit)

Original price was: $14,500.00.Current price is: $11,900.00. or finance as low as $238.00/monthApply Now

  • Demo Graphtec FCX2000-60VC vacuum flatbed cutting plotter, 24" × 36" cutting area
  • Bought new from Graphtec at a tradeshow both companies were at; built at the show, shown for 3 days, then brought to DTG’s showroom. Used about an hour at most — immaculate, with barely any hours.
  • For packaging prototypes and motocross graphics (Graphtec market applications)
  • Dual tool head: cut and crease in the same job; Tool 1 max. 500 gf, Tool 2 max. 1 kgf
  • Call 813.889.0660 for included accessories, warranty, and shipping or pickup. See the new unit.
Add to Wishlist
Add to Wishlist
SKU: FCX2000-60VC-DEMO

Description

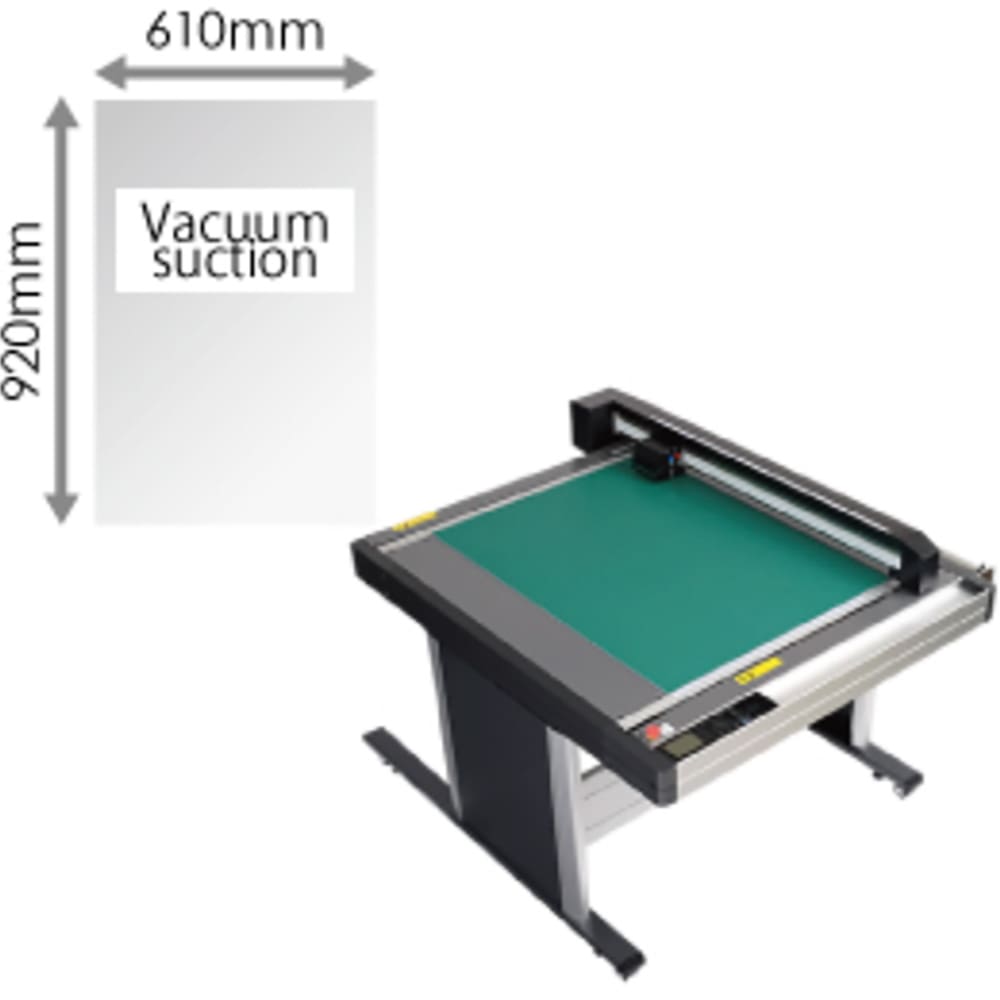

This listing is a DTG demo Graphtec FCX2000-60VC — the same 24" × 36" vacuum flatbed model Graphtec lists for package prototyping and motocross graphics.

DTG bought this unit directly from Graphtec at a tradeshow both companies were at. It was brand new, built at the show, shown for only 3 days, then brought to DTG’s showroom. It has been used about an hour at most here. It is immaculate, with barely any hours on it.

Still call us to confirm: which accessories ship with this demo (including whether a vacuum pump is included), the warranty on this unit, and whether it ships or is available for pickup. Call a DTG specialist at 813.889.0660. The current sale price is shown above. To compare with a new machine, see the new FCX2000-60VC.

Key features

  • Dual tool head: Tool 1 max. 4.9 N (500 gf) and Tool 2 max. 9.8 N (1 kgf). Graphtec’s dual holder can run a cutting blade and a creasing tool in the same job to cut, crease and fold package-prototype media.
  • Reverse-side cutting and creasing with ARMS 6, so preprinted packaging graphics can be cut and creased on the non-printed side of the sheet.
  • Market applications published by Graphtec include package prototyping, motocross graphics, vinyl decals, corrugated cardboard, high-intensity reflective material, automotive gaskets, polycarbonate panels and monument masking.
  • Materials Graphtec lists include vinyl and other self-adhesive marking film, chipboard, E-flute, F/G-flute cardboard, high-intensity reflective film, static cling film, Rubylith, diamond-grade reflective and sandblast resist rubber (thickness limits in the table below).
  • Maximum cutting speed 16 in/s (400 mm/s); USB offline operation with barcode job selection; Ethernet, USB 2.0 and RS-232C.
  • Manual roll-media stocker: up to 950 mm (37.4 in) wide and 5 kg (11 lb).
  • Included design software, per Graphtec: Graphtec Studio 2 and the Cutting Master 5 plug-in for Adobe Illustrator and CorelDRAW (Windows and Mac).
  • The vacuum pump is sold separately. See the Graphtec vacuum pump kit.

Specifications

Graphtec model FCX2000-60VC
Configuration Digital servo system, flatbed
Media hold-down method Vacuum suction
Effective cutting area 24 in x 36 in (610 mm x 920 mm)
Mountable media (Y-axis) 37.4 in (950 mm)
Roll media support Roll media stocker (manual); media width up to 950 mm (37.4 in), weight up to 5 kg (11 lb)
Maximum cutting speed 16 in/s (400 mm/s); 1 to 40 cm/s in 16 steps, in all directions
Cutting force Tool 1: max. 4.9 N (500 gf); Tool 2: max. 9.8 N (1 kgf)
Cutting force settings Tool 1: 40 steps; Tool 2: 40 steps
Number of tools Two tool holders (dual head)
Tool types Cutting blade (supersteel), pen (oil-based ballpoint), and creasing/scoring tool
Functions ARMS 6, reverse-side cutting/creasing using ARMS, ARMS copy, creasing, cutting/creasing in multiple passes
Minimum character size Approx. 10 mm square (varies with character font and media)
Programmable resolution GP-GL mode: 0.1/0.05/0.025/0.01 mm; HP-GL™: 0.025 mm
Distance accuracy Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode) (*2)
Perpendicularity Max. 0.5 mm / 900 mm (in plotting mode)
Repeatability Max. 0.1 mm (excluding contraction of media, in plotting/cutting mode) (*2)
Standard interfaces RS-232C, USB 2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX)
Buffer memory 2 MB
Command sets GP-GL and HP-GL™ emulation (set by menu, or selected automatically by received data)
Power supply 100 to 240 VAC, 50/60 Hz (auto switching)
Power consumption Max. 140 VA
Vacuum pump Sold separately. Graphtec lists 1.5 hp at 110 V or 2.5 hp at 220 V. The pump is not included with the cutter (*3).
Operating environment Temperature: +10 to +35 ºC; humidity: 35 to 75% RH (non-condensing)
Guaranteed accuracy environment Temperature: +16 to +32 ºC; humidity: 35% to 70% RH (non-condensing)
External dimensions (W x D x H) 52.9 x 55.4 x 36.6 in (1344 x 1409 x 930 mm), including stand
Weight 167.5 lb (76 kg), including stand and stocker; vacuum pump not included (*3)
Included software (*5) Graphtec Studio 2 and Cutting Master 5 plug-in for Windows and Mac
Compatible standards (safety) UL60950-1/cUL, CE marking (Low voltage and EMC)
Compatible standards (EMC) FCC-A, EN55032-A

Graphtec-published media types and thicknesses

Media type (Graphtec) Thickness
Self-adhesive marking film (vinyl, fluorescent, reflective) up to 0.25 mm
Heavy paper/board (pattern paper, oil board) up to 0.5 mm or 1.0 mm, depending on the blade
Compressed foam sheet up to 0.8 mm
Sandblast resist rubber up to 1.0 mm
Cardboard (F/G flute) up to 1.1 mm
Clear sheet for plastic boxes up to 0.5 mm or 1.0 mm, depending on the blade
High-intensity reflective film up to 0.5 mm or 1.0 mm, depending on the blade

(*2) Graphtec states these figures apply when the cutter is operated with Graphtec-specified media and conditions. (*3) Graphtec states the vacuum pump for the media hold-down system is not included. (*5) Software is downloaded from Graphtec after product registration. A published Graphtec OS version string on the product page conflicts with Apple’s version names, so it is omitted here; see Graphtec’s current compatibility information.

Related: new FCX2000-60VC, FCX2000-120VC, FCX2000-180VC, vacuum pump kit (59000-050), PM-CT-002 creasing tool, CP-001 creasing tool, CP-002 creasing tool, CP-003 creasing tool.

Sources: Graphtec America FCX2000 Series page; Graphtec FCX2000 brochure (rev 10-26); Graphtec FCX2000 Series User’s Manual. Checked 2026-11-12.

FAQ

Is this a demo unit?

Yes. This is DTG’s demo Graphtec FCX2000-60VC. DTG bought it new from Graphtec at a tradeshow both companies were at. It was built at the show, shown for only 3 days, then brought to DTG’s showroom. The sale price is shown at the top of this listing. Call 813.889.0660 for included accessories, warranty, and shipping or pickup.

What is the condition, and how much has it been used?

It is immaculate, with barely any hours. After the 3-day tradeshow showing, it has been used about an hour at most in DTG’s showroom. We are not listing a warranty or a packing list on this page — call 813.889.0660 for included accessories, warranty, and shipping or pickup.

Can it cut and crease packaging prototypes?

Yes. Graphtec’s dual tool holder can hold a cutting blade and a creasing tool to produce creases, folds and cuts for package-prototype media in the same run. Reverse-side cutting and creasing with ARMS is supported. Confirm with DTG whether any creasing tools ship with this demo; they are also sold separately.

Can it cut motocross graphics and vinyl decals?

Graphtec lists motocross graphics and vinyl decals as FCX2000 market applications. Self-adhesive marking film (vinyl, fluorescent, reflective) is listed up to 0.25 mm, and high-intensity reflective film at blade-dependent thicknesses up to 0.5 mm or 1.0 mm.

What is the cutting area and force?

Effective cutting area is 24 in x 36 in (610 mm x 920 mm). Tool 1 is max. 4.9 N (500 gf) and Tool 2 is max. 9.8 N (1 kgf), per Graphtec. This is the same model as the new FCX2000-60VC.

Is the vacuum pump included with this demo?

That is not listed here. Graphtec does not include a vacuum pump as standard on a new FCX2000. Call 813.889.0660 to confirm whether a pump ships with this demo. The vacuum pump kit is also sold separately.
