Description

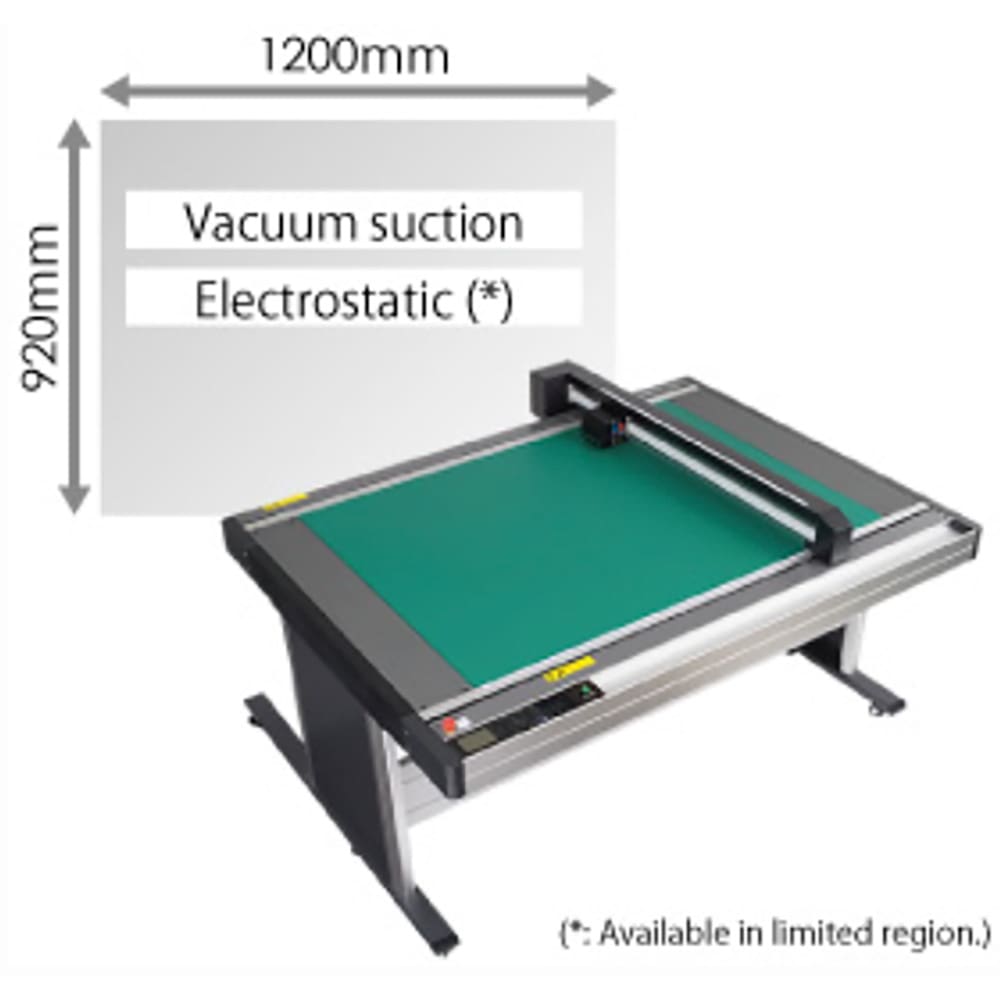

Graphtec FCX2000-120VC Flatbed Cutting Plotter, 47.2" cutting width from Graphtec America. Specifications below are from Graphtec.
Graphtec FCX2000-120VC Flatbed Cutting Plotter, 47.2" cutting width specifications
| Graphtec model | FCX2000-120VC |
|---|---|
| Configuration | Digital servo system, Flatbed |
| Media hold-down method | Vacuum suction |
| Effective cutting area | 47.2 in x 36 in (1,200mm x 920mm) |
| Mountable media (Y-axis direction) | 3 ft 1.4 in (950mm) |
| Roll media support | Roll media stocker (manual), supported media width up to 950 mm, weight up to 5 kg |
| Maximum cutting speed | 1 ft 3.7 inch/sec (400 mm/sec) (1 to 40 cm/s in 16 steps), in all directions |
| Cutting force | Tool 1: Max. 4.9 N (500 gf), Tool 2: Max. 9.8 N (1 kgf) |
| Cutting force settings | Tool 1: in 40 steps, Tool 2: in 40 steps |
| Minimum character size | Approx. 10 mm square (varies with character font and media) |
| Programmable resolution | GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ : 0.025 mm |
| Distance accuracy | Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode) (*2) |
| Perpendicularity | Max 0.5 mm / 900 mm (in plotting mode) |
| Repeatability | Max 0.1 mm (excluding contraction of media, in plotting/cutting mode) (*2) |
| Standard interfaces | RS-232C, USB2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX) |
| Buffer memory | 2MB |
| Command sets | GP-GL and HP-GL™ emulation (set by menu, or selects automatically by received data) |
| Number of Tools | Two tools |
| Cutter blade, pen, and tool types | Cutting blade (supersteel), Pen (Oil-based ballpoint pen), and Creasing/scoring tool |
| Power source | ARMS, Reverse side Cutting/Creasing using ARMS, ARMS Copy function, Creasing, Cutting/creasing in multiple passes |
| Power supply | 100 to 240 VAC, 50/60 Hz (Auto switching) |
| Power consumption | Max. 140 VA |
| Pump | 110V has 1.5 horse power, 220V has 2.5 horse power |
| Operating environment | Temperature: +10 to +35 ºC, Humidity: 35 to 75% RH (non-condensing) |
| Guaranteed accuracy environment | Temperature: +16 to +32 ºC, Humidity: 35% to 70% RH (non-condensing) |
| External dimensions (W x D x H) | W 76.9 x D 55.4 x H 36.6 in 1934 x 1409 x 930 mm (Including stand) |
| Weight | 218.2 lb (Including stand) (*3) |
| Compatible OS 6 | Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 10.13 (Ventura) |
| Included Software | Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac |
| Compatible Standards Safety | UL60950-1/cUL, CE marking (Low voltage and EMC) |
| Compatible Standards EMC | FCC-A, EN55032-A |
Source: Graphtec FCX2000 product page.
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Graphtec FCX2000-120VC Flatbed Cutting Plotter, 47.2" cutting width FAQ
What is the maximum cutting area?
47.2 in x 36 in (1,200mm x 920mm), per Graphtec.
How fast does it cut?
1 ft 3.7 inch/sec (400 mm/sec) (1 to 40 cm/s in 16 steps), in all directions, per Graphtec.
What is the maximum cutting force?
Tool 1: Max. 4.9 N (500 gf), Tool 2: Max. 9.8 N (1 kgf), per Graphtec.
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024 for pricing, freight and setup.
