Description
General Formulations GF 302QS Quick-Split™ 3.4 mil MATTE WHITE VINYL

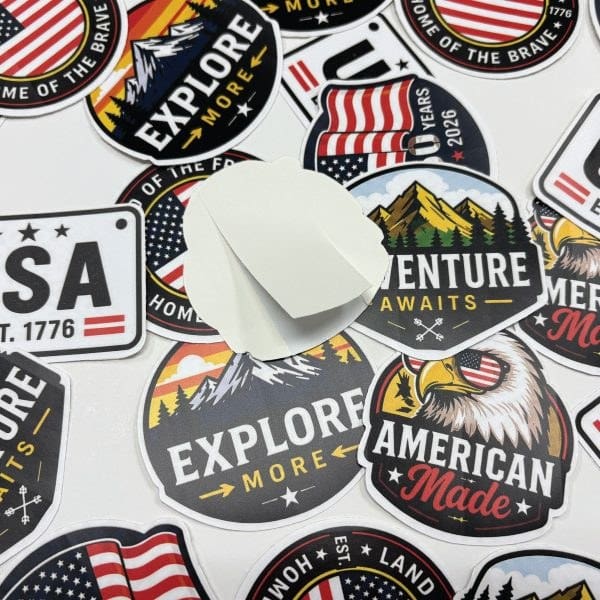

GF 302QS (Quick-Split) is a 3.4 mil polymeric matte white calendered vinyl coated with a clear removable acrylic pressure sensitive adhesive laminated to a 84# quick-split liner. This liner features pre-cut slits and allows the user to bend the decal until the backing paper splits at the slit. This component provides a convenient place to start peeling the decal. The 302QS vinyl is designed to accept a variety of solvent-based, eco-solvent, latex and UV curable inks common to wide format digital printing systems.
Specifications
| Film Type | White Polymeric Vinyl |
|---|---|
| Film Thickness (mil) | 3.4 |
| Adhesive | Removable |
| Release Liner | Quick-Split™ 1.25” Spaced Scored Liner |
| Outdoor Durability | Up to 5 years |
Applications
General Formulations lists GF 302QS for signage (general, POP and indoor) and windows.
- General Signage
- POP & Indoor Signage
- Windows
Ink and printer compatibility
Ink types listed by General Formulations: Solvent, Eco-Solvent, Latex, UV Curable, Screen, Offset (UV Curable).
Matching printers at DTG: Epson SureColor S-Series solvent printers, HP Latex and resin printers, UV flatbed printers. Confirm media settings with your printer and RIP profile.
Roll sizes
| GF part # | Size |
|---|---|
| 302QS-54 | 54″ x 150′ |
| 302QS-60 | 60″ x 150′ |
Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
What applications is GF 302QS intended for?
GF 302QS is designed for temporary interior or exterior signage, decals, nameplates, point-of-purchase displays and general signage. Not designed for coated/sealed/ treated stainless steel, brass or bronze surfaces found on elevator doors.
How long can GF 302QS be applied to windows?
GF 302QS is rated for one-year clean removability. If the vinyl is left on for longer, it will not adversely affect the glass surface, but may be harder to remove, including the possibility of adhesive transfer.
Do you recommend using edge holders when printing GF 302QS?
It may be beneficial to use edge holders with the Quick-Split™ media. The 84# scored liner is slightly thinner than our standard 90# liner construction, and the use of edge holders can help maintain edge stability and reduce the potential for edge lift during printing.
Can GF 302QS be die cut?
Yes. 302QS can be die cut successfully. For best performance, we recommend using a new 60° blade and setting the blade depth so that it cuts completely through the decal face film, while allowing the micro-perforations (created while die-cutting) in the liner to hold the graphic in place until the cutting process is complete.
Related General Formulations products
- GF 290 ChalkMark™ 5.0 mil Matte Black Embossed Vinyl with Clear High-tack Removable Adhesive
- GF 287 RoughMark™ 3.0 mil Matte Clear Vinyl with High-tack Removable Adhesive
- GF 285 RoughMark™ 3.5 mil Matte White Conformable Wall Vinyl with Clear High-tack Removable Adhesive
- GF 280 WindowMark™ 6.0 mil Matte White Perforated Vinyl (80/20) with Clear Removable Adhesive
- GF 275 SubMark™ 3.5 mil Matte White Opaque Vinyl with Clear High-tack Permanent Adhesive
All General Formulations media at DTG
General Formulations GF 302QS technical data sheet (PDF)
Product information from General Formulations (official product page). Specifications may change; check current GF literature for critical applications.
Questions about GF media? Call DTG (Digital Technology Group) in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online.
