Description
General Formulations GF 224 TransMarkā¢ 3.2 mil Matte White Translucent Vinyl with Clear Permanent Adhesive
GF 224 TransMarkā¢ is an 3.2 mil matte white translucent polymeric vinyl film with a clear permanent adhesive laminated to a 90# layflat liner. This product is a premium pressure sensitive vinyl with uniform light diffusion properties used to produce backlit displays and other applications that require backlighting. GF 224 is designed to accept a variety of solvent-based, latex and UV curable inks.
Specifications
| Film Type | White Polymeric Vinyl |
|---|---|
| Film Thickness (mil) | 3.2 |
| Adhesive | Solvent Acrylic |
| Release Liner | White 2-Sided PE-Coated Kraft |
| Outdoor Durability | Up to 5 years |
Applications
General Formulations lists GF 224 for signage (general, POP and indoor, backlit), windows and transit.
- General Signage
- POP & Indoor Signage
- Backlit Signage
- Windows
- Transit Advertising
Ink and printer compatibility
Ink types listed by General Formulations: Solvent, Eco-Solvent, Latex, UV Curable, Screen, Offset (UV Curable).
Matching printers at DTG: Epson SureColor S-Series solvent printers, HP Latex and resin printers, UV flatbed printers. Confirm media settings with your printer and RIP profile.
Roll sizes
| GF part # | Size |
|---|---|
| 224-30 | 30″ x 150′ |
| 224-54 | 54″ x 150′ |
| 224-60 | 60″ x 150′ |
Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
What types of applications are recommended for GF 224?

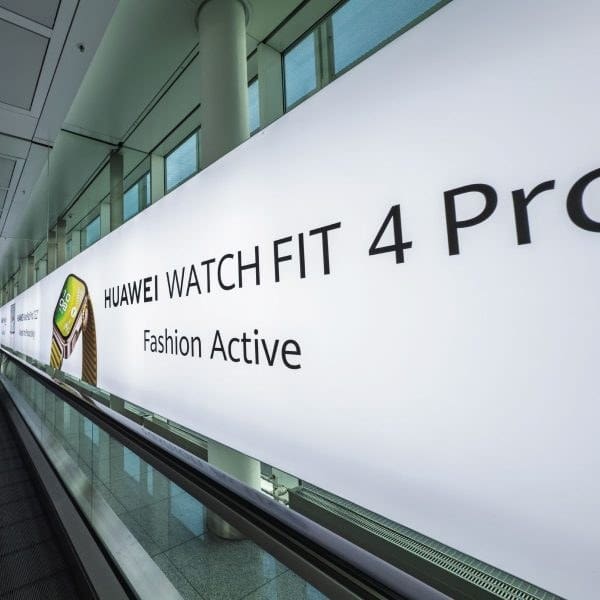

GF 224 TransMarkā¢ works in applications such as backlit vehicle or bus signs, retail displays, and illuminated artwork.
What inks is GF 224 compatible with?
General Formulations lists these ink types for GF 224: Solvent, Eco-Solvent, Latex, UV Curable, Screen, Offset (UV Curable).
What roll sizes does DTG offer for GF 224?
DTG offers 30" x 150' (GF 224-30), 54" x 150' (GF 224-54), 60" x 150' (GF 224-60).
Related General Formulations products
- GF 101 3.0 mil Lustre Clear Laminate with Clear Permanent Adhesive
- GF 223 6.0 mil Matte White Semi-rigid Vinyl with Clear Low-tack Removable Adhesive
- GF 222 6.0 mil Matte White Semi-rigid Vinyl with Clear Permanent Adhesive
- GF 226 WallMarkĀ® 6.0 mil Matte White Vinyl with Clear Repositionable Wall Adhesive
- GF 226HTR WallMarkĀ® 6.0 mil Matte White Vinyl with Clear High-tack Removable Adhesive
All General Formulations media at DTG
General Formulations GF 224 technical data sheet (PDF)
Product information from General Formulations (official product page). Specifications may change; check current GF literature for critical applications.
Questions about GF media? Call DTG (Digital Technology Group) in Tampa, FL at 813.889.0660 or 800.681.0024, or contact us online.
