Description

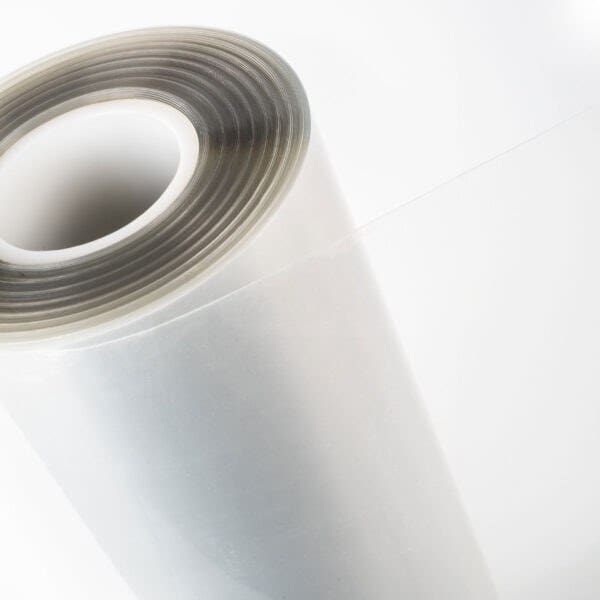

General Formulations GF 106 Mounting Film 1.0 mil Optically Clear Polyester with Optically Clear Double-sided Permanent Adhesive
GF 106 mounting film is a double-coated pressure sensitive 1.0 mil polyester film with optically clear permanent acrylic adhesive. Two 1.5 mil polyester film liners are used to maintain excellent adhesive clarity. This clear mounting film offers protection from UV light, abrasion, moisture and other environmental exposures. This product is designed for laminating thin flexible films and papers under 10 mils in total thickness. It can be laminated by the cold laminating process without the addition of heat.
Specifications
| Film Type | Clear Polyester Carrier |
|---|---|
| Film Thickness (mil) | 1.0 |
| Adhesive | Solvent Acrylic |
| Release Liner | Clear Polyester both sides |
| Outdoor Durability | Up to 1 year |
Applications
General Formulations lists GF 106 for signage (general, POP and indoor).
- General Signage
- POP & Indoor Signage
Roll sizes
| GF part # | Size |
|---|---|
| 106-31 | 31″ x 150′ |
| 106-38 | 38″ x 150′ |
| 106-51 | 51″ x 150′ |
| 106-54 | 54″ x 150′ |
Durability statements are General Formulations estimates and do not constitute a written warranty; see the GF technical data sheet.
Frequently asked questions
What are the recommended applications for GF 106?
GF 106 is is designed to mount backlit transparencies to glass, Plexiglas or other clear substrates in light box applications. 106 also provides distortion-free face mounting of prints to these same clear substrates.
Do I need a laminator for this product?
Yes. GF 106 has two polyester liners (one on each side) to protect and ensure the optical clarity. A release liner take-up is necessary to process this product through typical laminators.
What roll sizes does DTG offer for GF 106?
DTG offers 31" x 150' (GF 106-31), 38" x 150' (GF 106-38), 51" x 150' (GF 106-51), 54" x 150' (GF 106-54).
Related General Formulations products
- GF 107 Mounting Film 1.5 mil Opaque White Polypropylene with Clear High-tack Double-sided Adhesive (self-wound)
- GF 112 Mounting Film 1.0 mil Clear Polyester with Clear High-tack Double-sided Adhesive (self-wound)
- GF 113 Mounting Film 1.0 mil Clear Polyester with Clear Double-sided Adhesive (self-wound)
- GF 114 Mounting Film 1.0 mil Clear Polyester with Clear Double-sided Adhesive (self-wound)
- GF 116 Mounting Film (AE) 1.0 mil Clear Polyester with Clear Double-sided Adhesive
