Colex’s official Sharpcut size pages list the static SX1732 (5.5′×10.5′) and the conveyor SXC1732 (5.5′×10.5′) as standard models. On both pages the working-area row for those 1732 columns is printed as 67″ × 126″. This page reports the model nickname and the working-area figures as Colex prints them, without converting one into the other. Colex’s Sharpcut overview describes the static SX series for day-to-day cutting and the conveyor SXC series for automated roll-to-roll production, and it names a triple interchangeable tool head, vision registration and camera, and a solid steel welded frame. The SXC overview also names an automated finishing system, precision-balanced aluminum rollers, and a roll feeder and clamping bar.

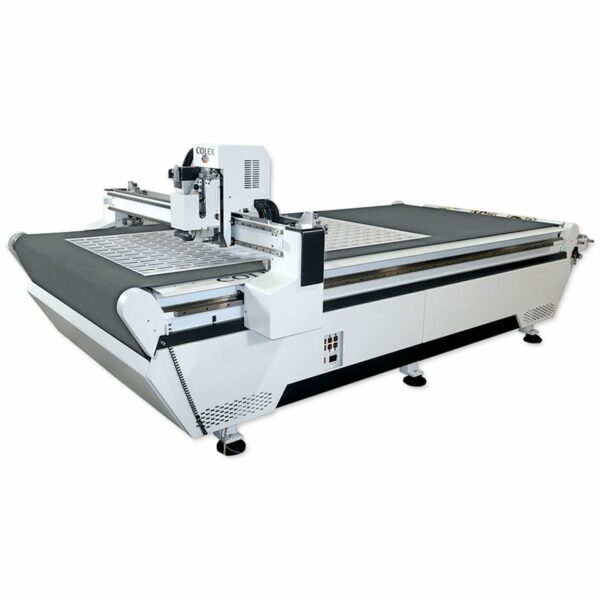

| Official model | SXC1732 (5.5′×10.5′) conveyor |
|---|---|
| Working area (official table) | 67″ × 126″ |
| Machine dimensions | 98″ × 166″ |
| Tool head | Triple interchangeable tool head |
| Camera | Industrial 3.1 Mpixel |
| Vacuum system | 6 zone (7.5 kWatt) |
| Rapid speed | 80 IPS / 122 m/min |
| Acceleration | 0.86 G |
| Bridge clearance | 4.0″ |
| Max. cutting thickness | 2.5″ |
| Recommended floor space | 14′ × 18′ |
| Machine weight | 4,000 lbs |
Related products
Sources: Colex Sharpcut SXC sizes; Colex Sharpcut Pro overview.
