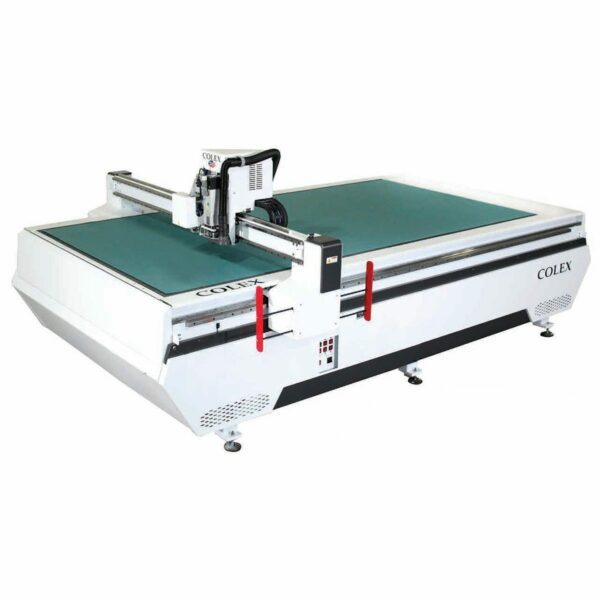

Colex Sharpcut Pro SX1732 Flatbed Cutter – 5.5ft x 10.5ft

Contact us for your price

What's My Price

Name(Required)
Add to Wishlist
Add to Wishlist
SKU: TN00106

Description

Colex’s official Sharpcut size pages list the static SX1732 (5.5′×10.5′) and the conveyor SXC1732 (5.5′×10.5′) as standard models. On both pages the working-area row for those 1732 columns is printed as 67″ × 126″. This page reports the model nickname and the working-area figures as Colex prints them, without converting one into the other. Colex’s Sharpcut overview describes the static SX series for day-to-day cutting and the conveyor SXC series for automated roll-to-roll production, and it names a triple interchangeable tool head, vision registration and camera, and a solid steel welded frame. The SXC overview also names an automated finishing system, precision-balanced aluminum rollers, and a roll feeder and clamping bar.

Official model SX1732 (5.5′×10.5′)
Working area (official table) 67″ × 126″
Machine dimensions 98″ × 148″
Tool head Triple interchangeable tool head
Camera Industrial 3.1 Mpixel
Vacuum system 6 zone (7.5 kWatt)
Rapid speed 80 IPS / 122 m/min
Acceleration 0.86 G
Bridge clearance 4.0″
Max. cutting thickness 2.5″
Recommended floor space 14′ × 18′
Machine weight 3,500 lbs

Related products

Sources: Colex Sharpcut SX sizes; Colex Sharpcut Pro overview.
