Description

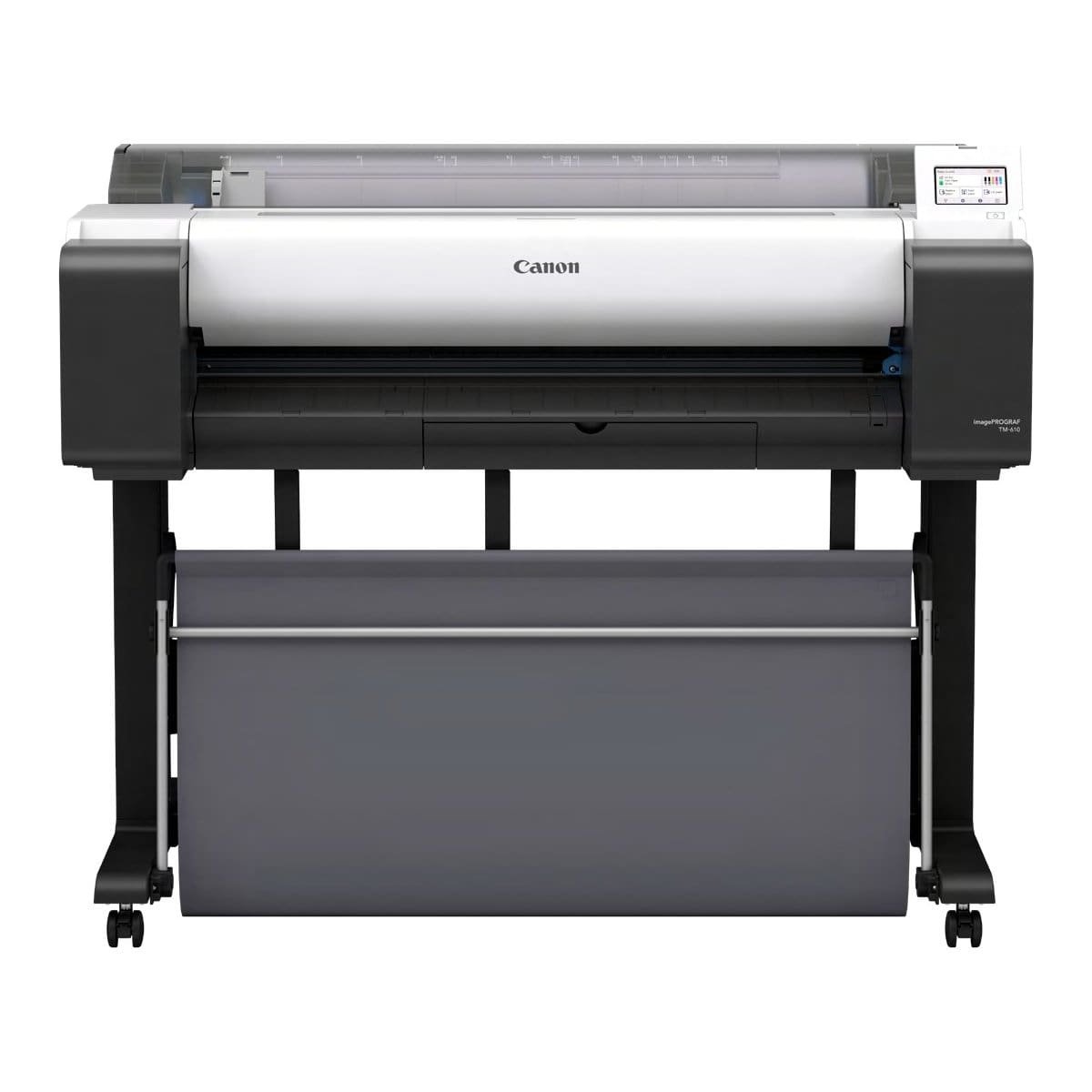

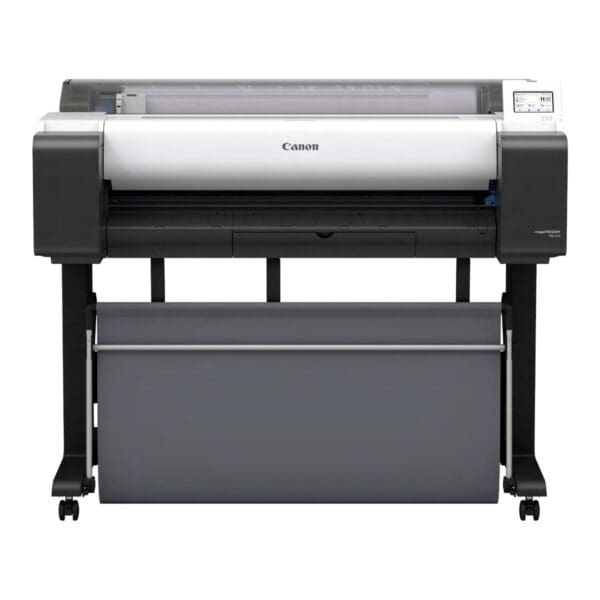

The Canon imagePROGRAF TM-610M prints up to 3.2 D-size (24″ x 36″) drawings per minute on plain paper, per Canon. It is a 36-inch, 5-color LUCIA TD pigment printer for CAD drawings, blueprints, GIS maps and posters. DTG in Tampa, FL sells, installs and supports it. Call DTG at 813.889.0660 or 800.681.0024.
How fast does the TM-610M print a D-size drawing?
Canon rates the TM-610M at up to 3.2 ANSI D prints per minute, measured after the first print in Fast Q5 mode on plain paper. Actual speed varies with copies, size, media type and orientation. Source: Canon U.S.A. press release, Sept. 15, 2026.
Scanning
Built-in 36″ CIS scanner (600 dpi per Canon brochure), documents up to 36.5″ wide, scans up to 5″ per second in color and 10″ per second in monochrome (Canon), zoom 25-432%, scan to USB memory, email or SMB.
TM-610M specifications
| Print width | 36″ |
| D-size speed (Canon) | Up to 3.2 D/min (Fast Q5, plain paper) |
| Ink | 5-color LUCIA TD pigment: MBK, BK, C, M, Y |
| Starter ink | 130 ml MBK and 90 ml BK/C/M/Y starter tanks |
| Replacement ink | 130 ml or 300 ml tanks (PFI-120/121/123, PFI-320/321/323) |
| Printhead | PF-06, 15,360 nozzles (MBK 5,120; others 2,560 each), 2400 x 1200 dpi |
| Media | 8″ to 36″ roll and cut sheet, 0.07-0.8 mm thick |
| Max roll diameter | 5.9″ (150 mm) |
| Storage | 2 GB RAM |
| Output | stand with stackable basket included |
| Printer dimensions / weight | 50.6″ x 34.2″ x 41.0″ with basket open; 165.3 lbs. |
| Configuration | Printer with built-in 36″ scanner, stand and stackable basket |
Why buy the TM-610M from DTG
DTG is an authorized Canon imagePROGRAF dealer in Tampa, FL. We help you pick the right technical printer for your drawing volume, set it up, and support it with ink, media and service. Call DTG at 813.889.0660 or 800.681.0024.
Specifications from Canon U.S.A.: TM-610M spec sheet. Specifications subject to change by Canon.
Canon imagePROGRAF TM-610 / TM-610M Specification Sheet (PDF)
