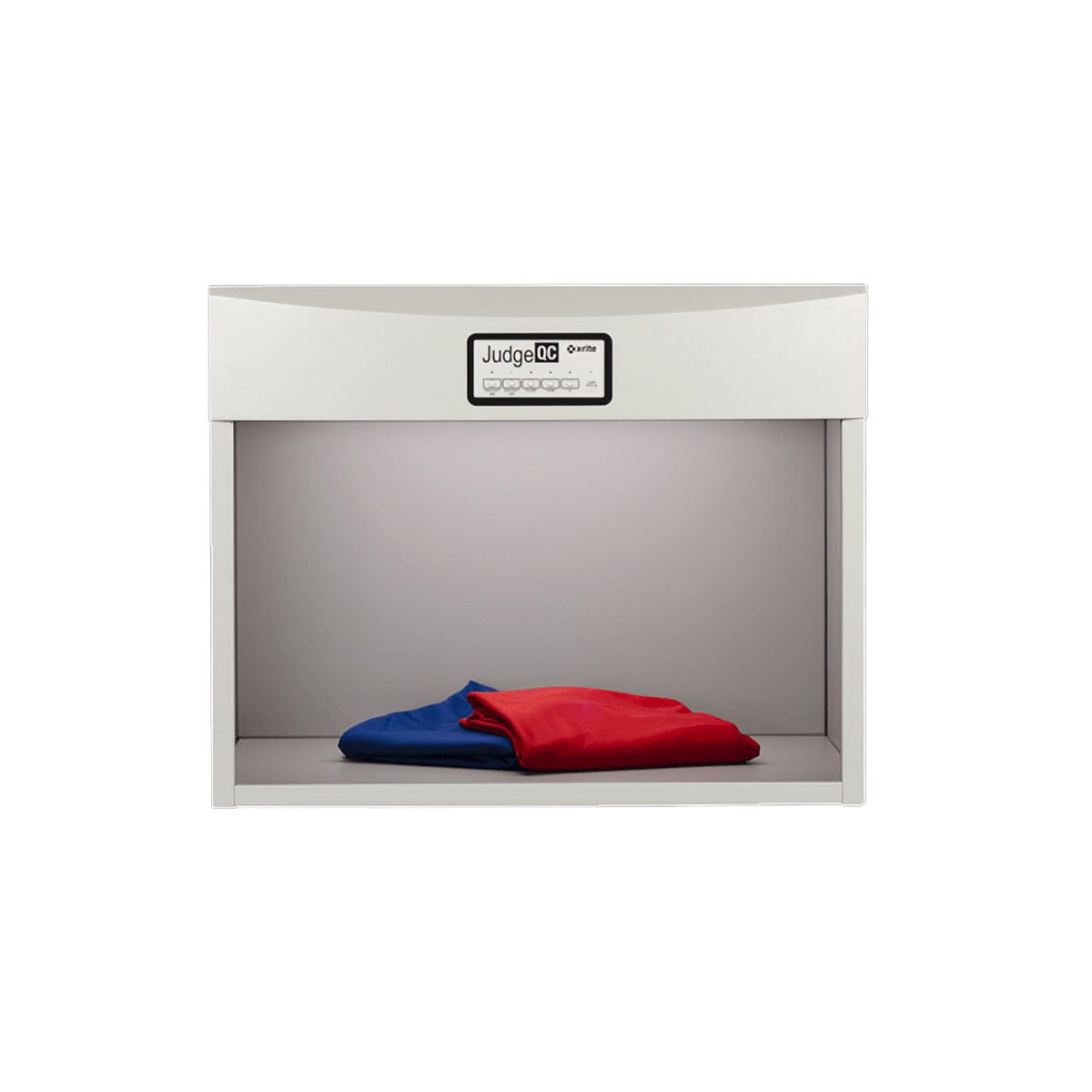

X-Rite Judge QC ‘Dual Daylight’ (D50/D65/CWF/A/UV)

$3,900.00 or finance as low as $117.00/monthApply Now

Illuminants include: D50,D65, CWF, A, UV

Add to Wishlist
Add to Wishlist
SKU: JQCDDCWF

Description

X-Rite’s official Judge QC product page describes the Judge QC as a durable, compact light booth for evaluating color quality. The accompanying Judge QC sell sheet (L10-533-EN, 10/20) calls it “the industry’s most cost effective light booth” with a metal construction and powder-coated surface, and it lists a separate Judge QC (Dual daylight) configuration. This listing is cataloged as Dual Daylight (D50/D65/CWF/A/UV).

The product page says Dual Daylight mode “enables users to easily switch between the D50 light source for print and packaging and D65 for industrial applications.” It also says the booth “comes fully equipped with a UVA lamp for accurate evaluation when samples contain optical brightening agents (OBAs).” Five light sources are offered, “including 2 Class B daylight options (D50 or D65), Cool White Fluorescent, Incandescent A, Ultraviolet, one of TL84 or U30, and the option of Cool White Fluorescent or an LED light source (L940 or L950).” The specification table on the same page lists light sources as “D50 or D65, CWF, UVA, CIE A, and one of TL84, U30, U35.” This page reports those official source lists and the Dual Daylight switching description rather than collapsing them into a single inferred lamp set.

The booth is intended to help detect color defects and metamerism by viewing samples under multiple light sources. X-Rite says it complies with ISO, ASTM, AATCC, and BSI visual assessment requirements (the sell sheet also mentions DIN and ANSI). A lamp-service indicator and multiple lamp-replacement options are listed for uptime.

X-Rite publishes an internal viewing area of 25 in, 18.5 in, and 15 in (63.5 cm, 47 cm, and 38 cm). The product overview and the specification table assign those three figures to depth, width, and height in different orders, so this page reports the three dimensions without choosing an axis layout.

This listing Judge QC Dual Daylight (catalog: D50/D65/CWF/A/UV)
Total light sources 5

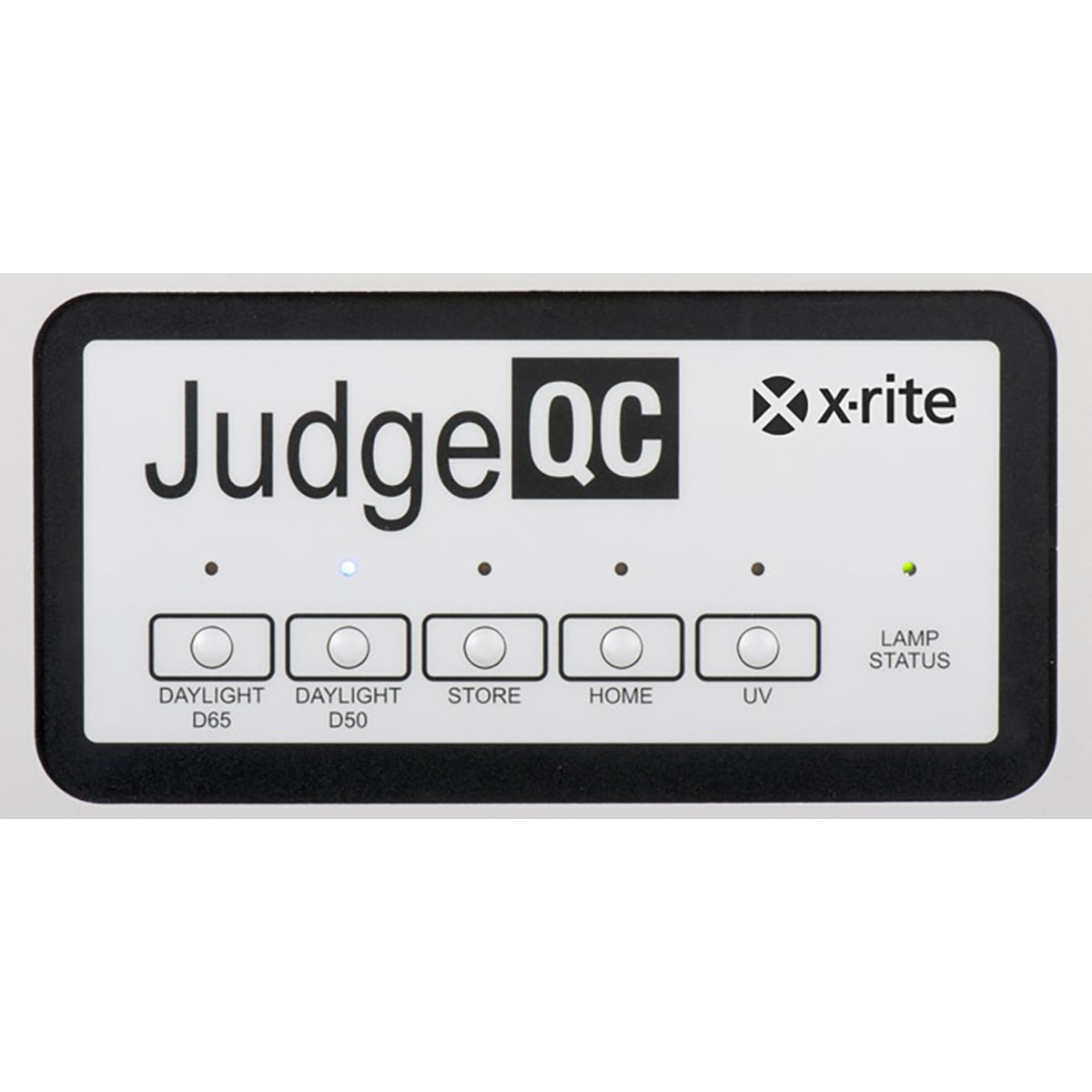

Dual Daylight mode Switch between D50 (print and packaging) and D65 (industrial)
Construction Steel; unit color Munsell N7
Overall dimensions D 21.1 in × W 27.0 in × H 21.4 in / D 53.5 cm × W 68.5 cm × H 54.5 cm
Internal viewing area 25 in, 18.5 in, and 15 in (63.5 cm, 47 cm, and 38 cm); see axis-label note above
Lamp life / timer 2,000 hours; lamp timer yes; service indicator yes
Weight / shipped weight 60 lbs (27 kg) / 70 lbs (31.5 kg)
Voltage / wattage 100, 115, 127, 230 V; 65 W max.
Warm-up time 3 minutes (fluorescent)
Operating / storage temperature 32°F to 104°F / 0°C to 40°C
Humidity 0 to 95% RH max (non-condensing)
Industry standards ISO, ASTM, AATCC, and BSI visual assessment requirements
Visible / UV metamerism index Grade B / Grade C (CIE 51.2-1999)
Safety ETL Listed
Interface Touchpad

Sources: X-Rite Judge QC product page; X-Rite Judge QC sell sheet L10-533-EN (10/20).
