Description

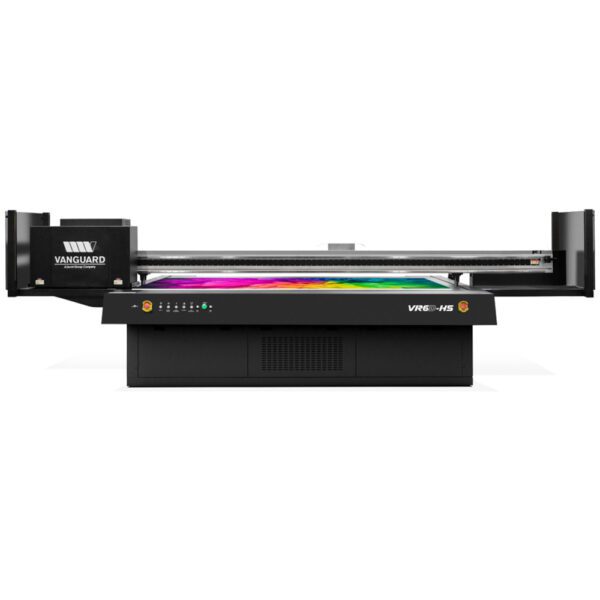

The Vanguard VR6D-HS 4' x 8' UV-LED flatbed printer. Specifications below are from the Vanguard Digital Printing Systems data sheet (rev. 6.2025). Call DTG for configuration, site prep and installation.
Vanguard VR6D-HS specifications
| Model | VR6D-HS |
|---|---|
| Print head | Ricoh Gen6 |
| Print resolution | Up to 1800 apparent dpi; drops as small as 5 pL |
| Max print heads | 10 (5 x 2 rows) |
| Base ink | CMYK |
| Optional ink | White + Varnish |
| Curing | Liquid-cooled LED |
| Compressed air | 80-100 PSI |
| Operating temperature | 66.2-87.8 °F (19-31 °C) |
| Humidity | 40-70% non-condensing |
| Power | 2 x 220 V 30 A single-phase; 1 x 120 V 20 A single-phase |
| Max print size | 50" x 99" |
| Max thickness | 4" (10 cm) |
| Max media weight | 500 lbs |
| Material type | Rigid and flexible |
| RIP | Onyx, Caldera |
| Speed (single / dual) | Express up to 1,001 / 1,557 sq ft/h; Production up to 538 / 702; Quality up to 268 / 531; High Quality up to 214 / 422 |
| Dimensions (W x D x H) | 15' 11" x 7' 3" x 5' |
| Weight | 3,165 lbs |
| Shipping dimensions | 17' 9" x 8' 4" x 6' 2" |
| Minimum door clearance | 72" |
Source: Vanguard VR6D-HS data sheet and product page (vanguarddigital.com).
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Vanguard VR6D-HS FAQ
What is the maximum print size of the VR6D-HS?
50" x 99", per Vanguard.
What inks does the VR6D-HS use?
CMYK base, with optional White and Varnish, cured by liquid-cooled LED, per Vanguard.
What power and air does the VR6D-HS need?
2 x 220 V 30 A single-phase; 1 x 120 V 20 A single-phase; compressed air 80-100 PSI, per Vanguard.
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024.
