Description

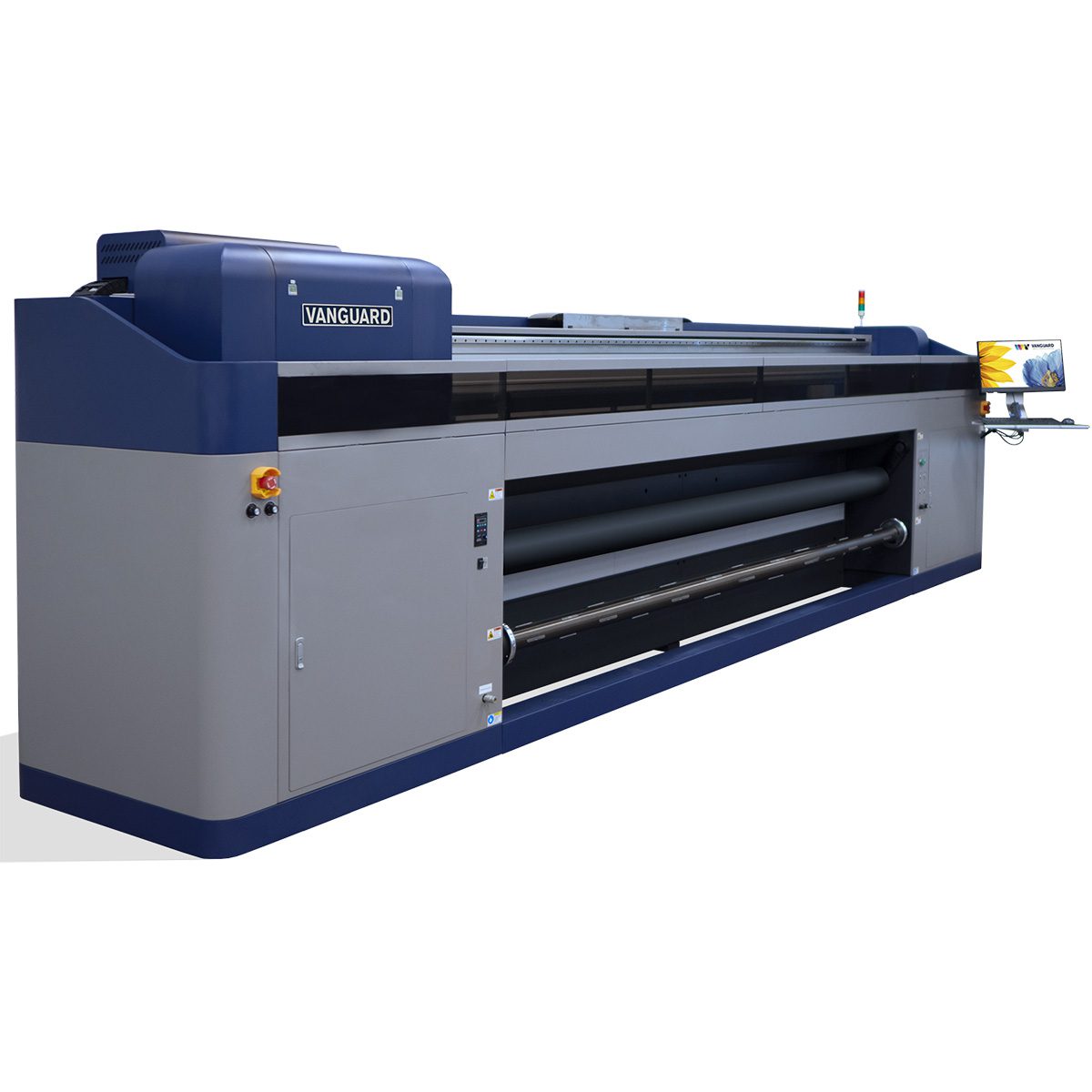

The Vanguard VKR3200-HS 126" (3.2 m) roll-to-roll UV-LED printer. Specifications below are from the Vanguard Digital Printing Systems data sheet (rev. 6.2025). Call DTG for configuration, site prep and installation.
Vanguard VKR3200-HS specifications
| Model | VKR3200-HS |
|---|---|
| Print head | Kyocera |
| Print resolution | Up to 1800 dpi |
| Max print heads | Up to 10 (5 x 2 rows) |
| Base ink | CMYK |
| Optional ink | White + Varnish |
| Curing | Liquid-cooled LED |
| Compressed air | 80-100 PSI |
| Operating temperature | 66.2-87.8 °F (19-31 °C) |
| Humidity | 40-70% non-condensing |
| Power | 1 x 220 V 40 A single-phase; 1 x 120 V 20 A single-phase |
| Max print width | 3.2 m / 126" |
| Max roll diameter | 15.75" |
| Max media weight | 440 lbs |
| Material type | Flexible |
| RIP | Durst Workflow, Onyx, Caldera |
| Speed (single / dual) | Production up to 1,500 / 2,900 sq ft/h; Quality up to 600 / 1,150; High Quality up to 400 / 800 |
| Dimensions (W x D x H) | 18' 10" x 5' 5" x 5' 10" |
| Weight | 6,834 lbs |
| Shipping dimensions | 20' x 6' 7" x 6' 8" |
| Minimum door clearance | 72" |
Source: Vanguard VKR3200-HS data sheet and product page (vanguarddigital.com).
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Vanguard VKR3200-HS FAQ
What is the maximum print size of the VKR3200-HS?
3.2 m / 126", per Vanguard.
What inks does the VKR3200-HS use?
CMYK base, with optional White and Varnish, cured by liquid-cooled LED, per Vanguard.
What power and air does the VKR3200-HS need?
1 x 220 V 40 A single-phase; 1 x 120 V 20 A single-phase; compressed air 80-100 PSI, per Vanguard.
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024.
