Description

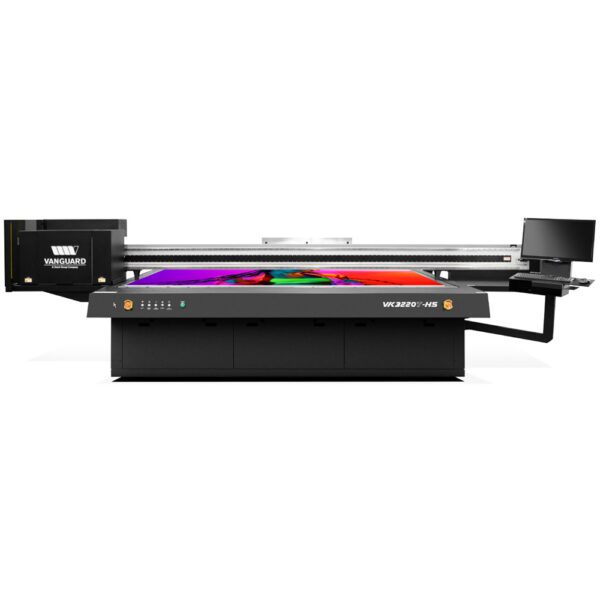

The Vanguard VK3220T-HS 126" x 80.7" UV-LED flatbed printer. Specifications below are from the Vanguard Digital Printing Systems data sheet (rev. 6.2025). Call DTG for configuration, site prep and installation.
Vanguard VK3220T-HS specifications
| Model | VK3220T-HS |
|---|---|
| Print head | Kyocera |
| Print resolution | Up to 1800 dpi |
| Max print heads | 15 (5 x 3 rows) |
| Base ink | CMYK |
| Optional ink | White + Varnish |
| Curing | Liquid-cooled LED |
| Compressed air | 80-100 PSI |
| Operating temperature | 66.2-87.8 °F (19-31 °C) |
| Humidity | 40-70% non-condensing |
| Power | 1 x 220 V 40 A, 1 x 220 V 30 A and 1 x 120 V 20 A, single-phase |
| Max print size | 126" x 80.7" (320 x 205 cm) |
| Max thickness | 4" (10 cm) |
| Max media weight | 661 lbs (300 kg) |
| Material type | Rigid and flexible |
| RIP | Durst Workflow, Onyx, Caldera |
| Speed (single / dual / triple) | Draft up to 2,637 / 3,412 / 3,875 sq ft/h; Express up to 1,130 / 2,422 / 2,949; Production up to 570 / 1,055 / 1,744; High Quality up to 215 / 388 / 559 |
| Dimensions (W x D x H) | 563 x 329 x 154 cm (18.5' x 10.8') |
| Weight | 6,173 lbs (2,800 kg) |
| Shipping dimensions | 19.3' x 7.4' x 5.9' |
| Minimum door clearance | 83" (210 cm) |
Source: Vanguard VK3220T-HS data sheet and product page (vanguarddigital.com).
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Vanguard VK3220T-HS FAQ
What is the maximum print size of the VK3220T-HS?
126" x 80.7" (320 x 205 cm), per Vanguard.
What inks does the VK3220T-HS use?
CMYK base, with optional White and Varnish, cured by liquid-cooled LED, per Vanguard.
What power and air does the VK3220T-HS need?
1 x 220 V 40 A, 1 x 220 V 30 A and 1 x 120 V 20 A, single-phase; compressed air 80-100 PSI, per Vanguard.
