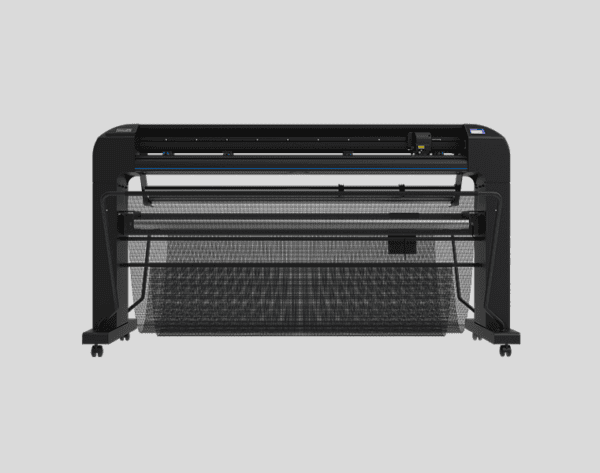

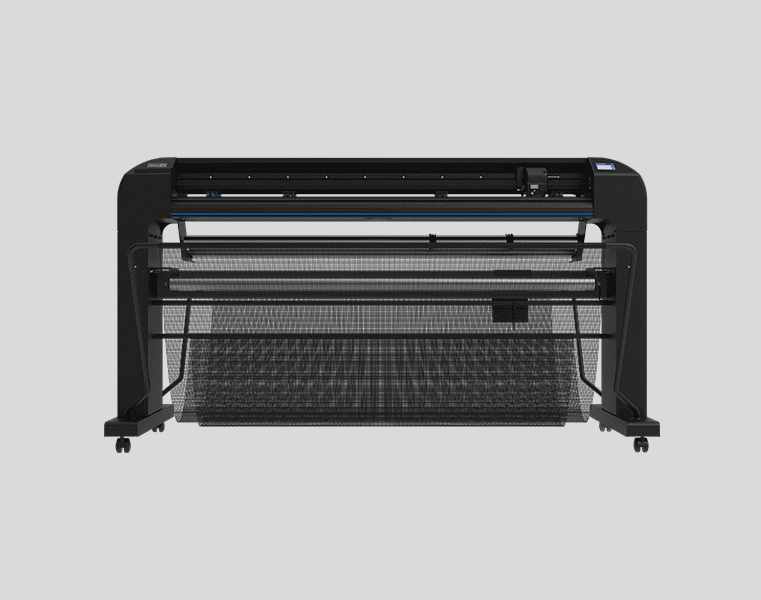

Summa S3D140 S Class 3 Drag-Knife Cutter, 54″

$6,990.00 or finance as low as $209.70/monthApply Now

  • Summa S3D140 S Class 3 Drag-Knife Cutter, 54"
  • Max cutting thickness: 0.8 mm
  • Pinch rollers: 4
  • Cutting technology: High speed drag knife
Add to Wishlist
Add to Wishlist
SKU: S3D140

Description

The Summa S3D140 S Class 3 Drag-Knife Cutter, 54″ is Summa’s S3D140 — the S3 140 S3 D Series drag-knife cutting head.

Summa’s brochure describes the Summa S3 140 as a mid-size cutter that “enables a larger media width offering more versatility in the cutting applications.” The key-features text says it handles media up to 135 cm (53.1"), plus 7 cm (2.8") in oversized mode.

Summa’s brochure assigns the S3 D Series a drag-knife cutting head. It says S3 D Series roll cutters “are specifically designed for high-volume cutting environments” and “unite legendary S Class power and precision with an efficient and affordable drag knife cutting head.” The comparison table lists S3 D Series cutting technology as Drag Knife.

The S3 technical specifications table lists knife pressure as “Drag Knife: Up to 400 grams / Tangential Knife: Up to 1000 grams.” This model is the D-series drag-knife variant, so the published drag-knife figure is up to 400 grams.

The brochure’s servo-powered roll-up section is titled “Servo-powered Roll-up System | S3 75, S3 140 & S3 160.” It says that after finishing a job, “the system will roll up the artwork neatly and prepare the machine for the next one,” and that “the integrated panelling feature splits long-length runs into shorter consecutive tasks.” The S Class 3 options table lists 395-745 as the roll-up system for S3 140 “with one pair of core holders.”

The S3 140 key-benefits list includes Twin X functionality.

Included software on the S3 technical specifications table is Summa GoSign Software and Summa Cutter Control, with plug-ins for Illustrator, CorelDraw, and MacSign. The brochure says “GoSign is your first choice cutting software designed for the Summa roll cutters” and that it allows you to manage a preferred workflow with flexibility.

S3D140 specifications

These figures come from Summa’s S3 technical specifications table and the S3 size-class pages in the 2026 vinyl cutter brochure (RevEN(US)25.10). Media width and maximum working width are listed separately in that table; they are not the same measurement.

Summa model S3D140
S3 size class S3 140
Cutting technology Drag Knife
Dimensions 202 x 69 x 111 cm (79.6" x 27.2" x 43.7")
Media width 17 to 145 cm (6.7" to 57.0")
Max. working width 135 cm x 50 m (53.1" x 164 ft); oversized mode allows a wider cutting area of ±7 cm (2.8")
Comparison-table maximum media width 145 cm (57")
Pinch rollers 4
Alignment OPOS X – OPOS Xtra; barcode job recognition; up to 2 × 64 marks on the X-line; Y-Line compensation
Tracking performance 12 m (40 ft) max. within guaranteed specifications for media less than 762 mm (30"); 4 m (13 ft) max. for media larger than 762 mm (30"). Oversized mode: tracking no longer guaranteed.
Media thickness 0.05 mm (0.002") to 0.25 mm (0.01"); up to 0.8 mm (0.03") with sandblast drag knife; up to 1.2 mm (0.047") with sandblast tangential knife
Accuracy 0.2% of movement or 0.25 mm (0.010"), whichever is greater
Speed Up to 1440 mm/s (56"/s) diagonal
Acceleration Up to 4.25 G diagonal
Knife pressure Drag knife: up to 400 grams / tangential knife: up to 1000 grams
Other features FlexCut (cutting through)
Connectivity Ethernet, USB, WIFI
Power requirements 100–120 / 220–240 VAC, 50/60 Hz, 85 VA maximum
Included software Summa GoSign Software, Summa Cutter Control; plug-ins for Illustrator, CorelDraw, MacSign

Related Summa S Class 3 products

Sources: Summa 2026 Vinyl Cutter Brochure (RevEN(US)25.10); Summa S3D series page.

FAQ

What cutting technology does the S3D140 use?

Drag Knife, as listed for the S3 D Series in Summa’s 2026 vinyl cutter brochure.

What are the official S3 140 media and working widths?

The S3 technical specifications table lists media width 17 to 145 cm (6.7" to 57.0") and maximum working width 135 cm x 50 m (53.1" x 164 ft). Oversized mode adds ±7 cm (2.8"); tracking is not guaranteed in oversized mode. The comparison table’s maximum media width for this size is 145 cm (57").
