Description

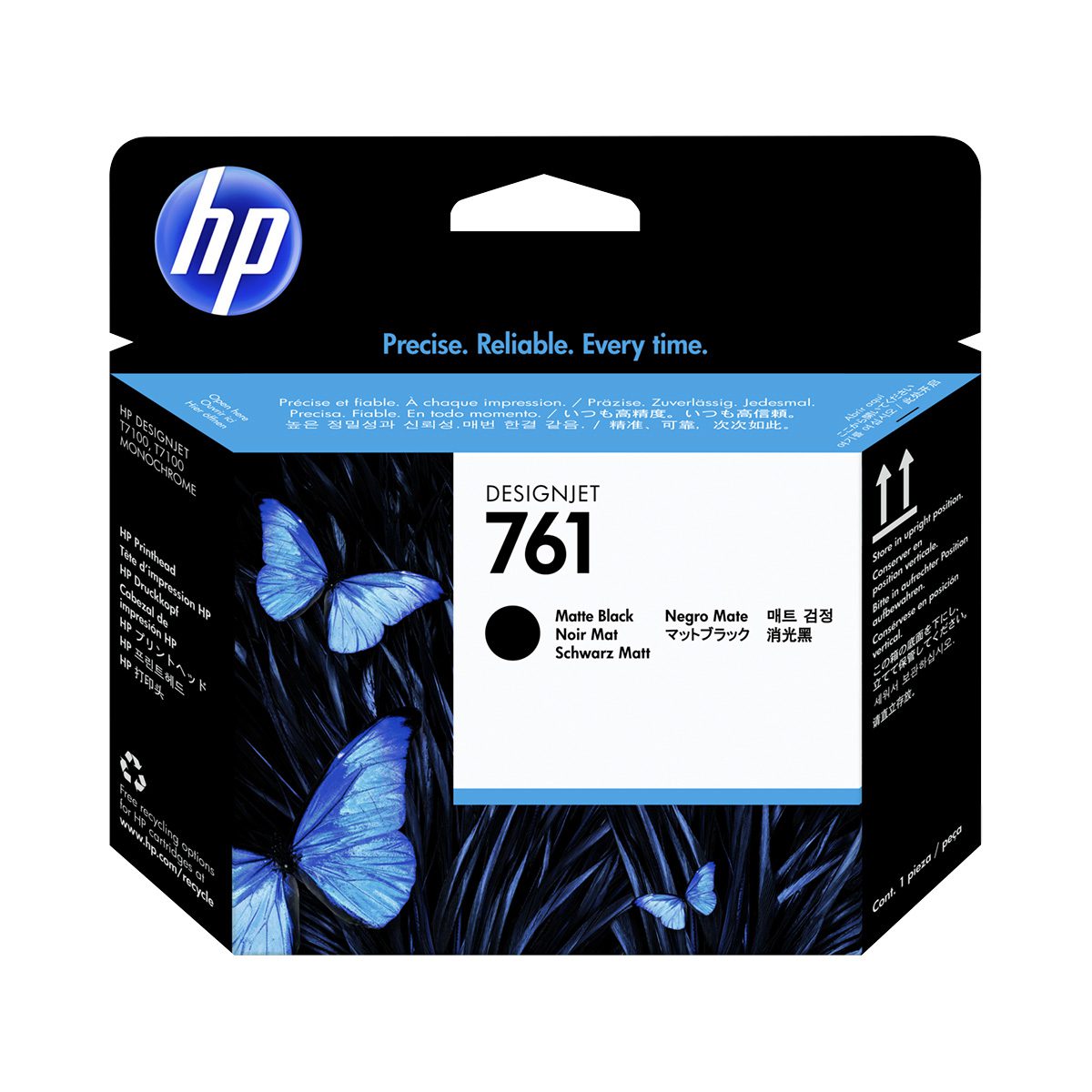

The HP 761 Matte Black/Matte Black DesignJet Printhead (CH648A) is an original HP pigment-based matte black printhead. HP lists this part for the DesignJet T7100 and DesignJet T7200, and also for the DesignJet T7100mono.
Compatible HP printers
- HP DesignJet T7100
- HP DesignJet T7200
- HP DesignJet T7100mono
HP 761 Matte Black printhead specifications
| HP part number | CH648A |
|---|---|
| HP name | HP 761 Matte Black/Matte Black DesignJet Printhead |
| Colors | Matte black / matte black |
| Ink drop | 9 pl |
| Ink type | Pigment-based |
| Operating temperature | 68 to 77°F |
| Storage temperature | -40 to 140°F |
| Operating humidity | 40 to 55% RH |
| Storage humidity | 8 to 90% RH |
Related HP 761 and 762 supplies:
- HP 761 Yellow printhead (CH645A)
- HP 761 Magenta/Cyan printhead (CH646A)
- HP 761 Gray/Dark Gray printhead (CH647A)
- HP 761 maintenance cartridge (CH649A)
- HP 762 Dark Gray printhead (CN074A) — listed by HP for the DesignJet T7100mono
- HP 762 maintenance cartridge (CM998A) — listed by HP for the DesignJet T7100mono
Questions about fit or supplies for your printer? Call Digital Technology Group in Tampa, FL at 813.889.0660.
