Description

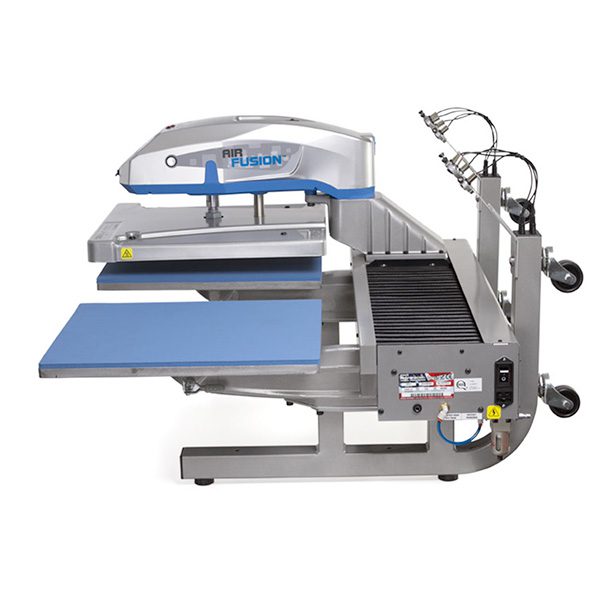

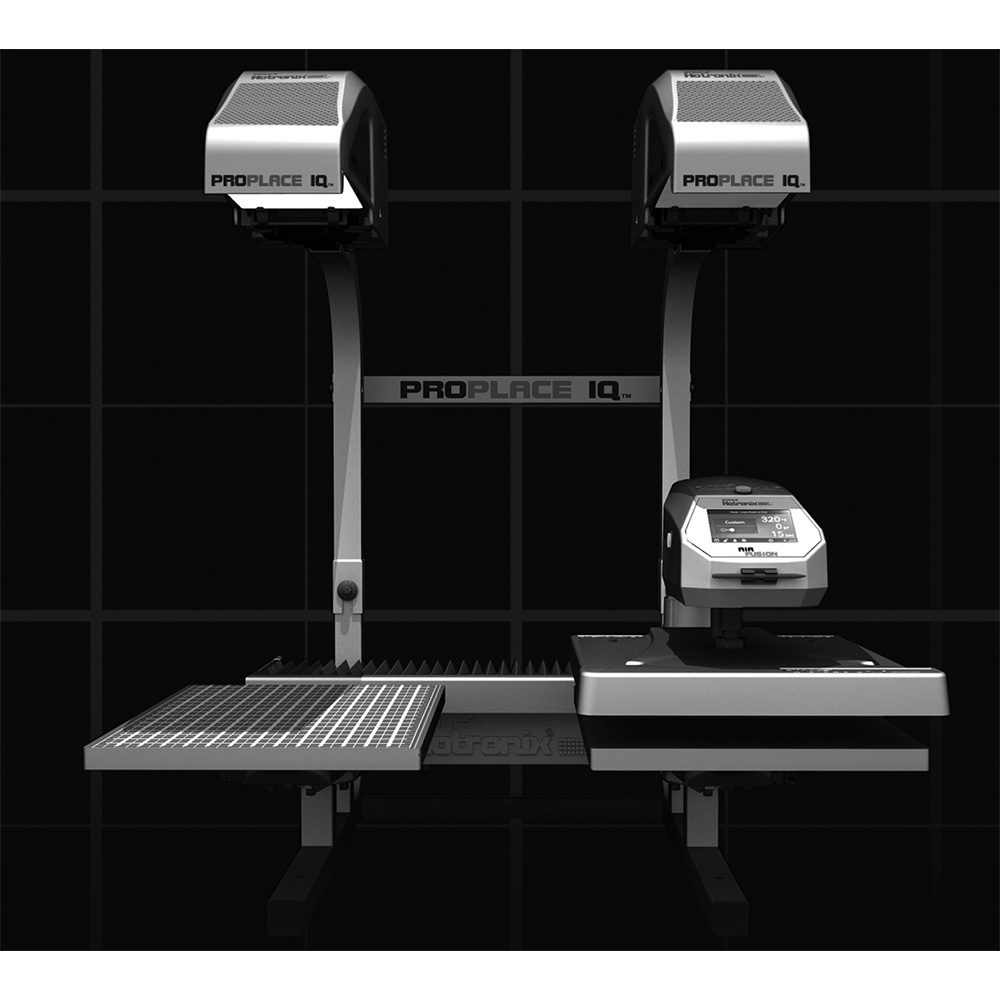

Hotronix Dual Air Fusion ProPlace IQ Heat Press. Specifications and warranty below are from Hotronix.
Hotronix Dual Air Fusion ProPlace IQ Heat Press specifications
| Model | Hotronix Dual Air Fusion ProPlace IQ Heat Press |
|---|---|
| DTG item code | XRF2&PPIQ |
| Key features | Pro Place IQ integration; Two lower stations; upper platen shuttles between them; Smart IQ technology; Auto-Adjust Pressure |
| Dimensions (actual) | 38" x 38" x 50" (97 x 97 x 127 cm), assembled |
| Weight (actual) | 291 lbs (132 kg) |
| Shipping dimensions | 45" x 45" x 35" (114 x 114 x 89 cm) |
| Shipping weight | 443 lbs (201 kg) |
| Electrical | 120 V, 15 A, 1800 W or 240 V, 15 A, 3500 W |
| Air compressor | Required, not included: minimum 1 hp, 8 gallon tank, 120 PSI; uses 3.8 CFM |
| Construction | Made in the USA; cast-in tubular heating; powder-coated finish |
| Certification | Certified by SGS to UL standards; CE/RoHS approved |
| Hotronix warranty | Heating element lifetime; framework 5 years; circuit board 2 years; all other parts 1 year |
Source: Hotronix product page (hotronix.com).
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Hotronix Dual Air Fusion ProPlace IQ Heat Press FAQ
What platen size is the Dual Air Fusion ProPlace IQ Heat Press?
Hotronix offers interchangeable platens; call DTG at 800.681.0024 to choose sizes.
Does it need an air compressor?
Yes, not included. Hotronix: minimum 1 hp, 8 gallon tank, 120 PSI; uses 3.8 CFM.
What warranty does Hotronix give?
Heating element lifetime; framework 5 years; circuit board 2 years; all other parts 1 year, per Hotronix.
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024.
