Description

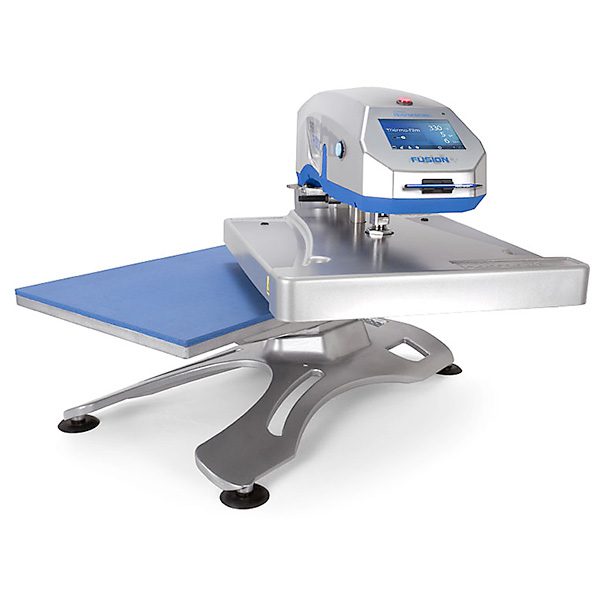

Hotronix Air Fusion IQ Heat Press, 16" x 20". Specifications and warranty below are from Hotronix.
Hotronix Air Fusion IQ Heat Press, 16" x 20" specifications
| Model | Hotronix Air Fusion IQ Heat Press, 16" x 20" |
|---|---|
| DTG item code | XRF |
| Platen size | 16" x 20" |
| Key features | Smart IQ technology; Threadability; Interchangeable platens; Auto-Adjust Pressure; Pedestal or table-top models |

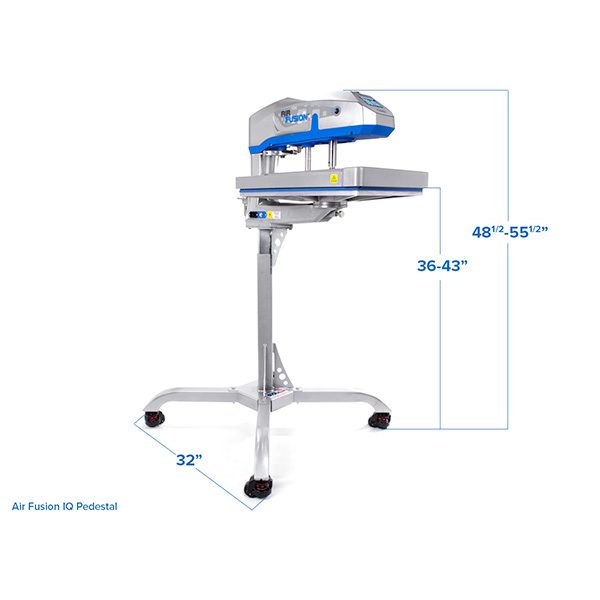

| Pedestal model | 40" x 32" x 57" (102 x 81 x 145 cm); 152 lbs (69 kg); ships 48" x 40" x 58", 245 lbs (111 kg) |
| Table-top model | 34" x 18" x 24" (86 x 46 x 61 cm); 126 lbs (57 kg); ships 37" x 24" x 24", 150 lbs (68 kg) |
| Electrical | 120 V, 15 A, 1800 W or 240 V, 7.5 A, 1800 W |
| Air compressor | Required, not included: minimum 1/2 hp, 2.5 gallon tank; uses 2.3 CFM |
| Construction | Made in the USA; cast-in tubular heating; powder-coated finish |
| Certification | Certified by SGS to UL standards; CE/RoHS approved |
| Hotronix warranty | Heating element lifetime; framework 5 years; circuit board 2 years; all other parts 1 year |
Source: Hotronix product page (hotronix.com).
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Hotronix Air Fusion IQ Heat Press, 16" x 20" FAQ
What platen size is the Air Fusion IQ Heat Press, 16" x 20"?
16" x 20", per Hotronix.
Does it need an air compressor?
Yes, not included. Hotronix: minimum 1/2 hp, 2.5 gallon tank; uses 2.3 CFM.
What warranty does Hotronix give?
Heating element lifetime; framework 5 years; circuit board 2 years; all other parts 1 year, per Hotronix.
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024.
