Description

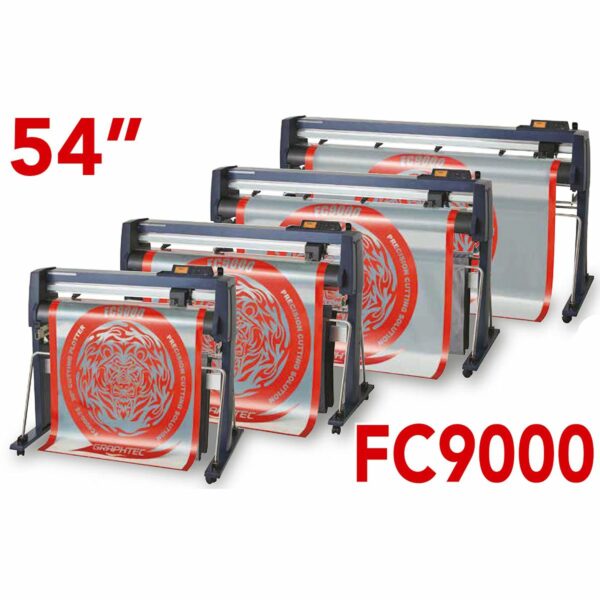

Graphtec FC9000-140 Cutting Plotter, 54" cutting width from Graphtec America. Specifications below are from Graphtec.
Graphtec FC9000-140 Cutting Plotter, 54" cutting width specifications
| Graphtec model | FC9000-140 |
|---|---|
| Max. cutting area (WxL) | 54" x 164" 1372mm x 50mm |
| Guaranteed Precision Cutting Area | 53 in x 32 ft, 35.2 in x 50 ft |
| Mountable Media Width | Min. 1.96 in, Max. 60.20 in |
| Max Cross Cut Width | 54" |
| Number of Push Rollers | 4 rollers |
| CPU | 32-bit CPU |
| Configuration | GRit rolling plotter |
| Drive Method | Digital servo drive |
| Max Cutting Speed | 58.5 inches per second (45 degree direction) 41.3 (axis direction) |
| Cutting Force | Max. 600 gf in 48 steps |
| Axial Acceleration | Max. 39.2 m/s2 (4 G) in 8 steps |
| Compatible Roll Media Diameter | Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed) |
| Mechanical Resolution | 0.005 mm |
| Programmable Resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm |
| Distance Accuracy | Max. 0.1 mm or 0.1 % of plotted length |
| Repeatability | Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media) |
| Minimum Character Size | Approx. 5 mm alphanumeric (varies depending on character font and media) |
| Mountable Number of Tools | 1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed |
| Blade Types | Supersteel (0.9 mm or 1.5 mm diameter) |
| Pen Type | Oil-based ballpoint pen |
| Pouncing Tool Type | Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12) |
| Media Types | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick |
| Compatible Paper for Pouncing | Regular paper from 0.06 to 0.13 mm thick |
| Cross-Cutting | Built into the tool carriage |
| Perforation Cutting | Supported (performed by force control) |
| Interface | USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX |
| Buffer Memory | 2 MB |
| Command Sets | GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select) |
| Condition Settings | Dual configuration (save two (2) user settings with eight (8) separate condition settings per user) |
| Display | Graphic type LCD (3.7-inch, backlight) |
| Power Source | 100 V to 240 V AC, 50 / 60 Hz |
| Power Consumption | AC100-240 V, 50/60 Hz |
| Operating Environment | 50 to 95 ºF, 35 to 75 % R.H. (non-condensing) |
| Guaranteed Accuracy Environment | 60 to 89 ºF, 35 to 70 % R.H. (non-condensing) |
| External Dimensions (WxDxH) | 73.6" x 28" x 48" 1870 x 711 x 1219 mm |
| Weight | 141 lbs., 178 lbs. /w take-up |
| Included Software | Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac |
| Compatible OS | Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura) |
| Safety | PSE, Ul/cUL, CE mark |
| EMC | VCCI class A, FCC class A, CE mark |
Source: Graphtec FC9000 product page.
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Graphtec FC9000-140 Cutting Plotter, 54" cutting width FAQ
What is the maximum cutting area?
54" x 164" 1372mm x 50mm, per Graphtec.
How fast does it cut?
58.5 inches per second (45 degree direction) 41.3 (axis direction), per Graphtec.
What is the maximum cutting force?
Max. 600 gf in 48 steps, per Graphtec.
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024 for pricing, freight and setup.
