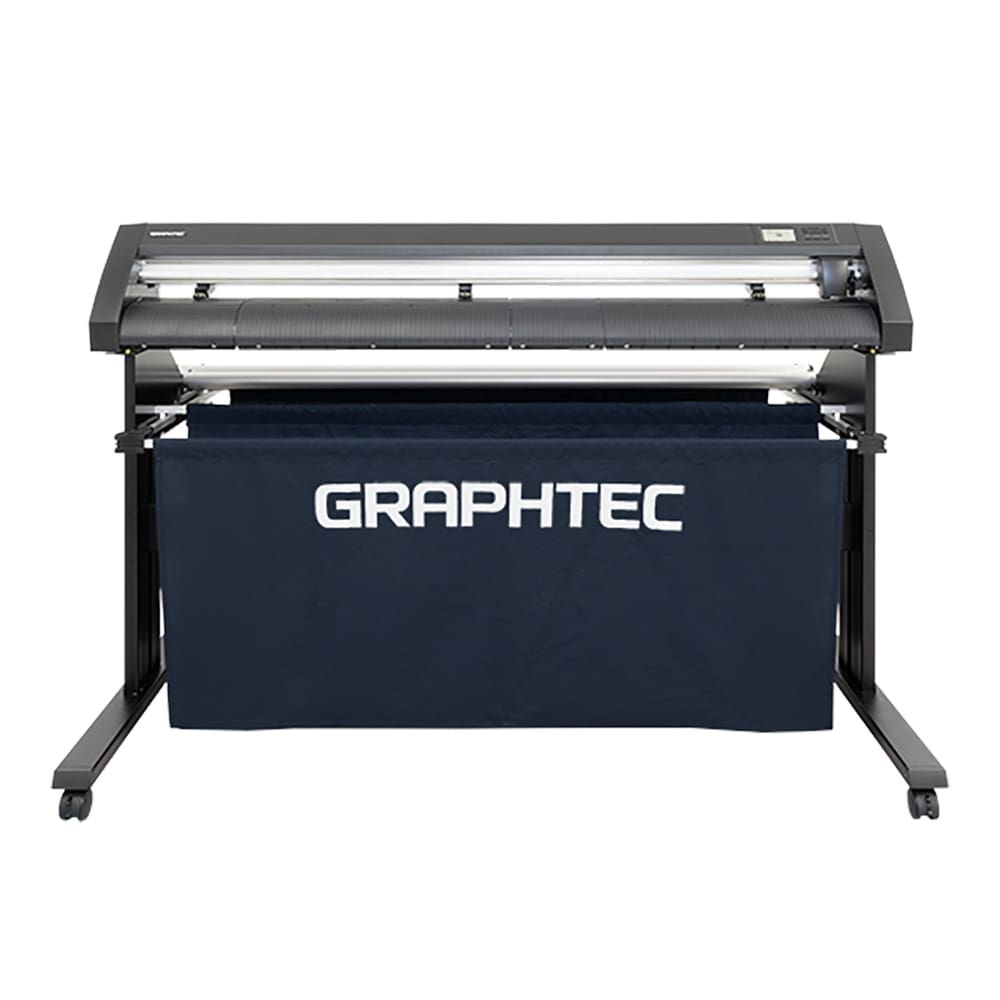

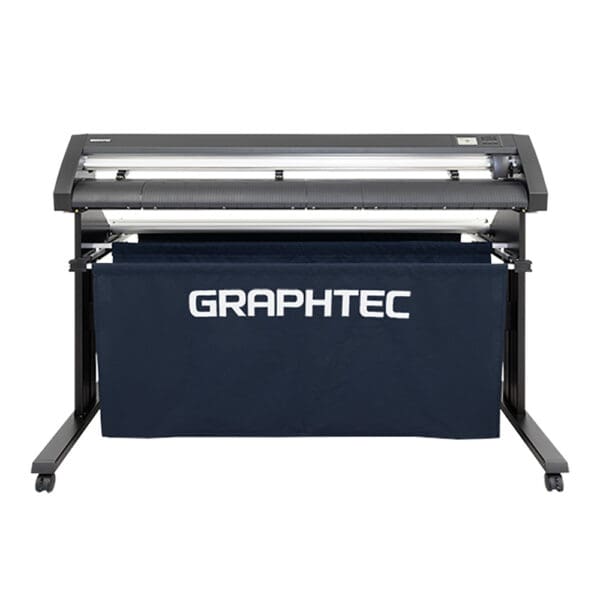

Graphtec CE8000-130 Cutting Plotter, 50" cutting width from Graphtec America. Specifications below are from Graphtec.
Graphtec CE8000-130 Cutting Plotter, 50" cutting width specifications
| Graphtec model | CE8000-130 |
|---|---|
| Configuration | Grit roller with digital servo drive system |
| Maximum Cutting Area (W x L) | 50" x 164" |
| Cutting Area of Guaranteed Accuracy | 50”×79” / 49”×16.4’ *1 / *2 |
| Mountable Media Width | 2", 54" |
| Number of Push Rollers | 3 rollers |
| Maximum Cutting Speed | 39"/s, at 45º direction |
| Maximum Acceleration | 45.60' (13.9 m/s2), at 45º direction |
| Maximum Cutting Force | 4.41 N (450 gf) |
| Minimum Character Size | Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media) |
| Programmable Resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm |
| Repeat-ability | Max. 0.1 mm in plot up to 2 m (*1) |
| Mountable Number of Tools | 1 tool |
| Blade Type | Supersteel |
| Pen Type | Oil-based ballpoint, water-based fiber-tip pen |
| Media Type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material |
| Interface | USB 2.0 (Full Speed) • Ethernet 10 BASE-T/100 BASE-TX • (OPTIONAL) Wireless LAN IEEE 802.11b/g/n*5 |
| Buffer Memory | 2 MB |
| Command Sets | GP-GL / HP-GL™ (Set by command or auto-detect) |
| Display | Touch Panel Screen (240-dot x 128-dot), supports 10 languages |
| Registration Mark Sensing System | Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection |
| Alignment Accuracy | Maximum 0.3 mm with printed image (when reading specified registration marks) |
| Power Source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz |
| Power Consumption | 120 VA |
| Operating Environment | 10 to 35ºC, 35 to 75% R.H. (non-condensing) |
| Guaranteed Accuracy Environment | 16 to 32ºC, 35 to 70% R.H. (non-condensing) |
| External Dimensions (W x D x H) | Approx. 65" x 32" x 42.3" |
| Weight (Approx.) | 106 lbs (40kg) |
| Compatible OS | Windows 11 /10 / 8.1 / 64-bit editions, Mac OS 10.2 (Sierra) to 13 (Ventura) |
| Included Software (Download) | Graphtec Studio 2, Cutting Master 5 for Windows, and Mac |
| Compatibility Standard Safety | PSL, UL/cUL, CE mark |
| Compatibility Standard EMC | VCCI Class A, FCC Class A, CE mark |
Source: Graphtec CE8000 product page.
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Graphtec CE8000-130 Cutting Plotter, 50" cutting width FAQ
What is the maximum cutting area?
50" x 164", per Graphtec.
How fast does it cut?
39"/s, at 45º direction, per Graphtec.
What is the maximum cutting force?
4.41 N (450 gf), per Graphtec.
