Description

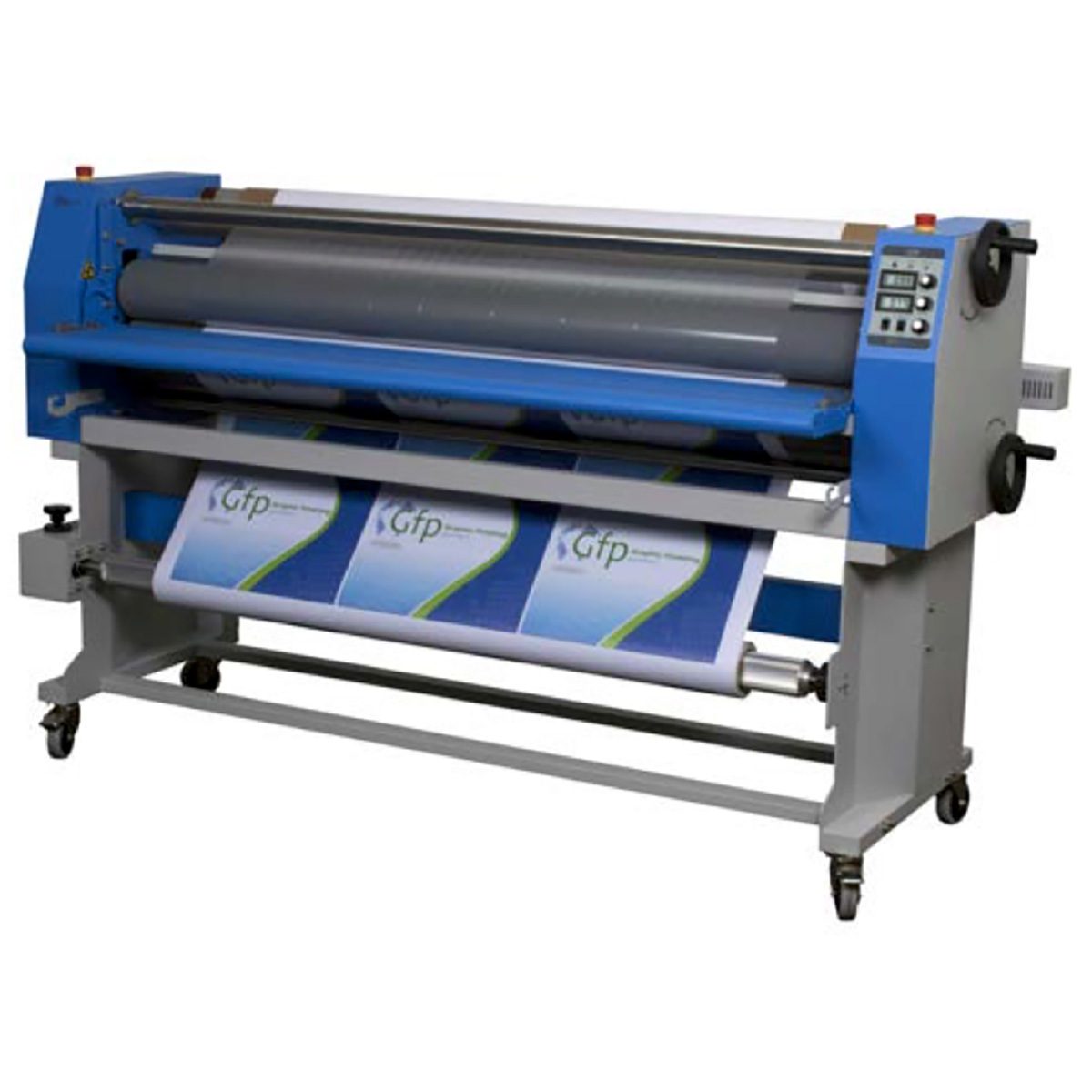

Gfp 865DH-4RS Dual-Heat Laminator, 63" is a 63" dual-heat (thermal and pressure-sensitive) roll laminator from Graphic Finishing Partners (Gfp) of Maryland Heights, Missouri. It is built for signs and posters, POP and trade show displays, dry-erase boards, graphic and photo mounting, floor and window graphics, and vehicle graphics.
Key features
- Thermal encapsulation with low-melt films (1.5–10 mil)
- Handles both pressure-sensitive and thermal lamination and mounting
- Labor-saving swing-out supply shafts and drop-in Quick Grip rewind shafts
- Independent top and bottom heaters
- Web clutch adjustment for consistent output quality
- Rear rewind with inline rotary slitters for roll-to-roll work (slitters are not for use with thermal films)
- Swing-up feed table with 38” input height and photoelectric safety eye
- Two-year parts and labor warranty from Gfp
Included: stand with casters, foot pedal, rear rewind motor and tube, and rear rewind with rotary slitters; Gfp installation and training is included in the contiguous US (a forklift is required on site).
Gfp 865DH-4RS Dual-Heat Laminator, 63" specifications
| Gfp model | 865DH-4RS |
|---|---|
| Laminating Width | 63” |
| Roller Diameter | 5” |
| Maximum Speed (ft/min) | 13 ft/min |
| Main Roller | Silicone |
| Maximum Roller Gap | 1” |
| Roller Gap Adjustment | Dual Hand Crank |
| Unwinds | Top/bottom |
| Liner Rewind | Chain Drive |
| Supply Shafts | 3 (Two Swing-Out 3” Quick Grip) |
| Tension Adjustment | Single Knob |
| Maximum Supply Roll Diameter | 8” Top/16” Bottom |
| Swing-Out Shaft Maximum Weight | 115 lbs |
| Maximum Temperature | 266ºF |
| Heating Element | Quartz Heater |
| Roller Heating | Top & Bottom |
| Thermal Film Thickness | 1.5 – 10mil |
| Power Requirements | 240V Single Phase 24A |
| Power Consumption | 5760W |
| Rear Rewind With Slitters | Included |
| Foot Pedal | Included |
| Stand With Casters | Included |
| Machine Dimensions (L x W x H) | 87”x 34”x 49” |
| Net Weight With Stand | 846 lbs |
Spec sheet
Download the official Gfp 865DH-4RS spec sheet (PDF). Shipping dimensions and weight from Gfp: 89” x 40” x 56”, 1,143 lb.
Gfp 865DH-4RS videos
More official Gfp videos:
- Thermal Encapsulation with the Gfp 865DH Laminator
- Gfp YouTube channel (all laminator tutorials and applications)
Source: Gfp 865DH-4RS product page and Gfp data sheet (REV 02/2026).
Need help choosing a laminator, films or installation? Call a DTG finishing specialist at 800.681.0024 or email info@dtgweb.com.
Gfp 865DH-4RS Dual-Heat Laminator, 63" FAQ
What is the maximum laminating width of the Gfp 865DH-4RS?
63", per the Gfp data sheet.
Does the Gfp 865DH-4RS use heat?
Yes. Independent top and bottom quartz heaters reach a maximum of 266ºF, so it runs low-melt thermal films from 1.5 to 10 mil as well as pressure-sensitive films.
What power does the Gfp 865DH-4RS need?
240V single phase, 24A (5760W), per Gfp.
How fast does the Gfp 865DH-4RS run?
Up to 13 ft/min, per the Gfp data sheet.
What is included with the Gfp 865DH-4RS?
Stand with casters, foot pedal, rear rewind motor and tube, and rear rewind with rotary slitters; Gfp installation and training is included in the contiguous US (a forklift is required on site). Gfp covers the laminator with a two-year parts and labor warranty.
