Description

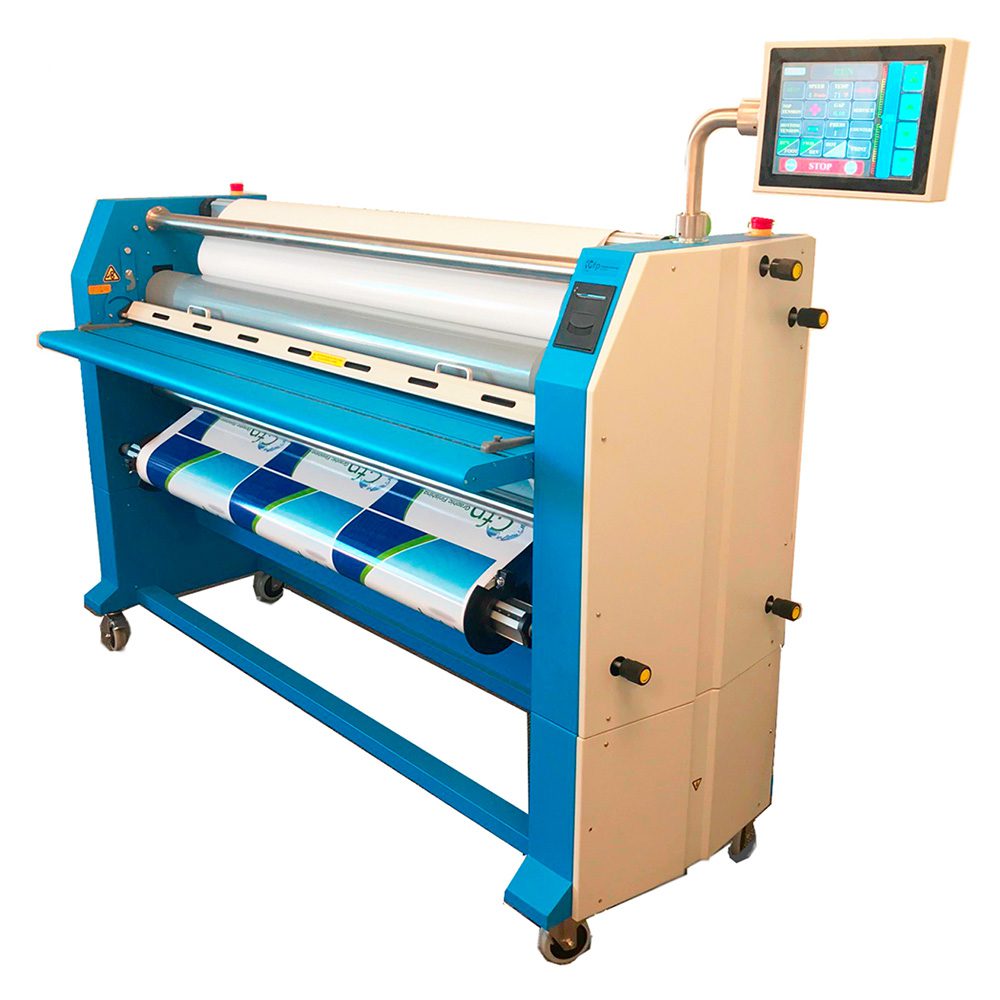

Gfp 663TH Production Top-Heat Laminator, 63" is a 63" production top-heat roll laminator with Smart Finishing Technology from Graphic Finishing Partners (Gfp) of Maryland Heights, Missouri. It is built for mid- to high-production shops finishing UV, latex, eco-solvent and gel ink output: roll-to-roll overlamination, mounting, board pre-coating and cut sheets.
Key features
- Touchscreen user interface with 10” tablet-style display and onboard help tutorials
- Presets for temperature, speed and pressure for roll-to-roll and sheet feeding
- Electronic (servo motor) roller gap and pressure control for repeatable setups
- Swing-out unwind and rewind shafts for faster film changes
- Inline rotary side slitters and integrated motorized rear rewind
- Top roller heat assist to improve adhesion and reduce silvering
- Roll label printer and film usage counter for partial-roll tracking
- Two-year parts and labor warranty from Gfp
Included: stand with casters, foot pedal, integrated motorized rear rewind with inline rotary slitters, and swing-out shafts.
Gfp 663TH Production Top-Heat Laminator, 63" specifications
| Gfp model | 663TH |
|---|---|
| Laminating Width | 63” |
| Roller Diameter | 4.5” |
| Maximum Speed (ft/min) | 20 ft/min |
| Main Roller | Silicone |
| Maximum Roller Gap | 1” |
| Roller Gap Adjustment | Electric Motor |
| Unwinds | Top/bottom |
| Liner Rewind | Chain Drive |
| Supply Shafts | Two Swing-Out 3” Quick Grip |
| Tension Adjustment | Single Knob |
| Maximum Supply Roll Diameter | 8” Top/16” Bottom |
| Swing-Out Shaft Maximum Weight | 115 lbs |
| Maximum Temperature | 140ºF |
| Heating Element | Metal Alloy Heater |
| Power Requirements | 120V 12A |
| Power Consumption | 1440W |
| Rear Rewind With Slitters | Integrated |
| Foot Pedal | Included |
| Stand With Casters | Included |
| Machine Dimensions (L x W x H) | 83”x 31”x 63” |
| Net Weight With Stand | 657 lbs |
| Shipping Dimensions (L x W x H) | 90”x 35”x 59” (986 lbs) |
Spec sheet
Download the official Gfp 663TH spec sheet (PDF). Shipping dimensions and weight from Gfp: 90” x 35” x 59”, 925 lb (Gfp price list) / 986 lb (Gfp data sheet).
Gfp 663TH videos
More official Gfp videos:
- Gfp 663TH Features Overview
- Gfp 663TH Applications – Roll to Roll
- Gfp YouTube channel (all laminator tutorials and applications)
Source: Gfp 663TH product page and Gfp data sheet (REV 02/2026).
Need help choosing a laminator, films or installation? Call a DTG finishing specialist at 800.681.0024 or email info@dtgweb.com.
Gfp 663TH Production Top-Heat Laminator, 63" FAQ
What is the maximum laminating width of the Gfp 663TH?
63", per the Gfp data sheet.
Does the Gfp 663TH use heat?
It has top heat assist only. The metal alloy heater reaches a maximum of 140ºF to soften film adhesive and reduce silvering. For thermal (heat-activated) films, the Gfp dual-heat model is the 865DH-4RS.
What power does the Gfp 663TH need?
120V, 12A (1440W), per Gfp.
How fast does the Gfp 663TH run?
Up to 20 ft/min, per the Gfp data sheet.
What is included with the Gfp 663TH?
Stand with casters, foot pedal, integrated motorized rear rewind with inline rotary slitters, and swing-out shafts. Gfp covers the laminator with a two-year parts and labor warranty.
Where can I buy the Gfp 663TH?
From DTG (Digital Technology Group) in Tampa, Florida. Call 800.681.0024 for freight, installation and training.
